Product Features

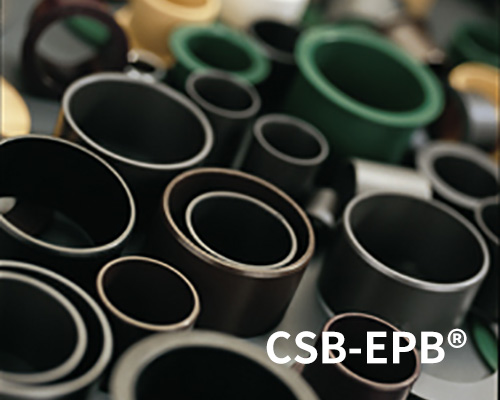

CSB® plastic bearings are highly wear-resistant plastic bushings, flange bearings and thrust washers made of composite materials. The working temperature CSB-EPB® plastic bearings up to 250 °C, and its excellent wear resistance and high cost performance are the preferred bearings for design engineers.

EPB Plastic plain bearings

The most common CSB plastic bearing material. It is suitbale for the applications with working temperature not higher than 80℃. It is the prefereable material with good wear resistance and economic efficient for...

Details

EPB1 Plastic plain bearings

This material is with low water absorb characteristic and high load capacity. It is widely used for the humidity condition and wear resistance requirement. The embedded special metal powder enables this...

Details

EPB2 Plastic plain bearings

The solution of middle to low load application and economic effective requirement. It is also one of the low water absorbing materials.

Details

EPB3 Plastic plain bearings

Best for middle to high load applications. With the perfect combination of reinforced fibre and good lubrication feature, this material is suitbale to be used under the temperature of 130℃.

Details

EPB6 Plastic plain bearings

It is a wear resistance material for working temperature lower than 80℃. The application is for the condition where the shaft hardness is not critical. The white color of the material is also commonly used...

Details

EPB7 Plastic plain bearings

A material with low friction factor and good wear resistance. The outstanding wear resistance feature of it ensures the applications where the other plastic bearings are not suitable. It is good for both hard...

Details

EPB13 Plastic plain bearings

Low friction and high wear resistance. It could maintain a good stable wear resistance and friction factor for the rotation, linear and oscilation movement. It has no critical hardness requirement to the shaft.

Details

EPB15 Plastic plain bearings

Good wear resistance and with low hardness and roughness requirement for the shaft material. The wear resistance of the material will not be weekend even under the dust environment.

Details

EPB19 Plastic plain bearings

Wear resistance material for temperature up to 150 ℃. The Features of the material is kept stable either at high or low temperature.

Details

EPB23 Plastic plain bearings

High temperature and wear resistance material comforms to FDA regulation. It is suitable for the food machinery where the food is directly contacted with the material under the high temperature of 180℃.

Details

EPB25 Plastic plain bearings

Good wear resistance material under high temperature of 180℃. Better wear resistance for the rotation application and it has no critical requirement about the shaft hardness.

Details

EPB5Z Plastic plain bearings

It is a high load material with excellent low friction factor. Marginal load application is acceptable and it is with good wear resistance both for hard and soft shafts.

Details

EPB4 Plastic plain bearings

High temperature material with good chemical resistance feature. It could be continously used under the temperature of 200 ℃, it is also suitable to be used in the humid environment and even inside the chemical...

Details

EPB8 Plastic plain bearings

A special material for the application in water. The wear resistance could even be improved in water. It is able to be continously operated in a chemical liquid with temperature of 200 ℃.

Details

EPB21 Plastic plain bearings

Low friction and good wear resistance for high temperature applications. The excellent chemical resistance of the material ensures athe applications for high temperature and high chemical erosion applications.

Details

EPB24 Plastic plain bearings

Standard material for automotive industrial. Best and economic material for high temperature application. Excellent wear resistance is available in the vehicle fuels.

Details

EPB26 Plastic plain bearings

For soft shafts,

Excellent wear resistance ,

Operation temperatures up to +200 ℃,

Good resistance to chemicals.

Details

EPB5Z Plastic plain bearings

It is a high load material with excellent low friction factor. Marginal load application is acceptable and it is with good wear resistance both for hard and soft shafts.

Details

EPB10 Plastic plain bearings

It is a material with good high temperature upto 250 ℃, high chemical resistance and high load application. It is suitable for the applications in water or most of chemical liquids.

Details

EPB5 Plastic plain bearings

Self-lubricated material for high temperature up to 250 ℃. With its high chemical resistance feature, it coul be used inside most common chemical liquids. It is a high load material for the applications of high temperature...

Details

EPB1 Plastic plain bearings

This material is with low water absorb characteristic and high load capacity. It is widely used for the humidity condition and wear resistance requirement. The embedded special metal powder enables this material...

Details

EPB2 Plastic plain bearings

The solution of middle to low load application and economic effective requirement. It is also one of the low water absorbing materials.

Details

EPB4 Plastic plain bearings

High temperature material with good chemical resistance feature. It could be continously used under the temperature of 200 ℃, it is also suitable to be used in the humid environment and even inside the chemical...

Details

EPB18 Plastic plain bearings

A self-lubricating material with low water absorbtion. Good wear resistance will be maintained when used with soft shaft and hard shaft combined. Continuous working temperature: -40℃/+100℃

Details

EPB16 Plastic plain bearings

Wear resistance material with high strength and low water absorbtion feature. The dimensions will be remain stable even in humidity environment. Continuous working temperature: -40℃/+130℃

Details

EPB21 Plastic plain bearings

Low friction and good wear resistance for high temperature applications. The excellent chemical resistance of the material ensures athe applications for high temperature and high chemical erosion applications.

Details

EPB26 Plastic plain bearings

For soft shafts,

Excellent wear resistance ,

Operation temperatures up to +200 ℃,

Good resistance to chemicals.

Details

EPB8 Plastic plain bearings

A special material for the application in water. The wear resistance could even be improved in water. It is able to be continously operated in a chemical liquid with temperature of 200 ℃.

Details

EPB20 Plastic plain bearings

A self-lubricating material for applications in water. It is suitable for high speed motion under low load. Continuous working temperature: -50℃/+90℃. Suitable for medium load operation...

Details

EPB10 Plastic plain bearings

It is a material with good high temperature upto 250 ℃, high chemical resistance and high load application. It is suitable for the applications in water or most of chemical liquids.

Details

EPB25 Plastic plain bearings

Good wear resistance material under high temperature of 180℃. Better wear resistance for the rotation application and it has no critical requirement about the shaft hardness.

Details

EPB12 Plastic plain bearings

Good wear resistance material suitable for high load and oscilation motions. It is an economic solution for high load applications. Continuous working temperature: -40℃/+135℃. Suitable for high load operation...

Details

EPB22 Plastic plain bearings

Good wear resistance under extremely high load condition. It is suitable for the applications that the other CSB plastic bearing materials are not working properly with the extremely high load and oscillation motion...

Details

EPB4 Plastic plain bearings

High temperature material with good chemical resistance feature. It could be continously used under the temperature of 200 ℃, it is also suitable to be used in the humid environment and even inside the chemical...

Details

EPB5 Plastic plain bearings

Self-lubricated material for high temperature up to 250 ℃. With its high chemical resistance feature, it coul be used inside most common chemical liquids. It is a high load material for the applications of high temperature...

Details

EPB5Z Plastic plain bearings

It is a high load material with excellent low friction factor. Marginal load application is acceptable and it is with good wear resistance both for hard and soft shafts.

Details

EPB8 Plastic plain bearings

A special material for the application in water. The wear resistance could even be improved in water. It is able to be continously operated in a chemical liquid with temperature of 200 ℃.

Details

EPB10 Plastic plain bearings

It is a material with good high temperature upto 250 ℃, high chemical resistance and high load application. It is suitable for the applications in water or most of chemical liquids.

Details

EPB21 Plastic plain bearings

Low friction and good wear resistance for high temperature applications. The excellent chemical resistance of the material ensures athe applications for high temperature and high chemical erosion applications.

Details

EPB24 Plastic plain bearings

Standard material for automotive industrial. Best and economic material for high temperature application. Excellent wear resistance is available in the vehicle fuels.

Details

EPB26 Plastic plain bearings

For soft shafts,

Excellent wear resistance ,

Operation temperatures up to +200 ℃,

Good resistance to chemicals.

Details

EPB9 Plastic plain bearings

Self-lubricated material with good elctricity conductivity. Mainly used with the high load and electricity conductive evironment. Continuous working temperature: -40℃/+140℃. Specially use for static electricity existing...

Details

EPB20 Plastic plain bearings

A self-lubricating material for applications in water. It is suitable for high speed motion under low load. Continuous working temperature: -50℃/+90℃. Suitable for medium load operation...

Details

EPB5A Plastic plain bearings

Continuous working temperature: -100℃/+250℃. Suitable for high load and lovo speed operation. High load capacity at higher temperature. Good chemical resistance. FDA grade.

Details

EPB6A Plastic plain bearings

It is a PTFE and Silicon free material widely used in the food and packing machineries. Continuous working temperature: -40℃/+80℃. No special requirement on the surface roughness. Low friction coefficient. Applicable...

Details

EPB6 Plastic plain bearings

It is a wear resistance material for working temperature lower than 80℃. The application is for the condition where the shaft hardness is not critical. The white color of the material is also commonly used...

Details

EPB11 Plastic plain bearings

Wear resistance material with low friction factor without PTFE and Silicon. It comforms to the FDA standard and could be contacted with food directly. It is suitable for the applications in water or with the temperature...

Details

EPB23 Plastic plain bearings

High temperature and wear resistance material comforms to FDA regulation. It is suitable for the food machinery where the food is directly contacted with the material under the high temperature of 180℃.

Details

EPBH Plastic plain bearings

This material is developed against the requirement of wear resistance and economic cost for cost effective and big quantity comsuming applications. Continuous working temperature: -40℃/+80℃. Suitable for most...

Details

EPB2D Plastic plain bearings

The combination of middle to low load and low speed application requirement. It is a material without PTFE embedded for the low cost and big quantity demanding. Continuous working temperature: -40℃/+80℃

Details

EPB3G Plastic plain bearings

Optimized for middle load applications. It is suitable for low frequency motion and low cost requirement. Continuous working temperature: -40℃/+100℃. High load capacity. Good economic ratio. Dry operation and...

Details

EPB3M Plastic plain bearings

An excellent self-lubricated material suitable for impact resistance applications which is widedly used under the evironment of impact absorbing and weare resistance requirement...

Details

EPB24 Plastic plain bearings

Standard material for automotive industrial. Best and economic material for high temperature application. Excellent wear resistance is available in the vehicle fuels.

Details

▊Bearing load

■ Load capacity calculation

■ Speed calculation

▊PV value

PV is the product of the specific bearing load P and the sliding speed V. It is a very important design data for the bearing application. The PV value is inverse proportional to the bearing service life (Graph 12). So it is recommended to consider a lower design PV value during the bearing selection.

■ Correction factor y₁ for intermittent operation

Commonly the bearings are not continuously running during most of the applications. The short time operation period (less than 10 minutes) does not allow the bearing reach the highest limited operation temperature so that the limited PV value will increase because during the stop period, the heat generated by the friction will be reduced. Graph 13 shows the intermittent operation correction factor y₁ for different stop and operate period.

■ Correction factor y₂ for lubricating operation

Although CSB-EPB® plastic bearings are normally designed for the dry operation, it has good the general lubricant such as oil or grease. The initial oil or grease lubricating will improve the starting performance of the bearings and therefore achieves a shorter run-in time. At the same time, the using of lubricants considerably improves the loading capability of the bearings because the lubricants will reduce the temperature increasing during the operation so that the loading capability of the bearings is improved. Graph 14 shows the PV correction factor y₂ for different lubricants are used.

Bearing installation

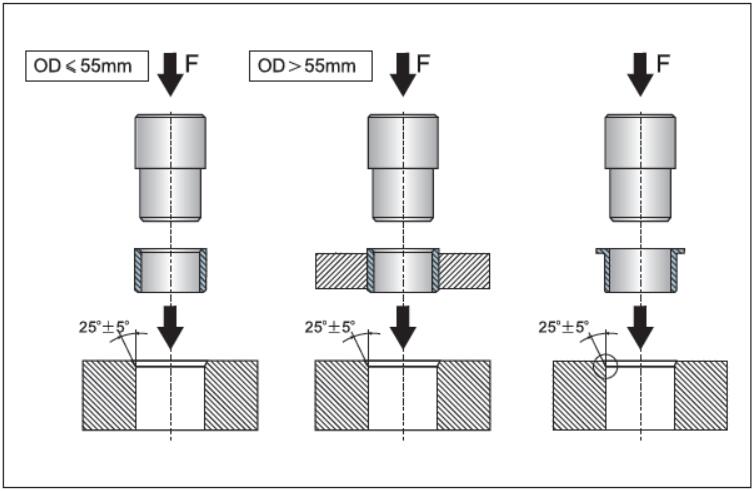

▊Housing: The bearing housing and the fitting tools must be kept clean during the assembling. A chamfer of 25。on the housing should be ensured for an easy assembling. A stepped press pin is recommended to be used for the assembling. The inner diameter of the CSB-EPB® plastic bearings is measured after the bushing is fitted into the H7 housing. CSB-EPB®塑料轴承安装方法

▊Shaft: There is no critical requirement for the shaft material but chrome plated shaft is recommended for better operation. Rounded chamfer is required on the shaft for easy assembling. CSB recommend the shaft roughness to be in the range of Ra0.2~Ra0.8. Please refer to Graph 15 for the relation between the surface roughness and bearing friction coefficient (Graph:19).

CSB-EPB® plastic bearings are designed according to ISO 3547 Standard (Graph 18). Although the CSB-EPB® plastic bearings are designed for self-lubricating purpose, but the initial lubricating helps the assembling and the future operation of the bearings.

CSB-EPB® Plastic plain bearings tolerance

Diameter d [mm]	Tolerance after being assembled [mm]			Housing H7 [mm]	Shaft h9 [mm]
Diameter d [mm]	E10	F10	D11	Housing H7 [mm]	Shaft h9 [mm]
>0～3	+0.014～+0.054	+0.006～+0.046	+0.020～+0.080	0～+0.010	0～-0.025
>3～6	+0.020～+0.068	+0.010～+0.058	+0.030～+0.105	0～+0.012	0～-0.030
>6～10	+0.025～+0.083	+0.013～+0.071	+0.040～+0.130	0～+0.015	0～-0.036
>10～18	+0.032～+0.102	+0.016～+0.086	+0.050～+0.160	0～+0.018	0～-0.043
>18～30	+0.040～+0.124	+0.020～+0.104	+0.065～+0.195	0～+0.021	0～-0.052
>30～50	+0.050～+0.150	+0.025～+0.125	+0.080～+0.240	0～+0.025	0～-0.062
>50～80	+0.060～+0.180	+0.030～+0.150	+0.100～+0.290	0～+0.030	0～-0.074
>80～120	+0.072～+0.212	+0.036～+0.176	+0.120～+0.340	0～+0.035	0～-0.087
>120～180	+0.085～+0.245	+0.043～+0.203	+0.145～+0.395	0～+0.040	0～-0.100

▊Adhesive agent: CSB-EPB® plastic bearings assembly generally needn't use glue, in case the glue is necessary, please consider the used glue can also work properly at the required temperature. Relative testing is recommended in this case.

Medium	bearings resistance
Alcohol	Find on the detail page
Hydrocarbons	Find on the detail page
Greases. oils	Find on the detail page
Fuels	Find on the detail page
Diluted acids	Find on the detail page
Strong acids	Find on the detail page
Diluted alkalis	Find on the detail page
Strong alkalis	Find on the detail page

CSB® Bearing Material Chemical Resistance

Please select bearing material and medium...

CSB® bearing material chemical resistance data is a comparison test result of the CSB chemistry laboratory using laboratory specimens or similar chemicals at room temperature 23 ℃, without considering the impact of other temperatures and chemical medium mixtures on the chemical resistance of CSB® bearing materials ; Therefore, this data can only act as a reference. CSB® recommends that the chemical resistance of actual parts should be tested under application conditions and verify the suitability of the bearings.

CSB-EPB® Plastic Plain Bearings 5953

Time 09-2021

Type PDF

No. CSB/CAT.062E

Size 3.38MB

5953

download

CSB-EPB®

Plain bearings finder v2.1

view tools

CSB-EPB® Plain bearings finder V2.1

▊CSB-EPB® Plastic Bearings Finder[V2.1] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations material data by entering parameters such as bearing load, speed, and temperature, and finally output material adaptation data.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the bearing must be tested again to verify whether it meets the actual use requirements.
▊CSB-EPB® Plastic Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.

Use Tools
