▊Technical data
| Material | Dry friction coefficient [u] | Max. static load [Mpa] | Max. dynamic load [Mpa] | Max. PV [N/mm2xm/s] | Max. Speed [m/s] | Operation temperature* [℃] | ||
| Continuous | Intermittent | Long-term | Short-term | |||||
| TRIBOTAPER® 11 | 0.05-0.15 | 15 | 5 | 0.25 | 0.3 | 0.5 | -20/+80 | -50/+100 |
| TRIBOTAPER® 17 | 0.05-0.12 | 12 | 6 | 0.40 | 1.0 | 2.0 | -20/+120 | -50/+180 |
| TRIBOTAPER® 70 | 0.10-0.25 | 30 | 13 | 0.30 | 0.3 | 0.5 | -20/+90 | -50/+120 |
| TRIBOTAPER® 81 | 0.05-0.15 | 15 | 5 | 0.25 | 0.3 | 0.5 | -20/+80 | -50/+100 |
*Operation temperature of standard tape with adhesive back
Please contact us for the operation temperature of the tape without adhesive back

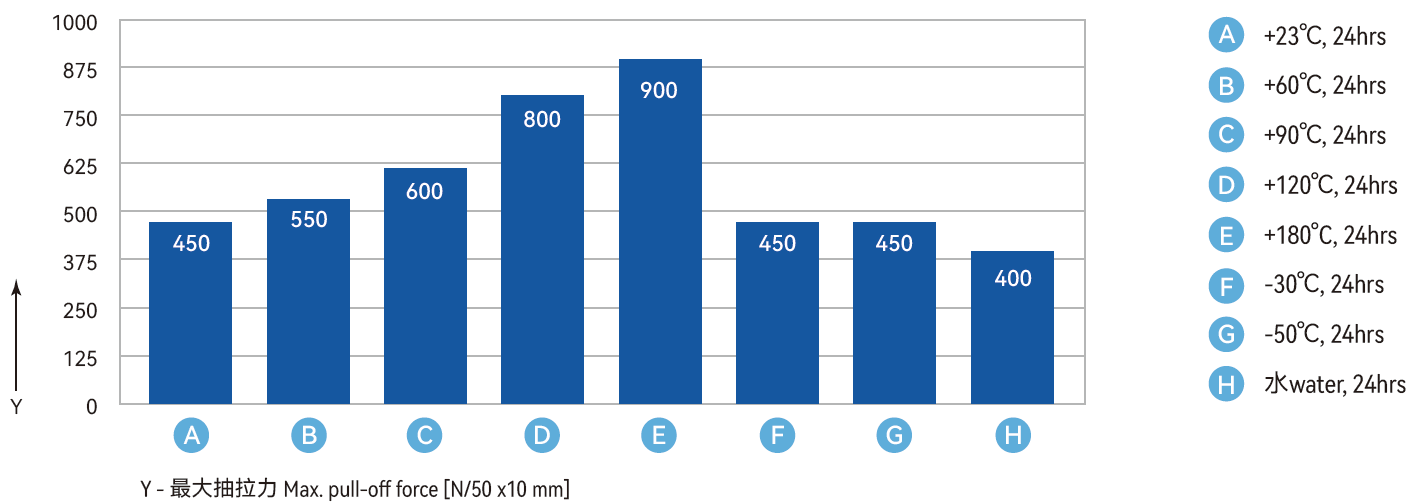

▊Adhesion strength
180°pull-off test after various exposure conditions
*Note：
The test data is based on typical values measured at 23°C after TRIBOTAPE® was bonded to SPCC Ra0.8 steel plates and exposed to various conditions. This is not a maximum or minimum value. The adhesion strength of TRIBOTAPE® anti-wear tapes will decrease over time or with alternating changes in the use environment; CSB is not liable for the defects of an adhesive system based on anti-wear tapes.
