Product Features

● Good wear resistance and with low hardness and roughness requirement for the shaft material. The wear resistance of the material will not be weekend even under the dust environment

● Continuous working temperature: -40℃/+90℃

● Maintenance-free dry operation

● Small wear off amount against various shaft materials

● Lower friction

● Low water absorption

Material properties	Standard	Unit	CSB-EPB15
General properties
Color	-	-	Yellow
Density	ISO1183	g/cm³	1.30
Max. moisture absorption, 50%RH	ISO62	%	1.3
Max. water absorption	ISO62	%	6.5
Coefficient of sliding friction(steel)	ITS025	µ	0.05-0.15
Max. PV value	ITS026	N/mm²×m/s	0.90
Mechanical properties
Flexural modulus	ISO178	MPa	4000
Flexural strength	ISO178	MPa	130
Max. static load	ITS027	MPa	70
Max. dynamic load	ITS028	MPa	35
Shore hardness	ISO868	D	79
Physical and thermal properties
Long-term application temperature	ITS029	℃	+90
Short-term application temperature	ITS029	℃	+180
Lowest application temperature	ITS029	℃	-40
Thermal conductivity	ISO22007	W/m/K	0.24
Coefficient of thermal expansion	ISO11359	K^-1×10^-5	8
Flammability	UL94	Class	HB
Electrical properties
Volume resistance	IEC60093	Ω·cm	>10¹³
Surface resistance	IEC60093	Ω	>10¹²

*ITS: CSB company's internal test standards. **Test temperatures are 23℃ unless otherwise stated.

Sleeve bearing

Flange bearing

Thrust washer

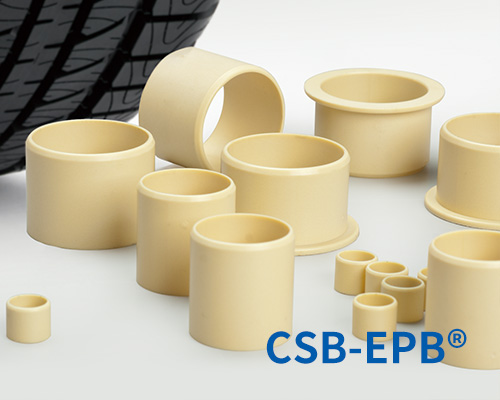

EPB15 Plastic plain bearings

Part no.:

d1 [mm]：

d2 [mm]：

L_h13 [mm]：

d3_d13 [mm]：

T [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2-max. [mm]：

d2-min. [mm]：

T max. tolerance [mm]：

T min. tolerance [mm]：

Max. shaft [mm]：

Min. shaft [mm]：

Max. housing [mm]：

Min. housing [mm]：

*Lead time [wsk]：

Download CAD

Cart

Shopping

Dimensions

▊ PV value

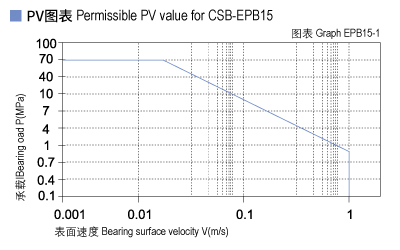

The max PV value of the CSB-EPB15 plastic bearings is 0.9N/mm²×m/s which determines the load capacity of bearing is inversely proportional to the speed. Please refer to the chart for more detailed information (Graph EPB15-1).

EPB15_01-Plastic plain bearings PV value.jpg

▊ Load, speed and temperature

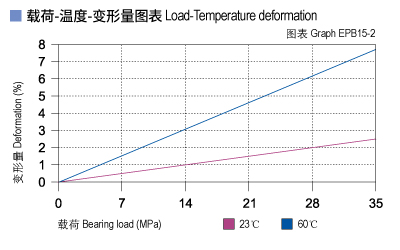

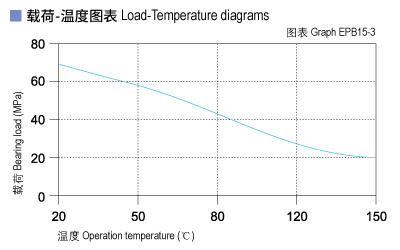

CSB-EPB15 allows the Max static load of 70Mpa, The max compressive deformation rate under the max load is listed in Graph EPB15-2, The actual load capacity of bearing is slightly less than 70Mpa, The bearing load is variable against the speed and temperature, Fast speed (Vmax: 1.0m/s) results into higher temperature (Tmax: 90℃) which decreases the load capacity of the bearing. Please refer to the Graph EPB15-3 for such variation.

EPB15_02-Plastic plain bearings load.jpg EPB15_03-Plastic plain bearings load and tepmerature.jpg

▊ Friction factor, wear and shaft material

▊ Friction factor

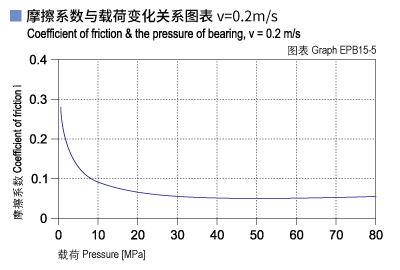

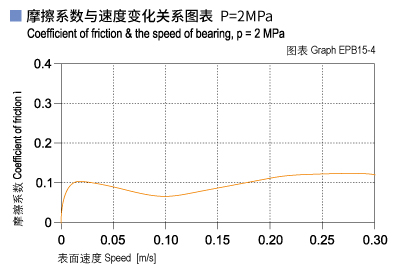

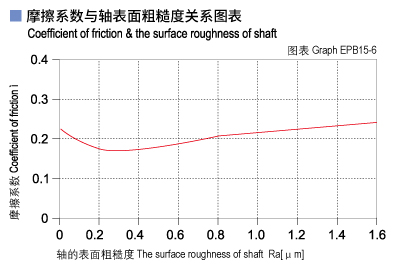

Graph EPB15-4 shows that the friction factor of CSB-EPB15 is not sensitive to the operation speed and Graph EPB15-5 shows that the friction factor is CSB-EPB15 is decreased along with the loading increasing and become stable when the loading is over 20Mpa. Graph EPB15-6 tells that the friction factor of CSB-EPB15 is also not sensitive to the shaft roughness but we still recommend the shaft roughness to be Ra0.3~0.6.

CSB-EPB15	Dry	Grease	Oil	Water
Friction coef. μ	0.05~0.15	0.09	0.04	0.04

EPB15_04-Plastic plain bearings friction and speed.jpg EPB15_05-Plastic plain bearings friction and load.jpg EPB15_06-Plastic plain bearings friction and surface roughness of shaft.jpg

▊ Wearing and shaft material

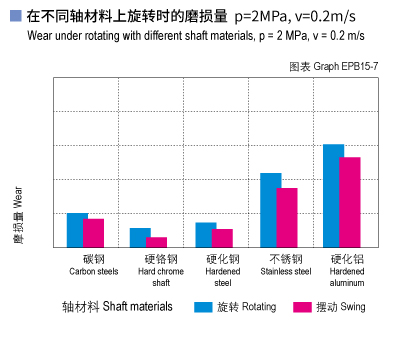

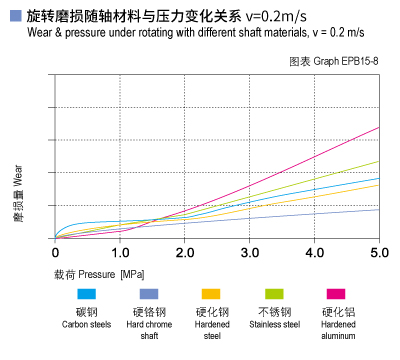

Graph EPB15-7 shows that the wearing of CSB-EPB15 is sensitive to different materials under rotation operation with the loading of 2Mpa. It is suitable for hardened shaft, high speed steel shaft and hardened chrome steel shaft in the rotation operation. Hardened chrome steel shaft is the best choice for CSB-EPB15 (Graph EPB15-8). The wearing will be decreased as long as the loading increasing.

EPB15_07-Plastic plain bearings wear and shaft materials.jpg EPB15_08-Plastic plain bearings wear and load.jpg

▊ Chemical resistance

CSB-EPB15 is good at chemical resistance against weak acidic medium and various kinds of lubricants.

▊ Water absorption

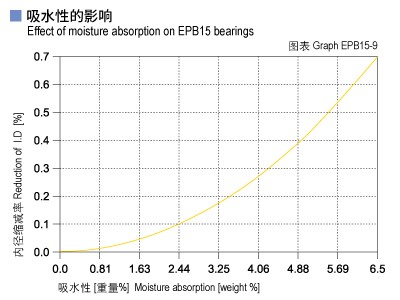

The moisture absorption of CSB-EPB15 plastic plain bearings is 1.3% in standard atmosphere. The max. water absorption is 6.5% in water. The application environment has to be considered due to the high water absorbtion properties.

EPB15_09-Plastic plain bearings moisture absorption.jpg

▊ UV resistance

CSB-EPB15 can maintain its color unchanged when it is exposed into the UV ray. The material performance stays stable.

▊ Installation tolerances

CSB-EPB15 bushing tolerances after pressfit

Diameter [mm]	Inner diameter E10 [mm]	Housing H7 [mm]	Shaft h9 [mm]
>0～3	+0.014～+0.054	0～+0.010	0～-0.025
>3～6	+0.020～+0.068	0～+0.012	0～-0.030
>6～10	+0.025～+0.083	0～+0.015	0～-0.036
>10～18	+0.032～+0.102	0～+0.018	0～-0.043
>18～30	+0.040～+0.124	0～+0.021	0～-0.052
>30～50	+0.050～+0.150	0～+0.025	0～-0.062
>50～80	+0.060～+0.180	0～+0.030	0～-0.074
>80～120	+0.072～+0.212	0～+0.035	0～-0.087
>120～180	+0.085～+0.245	0～+0.040	0～-0.100

Medium	EPB15 bearings resistance
Alcohol	Resistant
Hydrocarbons	Resistant
Greases. oils	Resistant
Fuels	Resistant
Diluted acids	Conditionally resistant
Strong acids	Not resistant
Diluted alkalis	Resistant
Strong alkalis	Conditionally resistant

CSB® Bearing Material Chemical Resistance

Please select bearing material and medium...

CSB® bearing material chemical resistance data is a comparison test result of the CSB chemistry laboratory using laboratory specimens or similar chemicals at room temperature 23 ℃, without considering the impact of other temperatures and chemical medium mixtures on the chemical resistance of CSB® bearing materials ; Therefore, this data can only act as a reference. CSB® recommends that the chemical resistance of actual parts should be tested under application conditions and verify the suitability of the bearings.

CSB-EPB15 Plastic Plain Bearings 1889

Time 09-2021

Type PDF

No. CSB/CAT.062E

Size 588KB

1889

download

CSB-EPB®

Plain bearings finder v2.1

view tools

CSB-EPB® Plain bearings finder V2.1

▊CSB-EPB® Plastic Bearings Finder[V2.1] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations material data by entering parameters such as bearing load, speed, and temperature, and finally output material adaptation data.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the bearing must be tested again to verify whether it meets the actual use requirements.
▊CSB-EPB® Plastic Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.
