Product Features

● Low friction and good wear resistance for high temperature applications. The excellent chemical resistance of the material ensures athe applications for high temperature and high chemical erosion applications

● Continuous working temperature: -40℃/+200℃

● Very low coefficient of friction

● Maintenance-free dry operation

● High temperature and good chemical resistance

● Suitable for humid environment

Material properties	Standard	Unit	CSB-EPB21
General properties
Color	-	-	Beige
Density	ISO1183	g/cm³	1.53
Max. moisture absorption, 50%RH	ISO62	%	0.1
Max. water absorption	ISO62	%	0.3
Coefficient of sliding friction(steel)	ITS025	µ	0.05-0.20
Max. PV value	ITS026	N/mm²×m/s	0.80
Mechanical properties
Flexural modulus	ISO178	MPa	2800
Flexural strength	ISO178	MPa	55
Max. static load	ITS027	MPa	80
Max. dynamic load	ITS028	MPa	37
Shore hardness	ISO868	D	77
Physical and thermal properties
Long-term application temperature	ITS029	℃	+200
Short-term application temperature	ITS029	℃	+240
Lowest application temperature	ITS029	℃	-40
Thermal conductivity	ISO22007	W/m/K	0.24
Coefficient of thermal expansion	ISO11359	K^-1×10^-5	6
Flammability	UL94	Class	V0
Electrical properties
Volume resistance	IEC60093	Ω·cm	>10¹²
Surface resistance	IEC60093	Ω	>10¹¹

*ITS: CSB company's internal test standards. **Test temperatures are 23℃ unless otherwise stated.

Sleeve bearing

Flange bearing

Thrust washer

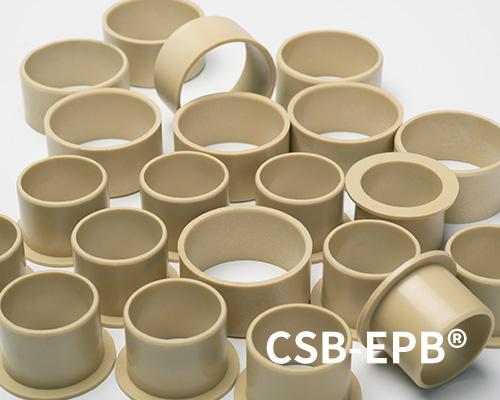

EPB21 Plastic plain bearings

Part no.:

d1 [mm]：

d2 [mm]：

L_h13 [mm]：

d3_d13 [mm]：

T [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2-max. [mm]：

d2-min. [mm]：

T max. tolerance [mm]：

T min. tolerance [mm]：

Max. shaft [mm]：

Min. shaft [mm]：

Max. housing [mm]：

Min. housing [mm]：

*Lead time [wsk]：

Download CAD

Cart

Shopping

Dimensions

▊ PV value

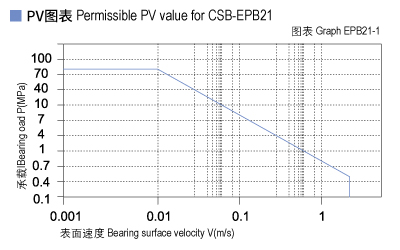

The max PV value of the CSB-EPB21 plastic bearings is 0.8N/mm²×m/s which determines the load capacity of bearing is inversely proportional to the speed. Please refer to the chart for more detailed information (Graph EPB21-1).

EPB21_01-Plastic plain bearings PV value.jpg

▊ Load, speed and temperature

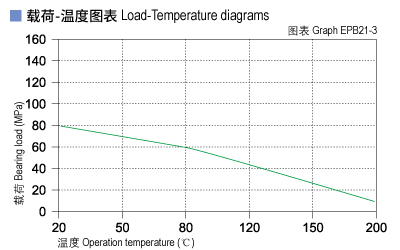

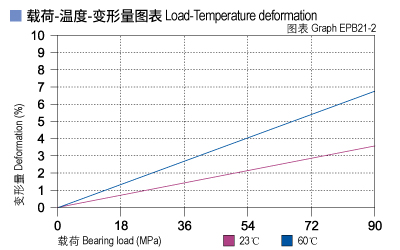

CSB-EPB21 allows the Max static load of 80Mpa, The max compressive deformation rate under the max load is listed in Graph EPB21-2, The actual load capacity of bearing is slightly less than 80Mpa, The bearing load is variable against the speed and temperature, Fast speed (Vmax: 1.5m/s) results into higher temperature (Tmax: 200℃) which decreases the load capacity of the bearing. Please refer to the Graph EPB21-3 for such variation.

EPB21_02-Plastic plain bearings load.jpg EPB21_03-Plastic plain bearings load and tepmerature.jpg

▊ Friction factor, wear and shaft material

▊ Friction factor

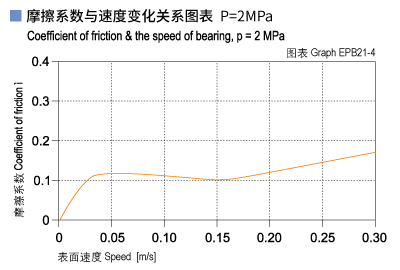

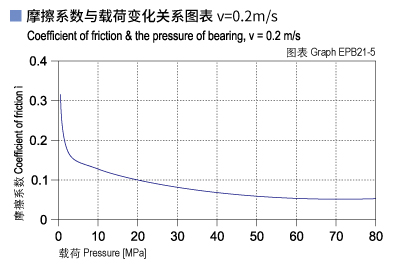

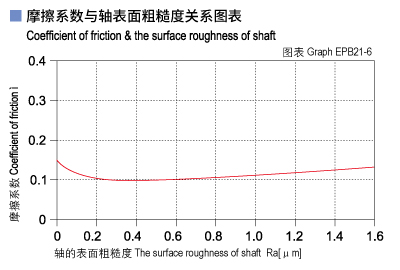

Friction factor will be slightly decreased along with the speed increasing under certain loading of the rotation operation (see Graph EPB21-4) and it will be slightly decreased along with the loading increasing under certain speed of the rotation operation especially when the loading is less than 30Mpa. Graph EPB21-5 tells that the friction of the CSB-EPB21 is not changed at all when the shaft roughness is between Ra0.3 to Ra0.4 and will be considerably increased when the shaft roughness is over Ra0.4. So the recommended shaft roughness is Ra0.3-Ra0.4.

CSB-EPB21	Dry	Grease	Oil	Water
Friction coef. μ	0.05~0.20	0.09	0.04	0.04

EPB21_04-Plastic plain bearings friction and speed.jpg EPB21_05-Plastic plain bearings friction and load.jpg EPB21_06-Plastic plain bearings friction and surface roughness of shaft.jpg

▊ Wearing and shaft material

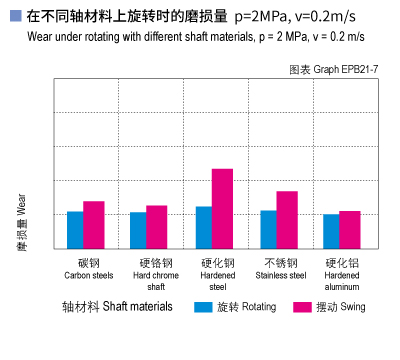

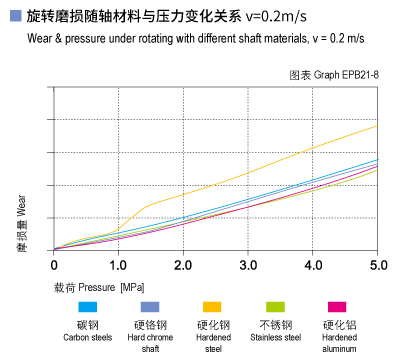

Graph EPB21-7 and EPB21-8 shows that CSB-EPB21 is suitable for most of the shaft materials under rotation operation and it is good for stainless steel shaft under high loading rotation operation (see Graph EPB21-8). CSB-EPB21 is suitable for oscillation operation, Stainless steel shaft and hardened aluminum shaft is suitable for the bearing under rotation operation.

EPB21_07-Plastic plain bearings wear and shaft materials.jpg EPB21_08-Plastic plain bearings wear and load.jpg

▊ Chemical resistance

The Chemical Resistance of CSB-EPB21 is fairly good against most of Acid and Alkalis.

▊ Water absorption

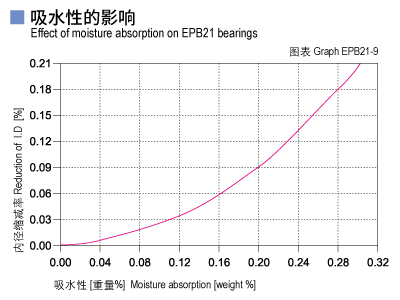

The moisture absorption of CSB-EPB21 plastic plain bearings is 0.1% in standard atmosphere. The max. water absorption is 0.3% in water . These values are very low, CSB-EPB21 plastic palin bearings is very well suited for used in wet applications.

EPB21_09-Plastic plain bearings moisture absorption.jpg

▊ UV resistance

Disintegration could be possible for the material CSB-EPB21 after long period of exposing under the UV ray and therefore the compressive strength will be reduced.

▊ Installation tolerances

CSB-EPB21 Tolerances after pressfit

Diameter [mm]	CSB-EPB21 E10 [mm]	Housing H7 [mm]	Shaft h9 [mm]
>0～3	+0.014～+0.054	0～+0.010	0～-0.025
>3～6	+0.020～+0.068	0～+0.012	0～-0.030
>6～10	+0.025～+0.083	0～+0.015	0～-0.036
>10～18	+0.032～+0.102	0～+0.018	0～-0.043
>18～30	+0.040～+0.124	0～+0.021	0～-0.052
>30～50	+0.050～+0.150	0～+0.025	0～-0.062
>50～80	+0.060～+0.180	0～+0.030	0～-0.074
>80～120	+0.072～+0.212	0～+0.035	0～-0.087
>120～180	+0.085～+0.245	0～+0.040	0～-0.100

Medium	EPB21 bearings resistance
Alcohol	Resistant
Hydrocarbons	Resistant
Greases. oils	Resistant
Fuels	Resistant
Diluted acids	Conditionally resistant
Strong acids	Conditionally resistant
Diluted alkalis	Resistant
Strong alkalis	Conditionally resistant

CSB® Bearing Material Chemical Resistance

Please select bearing material and medium...

CSB® bearing material chemical resistance data is a comparison test result of the CSB chemistry laboratory using laboratory specimens or similar chemicals at room temperature 23 ℃, without considering the impact of other temperatures and chemical medium mixtures on the chemical resistance of CSB® bearing materials ; Therefore, this data can only act as a reference. CSB® recommends that the chemical resistance of actual parts should be tested under application conditions and verify the suitability of the bearings.
