Product Features

● A self-lubricating material for applications in water. It is suitable for high speed motion under low load

● Continuous working temperature: -50℃/+90℃

● Suitable for medium load operation

● For underwater operation

● For high speed movement

Material properties	Standard	Unit	CSB-EPB20
General properties
Color	-	-	Black
Density	ISO1183	g/cm³	1.53
Max. moisture absorption, 50%RH	ISO62	%	0.2
Max. water absorption	ISO62	%	0.8
Coefficient of sliding friction(steel)	ITS025	µ	0.15-0.35
Max. PV value	ITS026	N/mm²×m/s	0.15
Mechanical properties
Flexural modulus	ISO178	MPa	7200
Flexural strength	ISO178	MPa	120
Max. static load	ITS027	MPa	70
Max. dynamic load	ITS028	MPa	35
Shore hardness	ISO868	D	79
Physical and thermal properties
Long-term application temperature	ITS029	℃	+90
Short-term application temperature	ITS029	℃	+110
Lowest application temperature	ITS029	℃	-50
Thermal conductivity	ISO22007	W/m/K	0.60
Coefficient of thermal expansion	ISO11359	K^-1×10^-5	6
Flammability	UL94	Class	HB
Electrical properties
Volume resistance	IEC60093	Ω·cm	<10⁵
Surface resistance	IEC60093	Ω	<10⁵

*ITS: CSB company's internal test standards. **Test temperatures are 23℃ unless otherwise stated.

Sleeve bearing

Flange bearing

Thrust washer

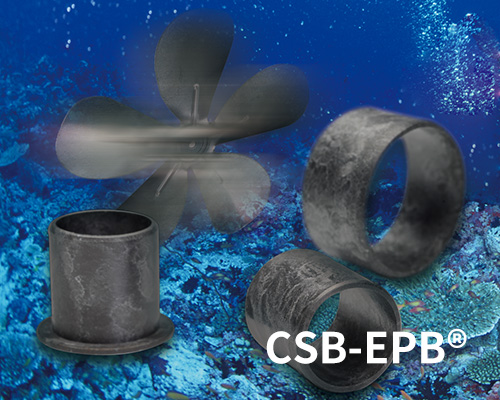

EPB20 Plastic plain bearings

Part no.:

d1 [mm]：

d2 [mm]：

L_h13 [mm]：

d3_d13 [mm]：

T [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2-max. [mm]：

d2-min. [mm]：

T max. tolerance [mm]：

T min. tolerance [mm]：

Max. shaft [mm]：

Min. shaft [mm]：

Max. housing [mm]：

Min. housing [mm]：

*Lead time [wsk]：

Download CAD

Cart

Shopping

Dimensions

▊ PV value

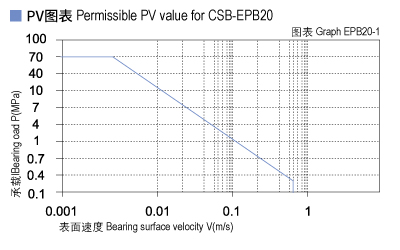

The max PV value of the CSB-EPB20 plastic bearings is 0.15N/mm²×m/s which determines the load capacity of bearing is inversely proportional to the speed. Please refer to the chart for more detailed information (Graph EPB20-1).

EPB20_01-Plastic plain bearings PV value.jpg

▊ Load, speed and temperature

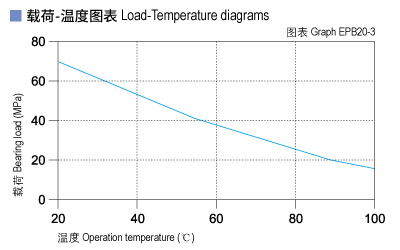

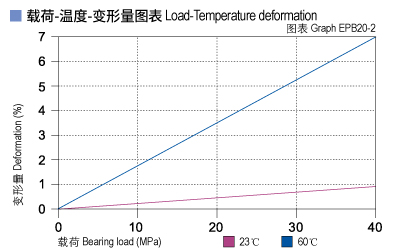

CSB-EPB20 allows the Max static load of 70Mpa, The max compressive deformation rate under the max load is listed in Graph EPB20-2, The actual load capacity of bearing is slightly less than 70Mpa, The bearing load is variable against the speed and temperature, Fast speed (Vmax: 0.5m/s) results into higher temperature (Tmax: 90℃) which decreases the load capacity of the bearing. Please refer to the Graph EPB20-3 for such variation.

EPB20_02-Plastic plain bearings load.jpg EPB20_03-Plastic plain bearings load and tepmerature.jpg

▊ Friction factor, wear and shaft material

▊ Friction factor

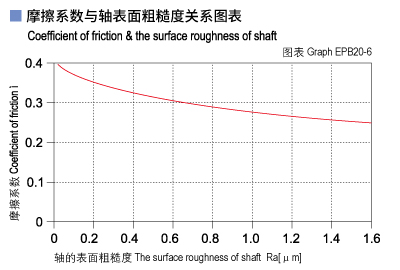

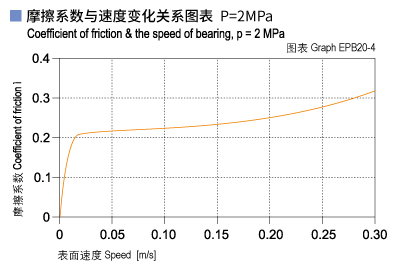

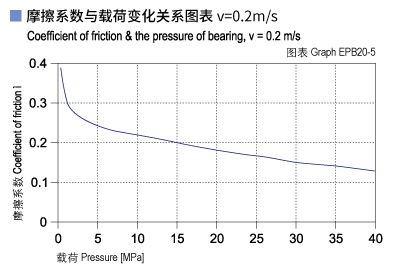

Similar with most of the plastic bearings, the friction factor of CSB-EPB20 is increased along with the operation speed when the loading is stable (see Graph EPB20-4) and is decreased along with the loading increasing when the operation speed is stable (see Graph EPB20-5). From Graph EPB20-6, it shows the friction factor of CSB-EPB20 is variable against different shaft surface roughness. The recommended shaft surface roughness is Ra0.3~0.6.

CSB-EPB20	Dry	Grease	Oil	Water
Friction coef. μ	0.15~0.35	0.09	0.04	0.04

EPB20_04-Plastic plain bearings friction and speed.jpg EPB20_05-Plastic plain bearings friction and load.jpg EPB20_06-Plastic plain bearings friction and surface roughness of shaft.jpg

▊ Wearing and shaft material

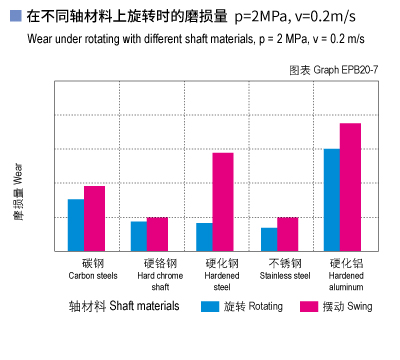

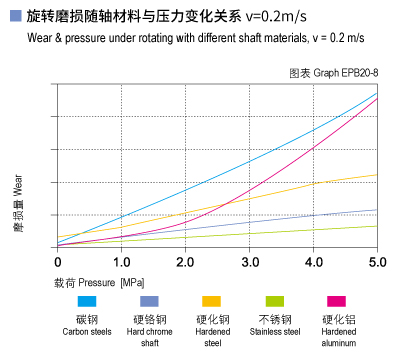

Graph EPB20-7 and EPB20-8 shows that CSB-EPB20 is rather suitable for hardened steel shaft and hardened chrome steel shaft under lower loading and Graph EPB20-7 shows that CSB-EPB20 wearing feature is better for oscillation operation than of rotation operation.

EPB20_07-Plastic plain bearings wear and shaft materials.jpg EPB20_08-Plastic plain bearings wear and load.jpg

▊ Chemical resistance

CSB-EPB20 is good at chemical resistance against weak acidic medium and various kinds of lubricants.

▊ Water absorption

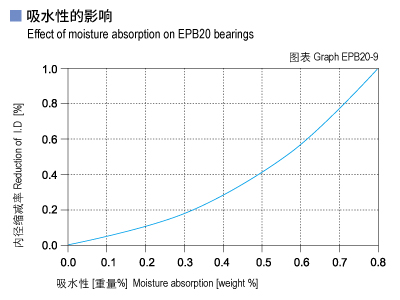

The moisture absorption of CSB-EPB20 plastic plain bearings is 0.2% in standard atmosphere. The max. water absorption is 0.8% in water. These values are very low, CSB-EPB20 plastic palin bearings is very well suited for used in water.

EPB20_09-Plastic plain bearings moisture absorption.jpg

▊ UV resistance

Disintegration could be possible for the material CSB-EPB20 after long period of exposing under the UV ray and therefore the performance of the material will be reduced.

▊ Installation tolerances

CSB-EPB20 Tolerances after pressfit

Diameter [mm]	CSB-EPB20 E10 [mm]	Housing H7 [mm]	Shaft h9 [mm]
>0～3	+0.014～+0.054	0～+0.010	0～-0.025
>3～6	+0.020～+0.068	0～+0.012	0～-0.030
>6～10	+0.025～+0.083	0～+0.015	0～-0.036
>10～18	+0.032～+0.102	0～+0.018	0～-0.043
>18～30	+0.040～+0.124	0～+0.021	0～-0.052
>30～50	+0.050～+0.150	0～+0.025	0～-0.062
>50～80	+0.060～+0.180	0～+0.030	0～-0.074
>80～120	+0.072～+0.212	0～+0.035	0～-0.087
>120～180	+0.085～+0.245	0～+0.040	0～-0.100

Medium	EPB20 bearings resistance
Alcohol	Resistant
Hydrocarbons	Resistant
Greases. oils	Resistant
Fuels	Resistant
Diluted acids	Conditionally resistant
Strong acids	Not resistant
Diluted alkalis	Resistant
Strong alkalis	Conditionally resistant

CSB® Bearing Material Chemical Resistance

Please select bearing material and medium...

CSB® bearing material chemical resistance data is a comparison test result of the CSB chemistry laboratory using laboratory specimens or similar chemicals at room temperature 23 ℃, without considering the impact of other temperatures and chemical medium mixtures on the chemical resistance of CSB® bearing materials ; Therefore, this data can only act as a reference. CSB® recommends that the chemical resistance of actual parts should be tested under application conditions and verify the suitability of the bearings.
