Product Features

● It is a wear resistance material for working temperature lower than 80℃. The application is for the condition where the shaft hardness is not critical. The white color of the material is also commonly used for most of the clearing and packing machineries

● Continuous working temperature: -40℃/+80℃

● No special requirement on the surface roughness

● Low friction coefficient

● Applicable for soft shaft

Material properties	Standard	Unit	CSB-EPB6
General properties
Color	-	-	White
Density	ISO1183	g/cm³	1.45
Max. moisture absorption, 50%RH	ISO62	%	0.3
Max. water absorption	ISO62	%	1.2
Coefficient of sliding friction(steel)	ITS025	µ	0.05-0.18
Max. PV value	ITS026	N/mm²×m/s	0.30
Mechanical properties
Flexural modulus	ISO178	MPa	2300
Flexural strength	ISO178	MPa	60
Max. static load	ITS027	MPa	35
Max. dynamic load	ITS028	MPa	14
Shore hardness	ISO868	D	74
Physical and thermal properties
Long-term application temperature	ITS029	℃	+80
Short-term application temperature	ITS029	℃	+120
Lowest application temperature	ITS029	℃	-40
Thermal conductivity	ISO22007	W/m/K	0.20
Coefficient of thermal expansion	ISO11359	K^-1×10^-5	10
Flammability	UL94	Class	HB
Electrical properties
Volume resistance	IEC60093	Ω·cm	>10¹³
Surface resistance	IEC60093	Ω	>10¹²

*ITS: CSB company's internal test standards. **Test temperatures are 23℃ unless otherwise stated.

Sleeve bearing

Flange bearing

Thrust washer

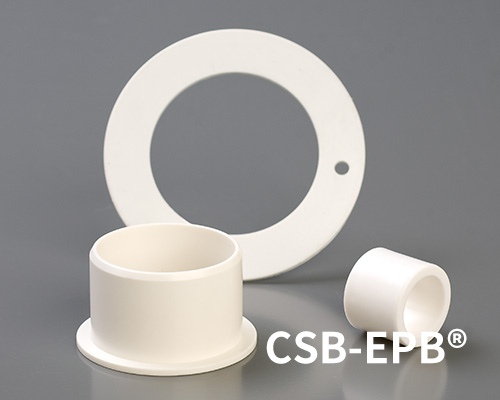

EPB6 Plastic plain bearings

Part no.:

d1 [mm]：

d2 [mm]：

L_h13 [mm]：

d3_d13 [mm]：

T [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2-max. [mm]：

d2-min. [mm]：

T max. tolerance [mm]：

T min. tolerance [mm]：

Max. shaft [mm]：

Min. shaft [mm]：

Max. housing [mm]：

Min. housing [mm]：

*Lead time [wsk]：

Download CAD

Cart

Shopping

Dimensions

▊ PV value

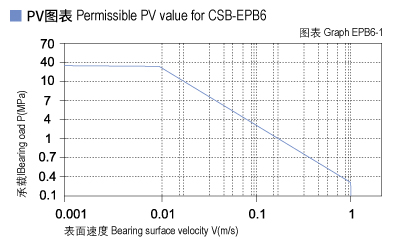

The max PV value of the CSB-EPB6 plastic bearings is 0.3N/mm²×m/s which determines the load capacity of bearing is inversely proportional to the speed. Please refer to the chart for more detailed information (Graph EPB6-1).

EPB6_01-Plastic plain bearings PV value.jpg

▊ Load, speed and temperature

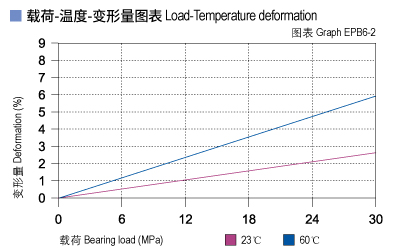

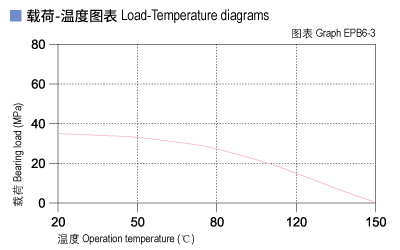

CSB-EPB6 allows the Max static load of 35Mpa, The max compressive deformation rate under the max load is listed in Graph EPB6-2, The actual load capacity of bearing is slightly less than 35Mpa, The bearing load is variable against the speed and temperature, Fast speed (Vmax: 1.0m/s) results into higher temperature (Tmax: 80℃) which decreases the load capacity of the bearing. Please refer to the Graph EPB6-3 for such variation.

EPB6_02-Plastic plain bearings load.jpg EPB6_03-Plastic plain bearings load and tepmerature.jpg

▊ Friction factor, wear and shaft material

▊ Friction factor

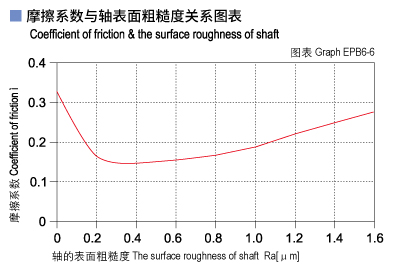

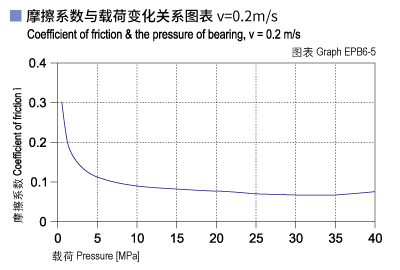

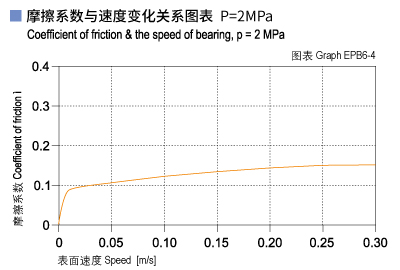

Graph EPB6-4 shows the CSB-EPB6 friction factor is slightly increased as long as the operation speed increasing when the loading is relatively stable. Graph EPB6-5 shows the friction factor of CSB-EPB6 is continuing decreasing along with the loading increasing when the operation speed is relatively stable. From Graph EPB6-6, it is found that the friction factor is also variable against the shaft surface roughness. The recommended shaft surface roughness is Ra0.3~0.6.

CSB-EPB6	Dry	Grease	Oil	Water
Friction coef. μ	0.05~0.18	0.09	0.04	0.04

EPB6_04-Plastic plain bearings friction and speed.jpg EPB6_05-Plastic plain bearings friction and load.jpg EPB6_06-Plastic plain bearings friction and surface roughness of shaft.jpg

▊ Wearing and shaft material

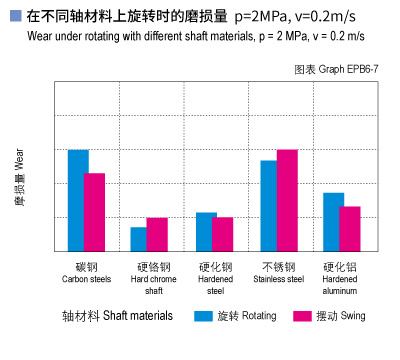

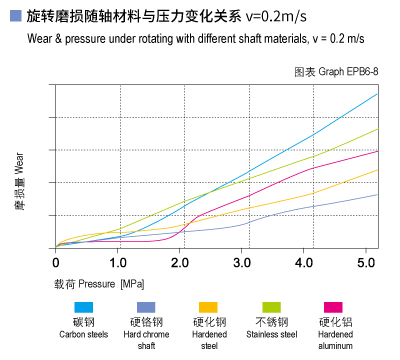

Graph EPB6-7 and Graph EPB6-8 describes CSB-EPB6 bearing is suitable for hardened steel and hardened chrome steel shaft. CSB-EPB6 is very similar during its rotation operation and oscillation operation so that this material is suitable for most of the applications.

EPB6_07-Plastic plain bearings wear and shaft materials.jpg EPB6_08-Plastic plain bearings wear and load.jpg

▊ Chemical resistance

CSB-EPB6 is good at chemical resistance against mild base, weak acidic medium and various kinds of lubricants.

▊ Water absorption

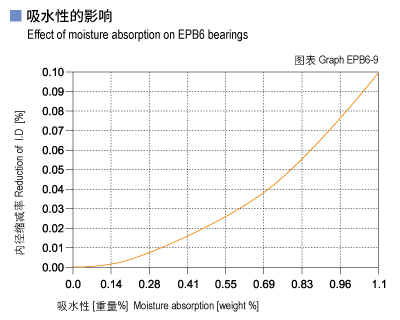

The moisture absorption of CSB-EPB6 plastic bearings is 0.3% in standard atmosphere. The max. water absorption is 1.2% in water. These values are so low that design changes due to absorption are only necessary in extreme applications.

EPB6_09-Plastic plain bearings moisture absorption.jpg

▊ UV resistance

CSB-EPB6 can maintain its color unchanged when it is exposed into the UV ray. The hardness, Compressive strength and wear resistance of the material is also stable under such condition.

▊ Installation tolerances

CSB-EPB6 Tolerances after pressfit

Diameter [mm]	CSB-EPB6 E10 [mm]	Housing H7 [mm]	Shaft h9 [mm]
>0～3	+0.014～+0.054	0～+0.010	0～-0.025
>3～6	+0.020～+0.068	0～+0.012	0～-0.030
>6～10	+0.025～+0.083	0～+0.015	0～-0.036
>10～18	+0.032～+0.102	0～+0.018	0～-0.043
>18～30	+0.040～+0.124	0～+0.021	0～-0.052
>30～50	+0.050～+0.150	0～+0.025	0～-0.062
>50～80	+0.060～+0.180	0～+0.030	0～-0.074
>80～120	+0.072～+0.212	0～+0.035	0～-0.087
>120～180	+0.085～+0.245	0～+0.040	0～-0.100

Medium	EPB6 bearings resistance
Alcohol	Resistant
Hydrocarbons	Resistant
Greases. oils	Resistant
Fuels	Resistant
Diluted acids	Conditionally resistant
Strong acids	Not resistant
Diluted alkalis	Resistant
Strong alkalis	Conditionally resistant

CSB® Bearing Material Chemical Resistance

Please select bearing material and medium...

CSB® bearing material chemical resistance data is a comparison test result of the CSB chemistry laboratory using laboratory specimens or similar chemicals at room temperature 23 ℃, without considering the impact of other temperatures and chemical medium mixtures on the chemical resistance of CSB® bearing materials ; Therefore, this data can only act as a reference. CSB® recommends that the chemical resistance of actual parts should be tested under application conditions and verify the suitability of the bearings.
