Product Features

● Wear resistance material with high strength and low water absorbtion feature. The dimensions will be remain stable even in humidity environment

● Continuous working temperature: -40℃/+130℃

● Higher load capacity

● Maintenance-free dry operation

● Low water absorption

● Good performance cost ratio under high load

Material properties	Standard	Unit	CSB-EPB16
General properties
Color	-	-	Black
Density	ISO1183	g/cm³	1.60
Max. moisture absorption, 50%RH	ISO62	%	0.2
Max. water absorption	ISO62	%	0.4
Coefficient of sliding friction(steel)	ITS025	µ	0.06-0.20
Max. PV value	ITS026	N/mm²×m/s	0.40
Mechanical properties
Flexural modulus	ISO178	MPa	4900
Flexural strength	ISO178	MPa	140
Max. static load	ITS027	MPa	75
Max. dynamic load	ITS028	MPa	38
Shore hardness	ISO868	D	80
Physical and thermal properties
Long-term application temperature	ITS029	℃	+130
Short-term application temperature	ITS029	℃	+200
Lowest application temperature	ITS029	℃	-40
Thermal conductivity	ISO22007	W/m/K	0.25
Coefficient of thermal expansion	ISO11359	K^-1×10^-5	4
Flammability	UL94	Class	HB
Electrical properties
Volume resistance	IEC60093	Ω·cm	>10¹³
Surface resistance	IEC60093	Ω	>10¹²

*ITS: CSB company's internal test standards. **Test temperatures are 23℃ unless otherwise stated.

Sleeve bearing

Flange bearing

Thrust washer

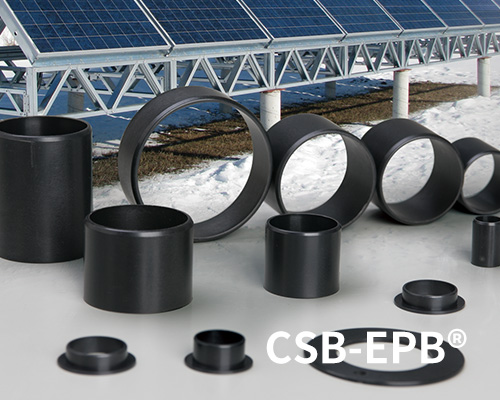

EPB16 Plastic plain bearings

Part no.:

d1 [mm]：

d2 [mm]：

L_h13 [mm]：

d3_d13 [mm]：

T [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2-max. [mm]：

d2-min. [mm]：

T max. tolerance [mm]：

T min. tolerance [mm]：

Max. shaft [mm]：

Min. shaft [mm]：

Max. housing [mm]：

Min. housing [mm]：

*Lead time [wsk]：

Download CAD

Cart

Shopping

Dimensions

▊ PV value

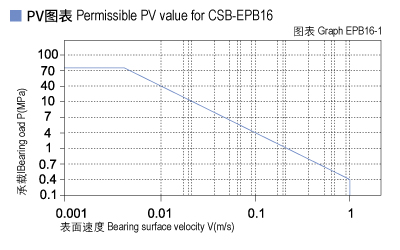

The max PV value of the CSB-EPB16 plastic bearings is 0.4N/mm²×m/s which determines the load capacity of bearing is inversely proportional to the speed. Please refer to the chart for more detailed information (Graph EPB16-1).

EPB16_01-Plastic plain bearings PV value.jpg

▊ Load, speed and temperature

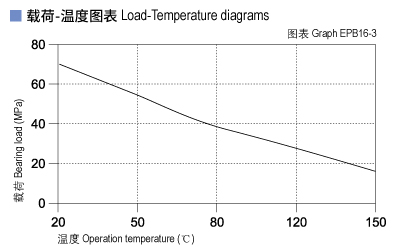

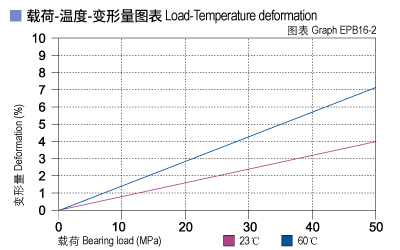

CSB-EPB16 allows the Max static load of 75Mpa, The max compressive deformation rate under the max load is listed in Graph EPB16-2, The actual load capacity of bearing is slightly less than 75Mpa, The bearing load is variable against the speed and temperature, Fast speed (Vmax: 1.0m/s) results into higher temperature (Tmax: 130℃) which decreases the load capacity of the bearing. Please refer to the Graph EPB16-3 for such variation.

EPB16_02-Plastic plain bearings load.jpg EPB16_03-Plastic plain bearings load and tepmerature.jpg

▊ Friction factor, wear and shaft material

▊ Friction factor

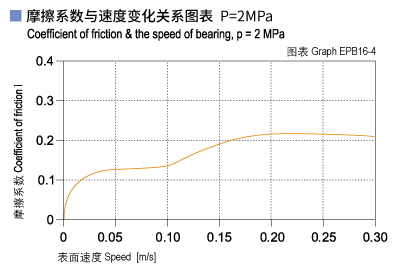

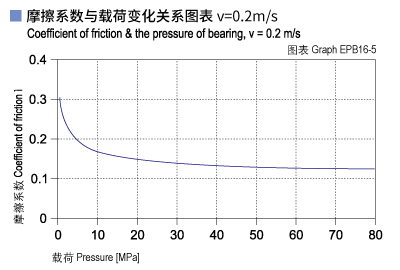

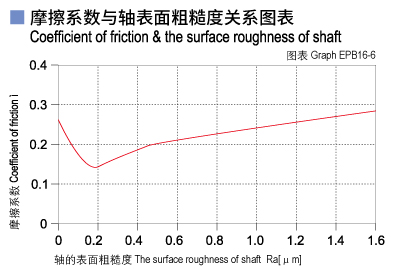

Graph EPB16-4 shows that as the same as most of the slide bearing materials, the friction factor of CSB-EPB16 is increasing along with the rotation speed under a certain loading while as shown in Graph EPB16-5, it is decreased along with the increasing of loading when the operation speed is stable. From Graph EPB16-6, it is found that the most suitable shaft roughness is Ra0.1 to Ra0.2. Smoother shaft or rougher shaft may result into friction factor increasing.

CSB-EPB16	Dry	Grease	Oil	Water
Friction coef. μ	0.06~0.20	0.09	0.04	0.04

EPB16_04-Plastic plain bearings friction and speed.jpg EPB16_05-Plastic plain bearings friction and load.jpg EPB16_06-Plastic plain bearings friction and surface roughness of shaft.jpg

▊ Wearing and shaft material

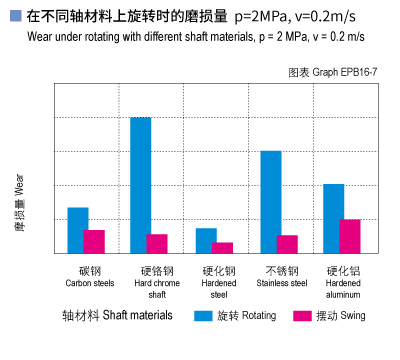

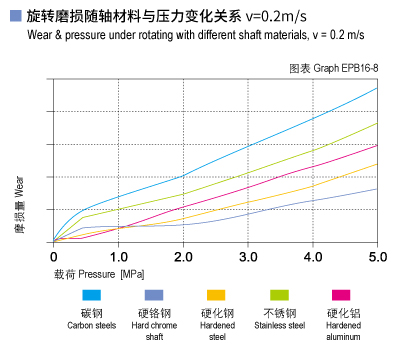

Graph EPB16-7 and Graph EPB16-8 shows the wearing is considerably affected by the shaft materials. Heat-treated steel shaft and carbon steel shaft is good for this bearing material. CSB-EPB16 is suitable for hardened chrome steel and hardened steel shaft in oscillation operation and is suitable for carbon steel and hardened steel shaft in rotation operation.

EPB16_07-Plastic plain bearings wear and shaft materials.jpg EPB16_08-Plastic plain bearings wear and load.jpg

▊ Chemical resistance

CSB-EPB16 is good at chemical resistance against weak acidic medium and various kinds of lubricants.

▊ Water absorption

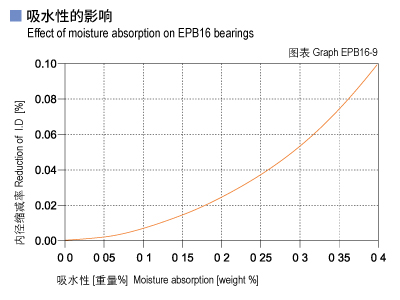

The moisture absorption of CSB-EPB16 plastic plain bearings is 0.2% in standard atmosphere. The max. water absorption is 0.4% in water . These values are very low, CSB-EPB16 plastic palin bearings is very well suited for used in wet applications.

EPB16_09-Plastic plain bearings moisture absorption.jpg

▊ UV resistance

Disintegration could be possible for the material CSB-EPB16 after long period of exposing under the UV ray and therefore the performance of the material will be reduced.

▊ Installation tolerances

CSB-EPB16 Tolerances after pressfit

Diameter [mm]	CSB-EPB16 E10 [mm]	Housing H7 [mm]	Shaft h9 [mm]
>0～3	+0.014～+0.054	0～+0.010	0～-0.025
>3～6	+0.020～+0.068	0～+0.012	0～-0.030
>6～10	+0.025～+0.083	0～+0.015	0～-0.036
>10～18	+0.032～+0.102	0～+0.018	0～-0.043
>18～30	+0.040～+0.124	0～+0.021	0～-0.052
>30～50	+0.050～+0.150	0～+0.025	0～-0.062
>50～80	+0.060～+0.180	0～+0.030	0～-0.074
>80～120	+0.072～+0.212	0～+0.035	0～-0.087
>120～180	+0.085～+0.245	0～+0.040	0～-0.100

Medium	EPB16 bearings resistance
Alcohol	Resistant
Hydrocarbons	Not resistant
Greases. oils	Resistant
Fuels	Resistant
Diluted acids	Conditionally resistant
Strong acids	Not resistant
Diluted alkalis	Not resistant
Strong alkalis	Not resistant

CSB® Bearing Material Chemical Resistance

Please select bearing material and medium...

CSB® bearing material chemical resistance data is a comparison test result of the CSB chemistry laboratory using laboratory specimens or similar chemicals at room temperature 23 ℃, without considering the impact of other temperatures and chemical medium mixtures on the chemical resistance of CSB® bearing materials ; Therefore, this data can only act as a reference. CSB® recommends that the chemical resistance of actual parts should be tested under application conditions and verify the suitability of the bearings.
