Product Features

● This material is developed against the requirement of wear resistance and economic cost for cost effective and big quantity comsuming applications

● Continuous working temperature: -40℃/+80℃

● Suitable for most of average and low load

● Maintenance-free dry operation

● Low cost for high quantities

Material properties	Standard	Unit	CSB-EPBH
General properties
Color	-	-	Black
Density	ISO1183	g/cm³	1.43
Max. moisture absorption, 50%RH	ISO62	%	0.3
Max. water absorption	ISO62	%	1.2
Coefficient of sliding friction(steel)	ITS025	µ	0.05-0.20
Max. PV value	ITS026	N/mm²×m/s	0.30
Mechanical properties
Flexural modulus	ISO178	MPa	2000
Flexural strength	ISO178	MPa	60
Max. static load	ITS027	MPa	30
Max. dynamic load	ITS028	MPa	12
Shore hardness	ISO868	D	74
Physical and thermal properties
Long-term application temperature	ITS029	℃	+80
Short-term application temperature	ITS029	℃	+120
Lowest application temperature	ITS029	℃	-40
Thermal conductivity	ISO22007	W/m/K	0.20
Coefficient of thermal expansion	ISO11359	K^-1×10^-5	10
Flammability	UL94	Class	HB
Electrical properties
Volume resistance	IEC60093	Ω·cm	>10¹³
Surface resistance	IEC60093	Ω	>10¹²

*ITS: CSB company's internal test standards. **Test temperatures are 23℃ unless otherwise stated.

Sleeve bearing

Flange bearing

Thrust washer

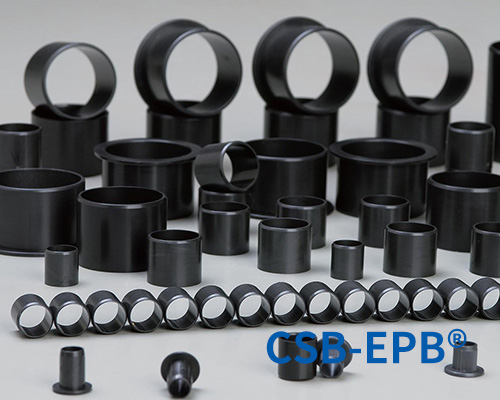

EPBH Plastic plain bearings

Part no.:

d1 [mm]：

d2 [mm]：

L_h13 [mm]：

d3_d13 [mm]：

T [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2-max. [mm]：

d2-min. [mm]：

T max. tolerance [mm]：

T min. tolerance [mm]：

Max. shaft [mm]：

Min. shaft [mm]：

Max. housing [mm]：

Min. housing [mm]：

*Lead time [wsk]：

Download CAD

Cart

Shopping

Dimensions

▊ PV value

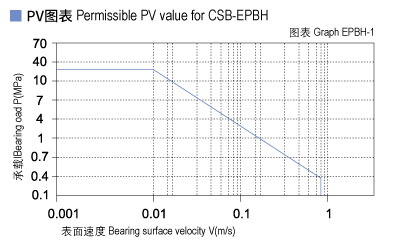

The max PV value of the CSB-EPBH plastic bearings is 0.3N/mm²×m/s which determines the load capacity of bearing is inversely proportional to the speed. Please refer to the chart for more detailed information (Graph EPBH-1).

EPBH_01-Plastic plain bearings PV value.jpg

▊ Load, speed and temperature

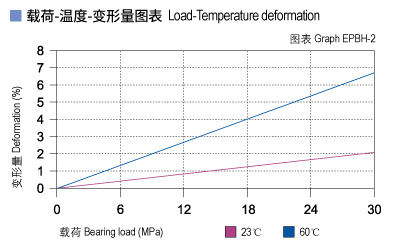

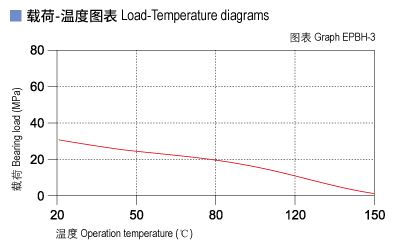

CSB-EPBH allows the Max static load of 30Mpa, The max compressive deformation rate under the max load is listed in Graph EPBH-2, The actual load capacity of bearing is slightly less than 30Mpa, The bearing load is variable against the speed and temperature, Fast speed (Vmax: 0.8m/s) results into higher temperature (Tmax: 80℃) which decreases the load capacity of the bearing. Please refer to the Graph EPBH-3 for such variation.

EPBH_02-Plastic plain bearings load.jpg EPBH_03-Plastic plain bearings load and tepmerature.jpg

▊ Friction factor, wear and shaft material

▊ Friction factor

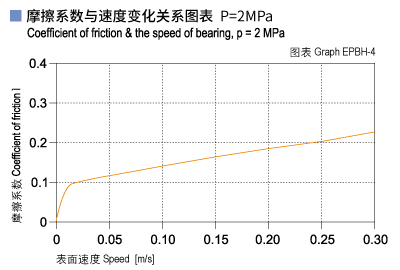

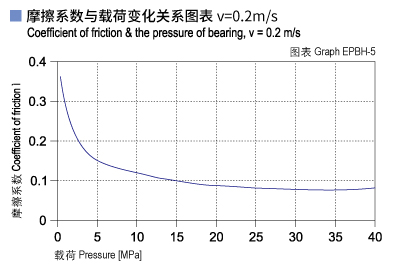

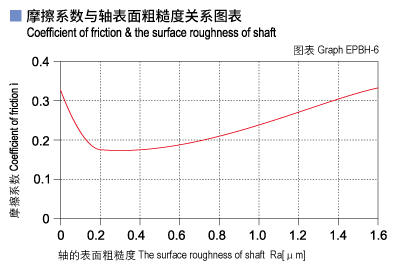

CSB-EPBH friction factor is not sensitive to the operation speed and bearing loading (see Graph EPBH-4 and Graph EPBH-5). The above features are the most common considerations for the bearing material selection. The friction of CSB-EPBH could be maintained at a relatively lower level so that the good wearing features are guaranteed. From the Graph EPBH-6, we could see that the friction factor is variable against the changing of shaft roughness. The recommended shaft roughness is Ra0.3~0.5.

CSB-EPBH	Dry	Grease	Oil	Water
Friction coef. μ	0.05~0.20	0.09	0.04	0.04

EPBH_04-Plastic plain bearings friction and speed.jpg EPBH_05-Plastic plain bearings friction and load.jpg EPBH_06-Plastic plain bearings friction and surface roughness of shaft.jpg

▊ Wearing and shaft material

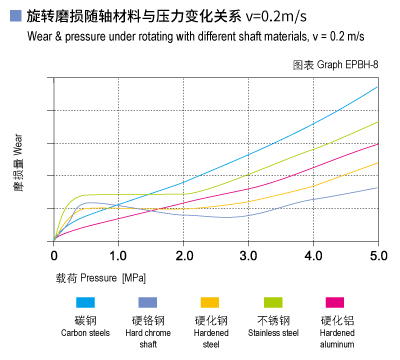

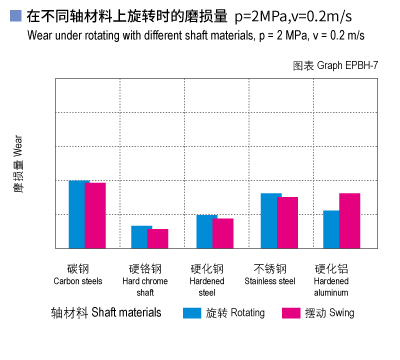

The shaft material is an important media for the bearing wearing but CSB-EPBH is suitable for almost all kinds of shaft materials. Graph EPBH-7 and Graph EPBH-8 show that the wearing feature of CSB-EPBH is excellent when the shaft material are hardened chrome steel or hardened steel.

EPBH_07-Plastic plain bearings wear and shaft materials.jpg EPBH_08-Plastic plain bearings wear and load.jpg

▊ Chemical resistance

CSB-EPBH is good at chemical resistance against mild base, weak acidic medium and various kinds of lubricants.

▊ Water absorption

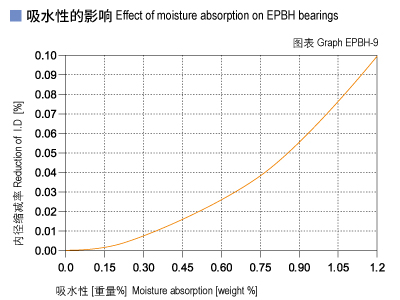

The moisture absorption of CSB-EPBH plastic bearings is 0.3% in standard atmosphere. The max. water absorption is 1.2% in water. These values are so low that design changes due to absorption are only necessary in extreme applications.

EPBH_09-Plastic plain bearings moisture absorption.jpg

▊ UV resistance

CSB-EPBH can maintain its color unchanged when it is exposed into the UV ray. The hardness, Compressive strength and wear resistance of the material is also stable under such condition.

▊ Installation tolerances

CSB-EPBH Tolerances after pressfit

Diameter [mm]	CSB-EPBH E10 [mm]	Housing H7 [mm]	Shaft h9 [mm]
>0～3	+0.014～+0.054	0～+0.010	0～-0.025
>3～6	+0.020～+0.068	0～+0.012	0～-0.030
>6～10	+0.025～+0.083	0～+0.015	0～-0.036
>10～18	+0.032～+0.102	0～+0.018	0～-0.043
>18～30	+0.040～+0.124	0～+0.021	0～-0.052
>30～50	+0.050～+0.150	0～+0.025	0～-0.062
>50～80	+0.060～+0.180	0～+0.030	0～-0.074
>80～120	+0.072～+0.212	0～+0.035	0～-0.087
>120～180	+0.085～+0.245	0～+0.040	0～-0.100

Medium	EPBH bearings resistance
Alcohol	Resistant
Hydrocarbons	Resistant
Greases. oils	Resistant
Fuels	Resistant
Diluted acids	Conditionally resistant
Strong acids	Not resistant
Diluted alkalis	Resistant
Strong alkalis	Conditionally resistant

CSB® Bearing Material Chemical Resistance

Please select bearing material and medium...

CSB® bearing material chemical resistance data is a comparison test result of the CSB chemistry laboratory using laboratory specimens or similar chemicals at room temperature 23 ℃, without considering the impact of other temperatures and chemical medium mixtures on the chemical resistance of CSB® bearing materials ; Therefore, this data can only act as a reference. CSB® recommends that the chemical resistance of actual parts should be tested under application conditions and verify the suitability of the bearings.

CSB-EPBH Plastic Plain Bearings 1925

Time 09-2021

Type PDF

No. CSB/CAT.062E

Size 587KB

1925

download
