Polymer-tech SolutionsTM
● Made of high anti-wear material EPB13;
● Maintenance-free, self lubricating;
● Chemical resistant;
● Dust resistant and quit running;
● Installation by force fitting;
● The E10 inner tolerance ensues only after the press fit;

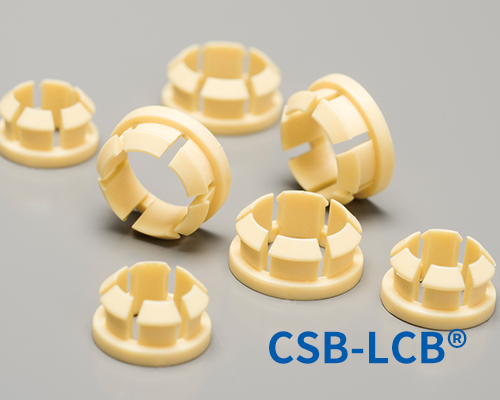

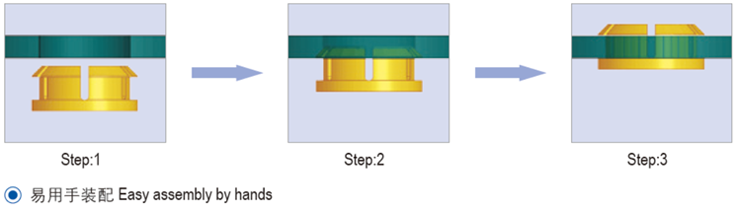

LCB plastic linear clip bearings are designed with double flange buckles and axial openings to easy installation by hand. The chip chute is designed for linear motion bearings; the smaller length is suitable for thin plate applications. Please use ELB series plastic linear bearings for bigger thickness plates.
LCB plastic linear clip bearings made of anti-wear materias CSB-EPB13，the bearing has excellent wear resistance and longer service life。
AS: Hard anodized aluminum shaft, the best shaft for LIN linear bearings; CS: Hard-chromed steel shaft, the effective-cost shaft; ES: 304 Stainless steel shaft, the best for chemical liquid; Shaft end processing service...
LCB linear bearings can be fitted into the housing with small force；Standard housing tolerance H7 and shaft tolerance h9。
| Medium | LCB bearings resistance |
| Alcohol | Resistant |
| Hydrocarbons | Resistant |
| Greases. oils | Resistant |
| Fuels | Resistant |
| Diluted acids | Conditionally resistant |
| Strong acids | Not resistant |
| Diluted alkalis | Resistant |
| Strong alkalis | Conditionally resistant |
CSB-LIN®P precision linear bearings with higher load carrying capacity and extremely low operating noise. The liners are made of TEFPLAS® for maintenance-free and low friction coefficient, operation temperature ±200℃...
CSB-LIN® maintenance free plastic linear bearings. Low noise operation is suitable for continuously applications under the extremely dusty environment. It is washable by the clean detergent of the food machine …
TEFPLAS® is designed for high speed applications with anti-wear sliding layer, TEFPLAS® composite materials are self-lubricating and maintenance-free, suitable for higher speeds and low friction...
Self-lubricating, maintenance-free Low driving force Resistant to dust...
Wear resistance piston ring specially developed for the pneaumatic pump industrial application. It is easier to be installed comparing with the PTFE piston ring. Standard materials available are EPB13, EPB19 and so on.
CSB® plastic wear resistance washer. Suitable for a fitting to the uncontrollable axial space in order to reduce the vabriation and noise during the operation.
Suitable for the application where the CSB® plastic clip bearing is hard to be located. The requirement of the fitting hole is not critical and the set screw could be secured without any risk of moving.
● Clearance-free and preload design
● Adjustable fitting gap
● Maintenance-free
● Shock absorbing and no noise
Thin-walled plastic bearing for quick installation. It is made with CSB-EPB3M material wich is flexible for dimension viriation. Alternative material CSB-EPB7 is also available for special wear resistance requirement.
The self-lubricated bearing is developed specially for the metal plate fitting. It is made with the CSB-EPB3M material which is good at shock absorbtion and wear resistance...
CSB® plastic bearings are highly wear-resistant plastic bushings, flange bearings and thrust washers made of composite materials. The working temperature CSB-EPB® plastic bearings up to 250 °C...
