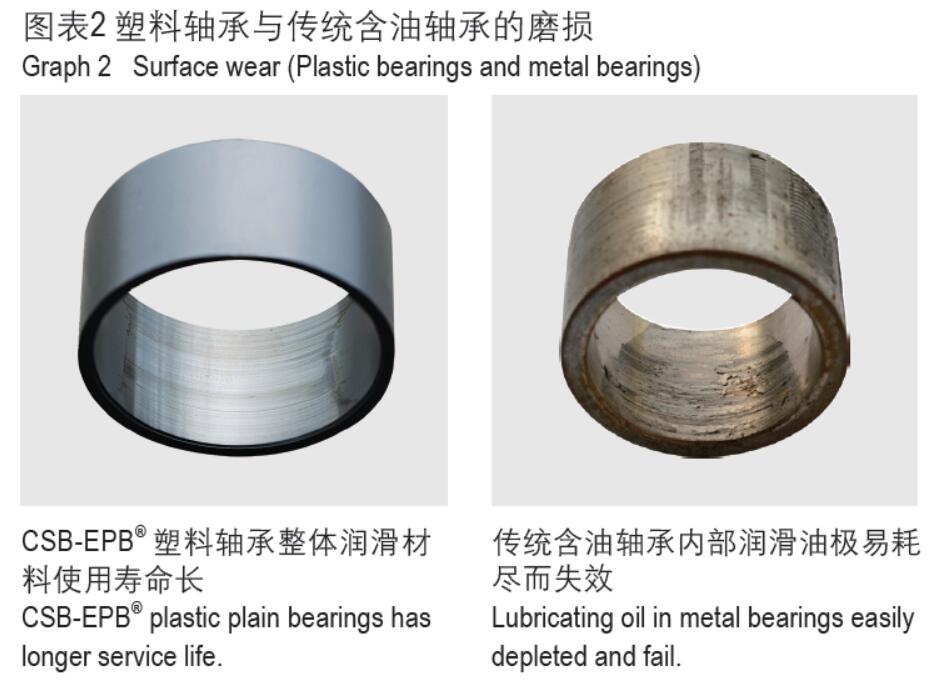

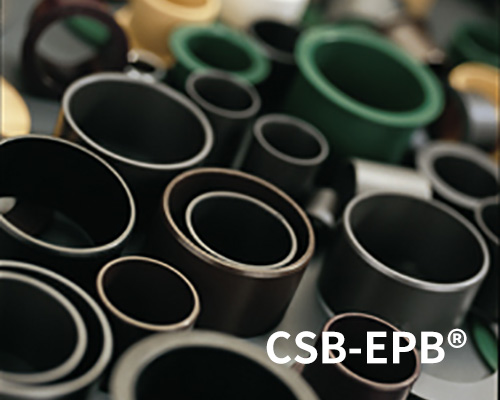

▊DURAPLAS® Plastic bearings and metal bearings
Because the grease immersed in the solid plastic material, the lubricating will be valid continuously no matter how long the bearings are working. Therefore, the traditional sintered oilless bearings provide the lubricating function by utilizing the impregnated oil in the tiny porosities of the material. When the impregnated oil would have been run out of dried, the bearing wear will be increased sharply and the bearing life will be terminated at the same time.
▊DURAPLAS® Bearing friction coefficient

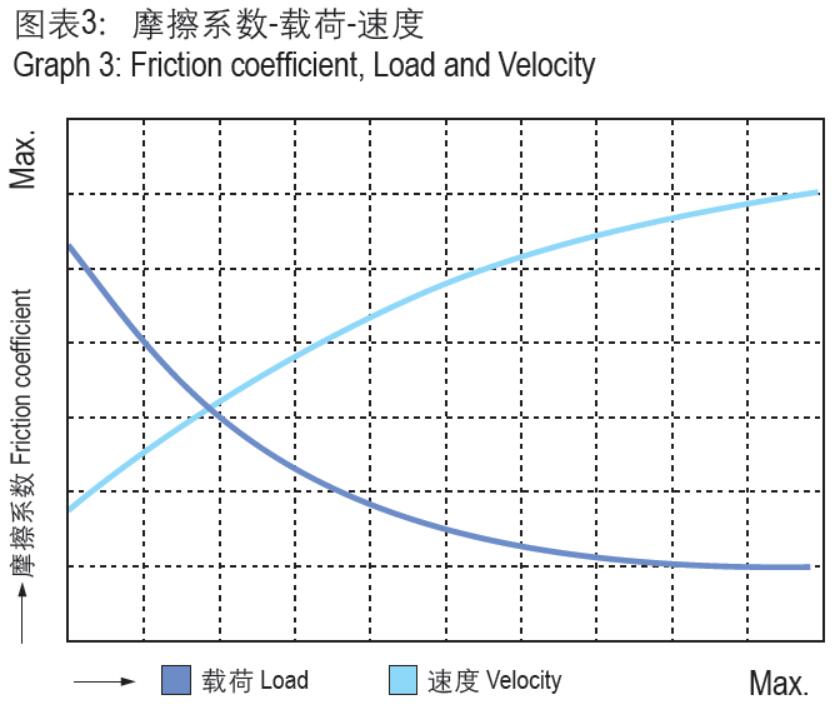

The self-lubricating feature of the DURAPLAS® plastic bearing is achieved by adding solid lubricants and functional fibers into the body material and the friction coefficient is decreased by the solid lubricate grease immersion. The friction coefficient is affected by the load, operating speed and shaft roughness. The friction coefficient is generally decreased along the load increasing and increased along the operating speed (see Graph3). Please refer to Graph 3 for the relation between the friction coefficient and shaft roughness.
▊DURAPLAS® Plastic bearing wear

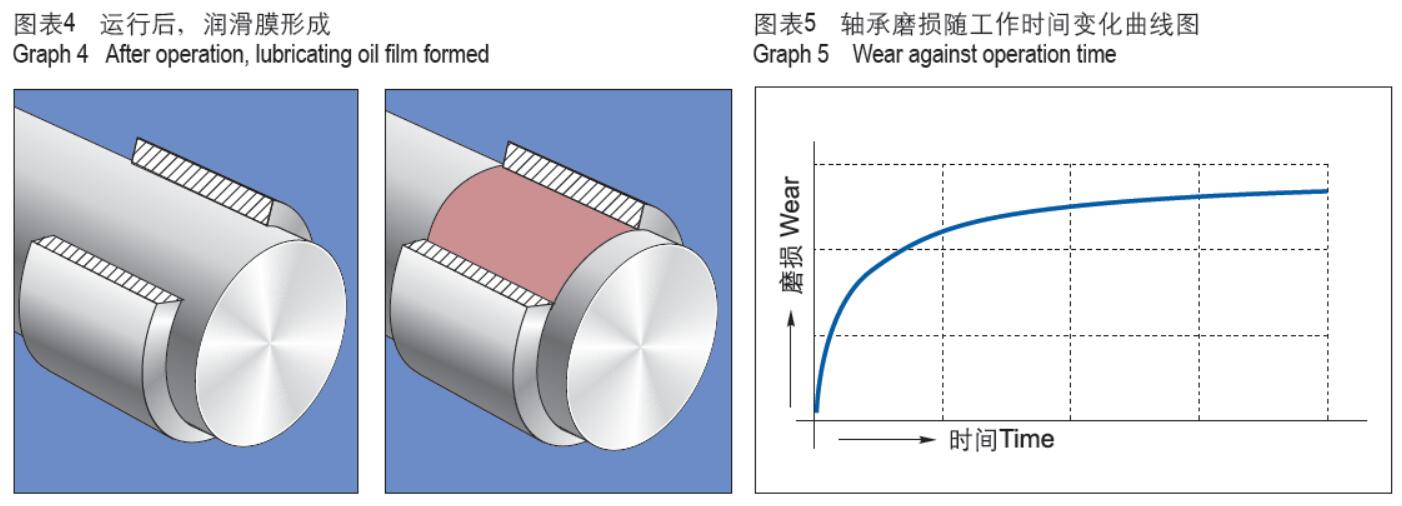

Slightly wear off will occur as soon as the self-lubricating bearing is applied with a certain load. It is the same to the DURAPLAS® plastic bearings, when the slightly wear occurs, the immersed oil (grease) will infiltrate out from the bearing filling the wear off area of the bearing as well as the mating material to form the lubricating film (Graph 4) and therefore interrupt the wear process. In this way, the aforementioned working method of the plastic bearings improves the wear resistance feature of the bearings and maintains the further operation stable.
