Product Features

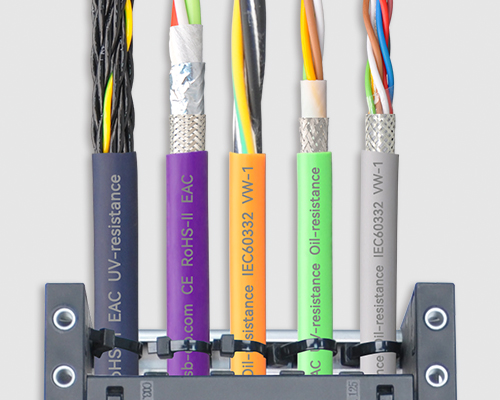

▊ FLEXMOV® Flexible cables

Flexible cables include control cables, data cables, bus cables,motor cables, robot cables, servo cables, measurement system cables, etc.

Control cables are common cables in the automation industry. High-frequency, long-term movements require control cables to maintain good wear resistance and mechanical properties in the cable chain.

Data cables Continuous movement within the cable chain requires extremely high EMC shielding requirements for cables, so the data cable needs to have special EMC protection requirements. In order to ensure that the data cable does not affect data transmission during the long-term bending movement of the cable chain, reliable structural design and The production process, especially the shielding layer.

Bus cables  The rapid development of Ethernet communications in the industrial field has placed extremely high requirements on the design and production of fieldbus cables. This is the only way to avoid mechanical damage to the cable during operation and signal loss during data transmission. Damage to the shielding layer and changes in characteristic wave impedance will increase the attenuation, which will lead to a sharp drop in the data transmission rate. Since the attenuation value will continue to change during the movement of the cable, troubleshooting becomes very difficult.

Robot cables used for torsional movements are subject to very specific stresses. In the case of shielded bus cables, the insulation and shielding are subject to high mechanical stress during bending and torsional movements.  This requires a completely different structural design concept for robot cables than for linear movements.

Servo cable  are standard accessories in drive technology and are commonly used in automation technology and mechanical structures. Due to the combination of power core wires and shielded pairs, the mechanical structure of the servo cable is always very unbalanced. In order to ensure that this asymmetry does not cause cable damage during operation in the drag chain, the servo cable must have a very special design, especially for long-distance gliding. As the speed of today's ICBT inverters continues to increase, low-capacitance insulating materials have become more important.

Motor cables are common accessories in drive technology and are used in automation technology and mechanical structures. As today's sports requirements are getting higher and higher, in order to ensure that power cables can operate safely and stably for millions of times, the cables need to have special conductors, insulation and core wire stranding designs. As the speed of today's IGBT inverters continues to increase, low-capacitance insulating materials have become crucial.

Measurement System Cables are important communication components connecting the drive and control systems. If there is no safe and timely feedback of electronic signals during movement, damage to the equipment may occur. Therefore, measurement system cables have special requirements for EMC protection. If there is continuous movement within the energy chain, the EMC shielding will be severely tested by mechanical stress. In order to ensure that these stresses do not cause failure of the measurement system, reliable structural design is very important, especially for shielding and stranded structures.


▊ FLEXMOV® Flexible cable special design

● Special short pitch bundled stranding
● With an intermediate layer to ensure that the insulation layer and sheathing layer are bonded and damaged
● Shielded cables with fully extruded inner sheath
● The shielding layer with optimized braiding angle ensures the highest EMC protection
● The fully extruded outer sheath ensures the stability of the shielding layer and the twisted structure
● The insulation material used will not change the insulation properties of the cable even after millions of operations

▊Test methods | Fire tests

Test	Specification	Design

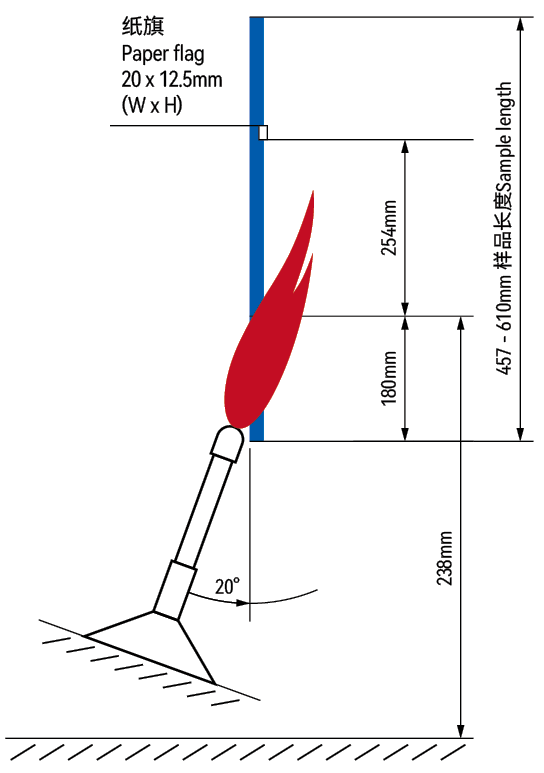

Vertical Flame and FT1	UL 1581, § 1060 (Vertical Flame and FT1 Test) Length of the sample: 457mm-610mm Burner： Bunsen burner with additional air supply(Tirril gas burner) Ø9.5mm Test temperature： 500 W flame Position of the sample: Vertical Position of the flame: 20° to the vertical Flame duration: 5 x 15 seconds with 15 seconds flame break each Conditions:  - Paper flag up to maximum 25% charred - The sample must continue to burn for maximum 1 minute

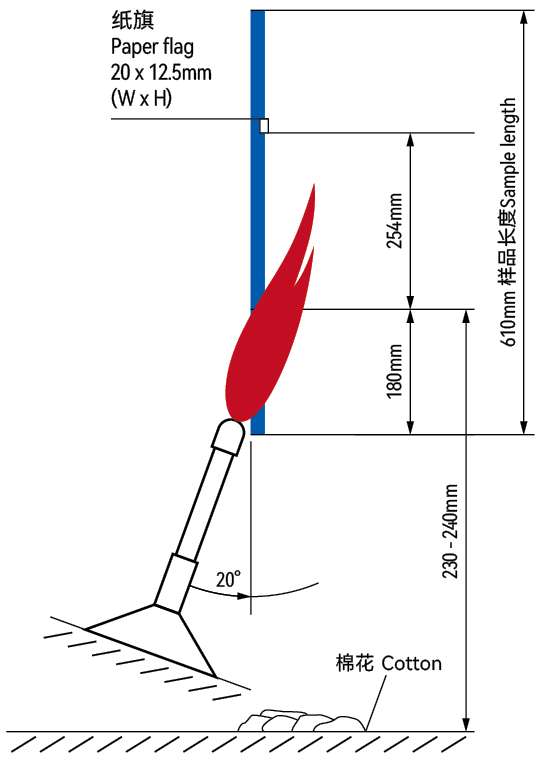

VW-1 Flame	UL 1581, § 1080 (VW-1 Flame Test) Length of the sample: 610mm Burner： Bunsen burner with additional air supply (Tirril gas burner) Ø9.5mm Test temperature： 500 W flame Position of the sample: Vertical Position of the flame: 20° to the vertical Flame duration: 5 x 15 seconds with 15 seconds flame break each Conditions: - Paper flag up to maximum 25% charred - The sample must continue to burn for maximum 1 minute - Time noted until the flame/sample is extinguished - Dripping material must not ignite the cotton lying under it

▊Test methods | Media tests

Test	Specification	Design

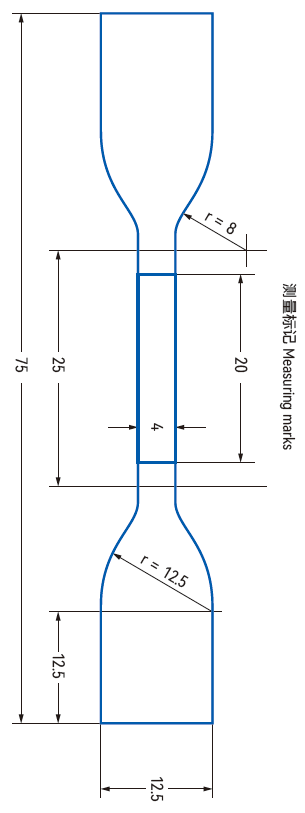

EN 50363-4-1	Testing of oil resistance for PVC jackets Test according to EN 60811-2-1, Clause 10 Test oil: IRM 902 Preparation of the sample according to EN 60811-501 Test temperature: 90±2° Test duration: 7x 24hrs Followed by storage at room temperature of at least 16hrs, but not longer than 24hrs Maximum alteration of tensile strength: ±30% Maximum elongation at break: ±30%
EN 50363-10-2	Testing of oil resistance for PUR jackets Test according to EN 60811-2-1, Clause 10 Test oil: IRM 902 Preparation of the sample according to EN 60811-501 Test temperature: 100±2° Test duration: 7x 24hrs Followed by storage at room temperature of at least 16hrs, but not longer than 24hrs Maximum alteration of tensile strength: ±40% Minimum median elongation at break: 300% Maximum elongation at break: ±30%
EN 60811-404	Testing of oil resistance for TPE jackets Test according to EN 60811-2-1, Clause 10 Test oil: IRM 902 Preparation of the sample according to EN 60811-501 Test temperature: 100±2° Test duration: 7x 24hrs Followed by storage at room temperature of at least 16hrs, but not longer than 24hrs Maximum alteration of tensile strength: ±30% Maximum elongation at break: ±30%

▊Test methods | Low temperature tests

Test	Specification	Design

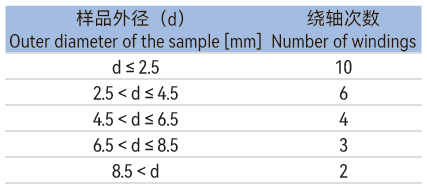

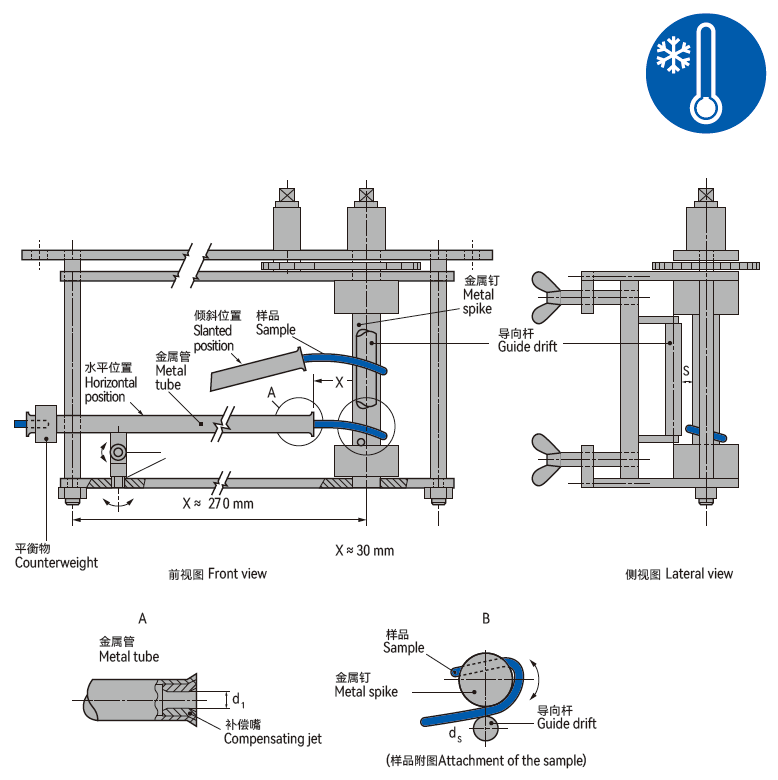

EN 60811-504	Bending test at low temperature for jacket Feed-through of the cold winding test according to 8.2 from EN 60811-504 Deviating from the standard also the outer diameter of the sample > 12.5mm Mandrel diameter 4-5 times the sample diameter (there must be at least 2 samples) Storage of the wound sample > 16hrs at test temperature Heat to room temperature When viewed with the naked eye or visual aid without magnification, there should not be any cracks in the outer jacket

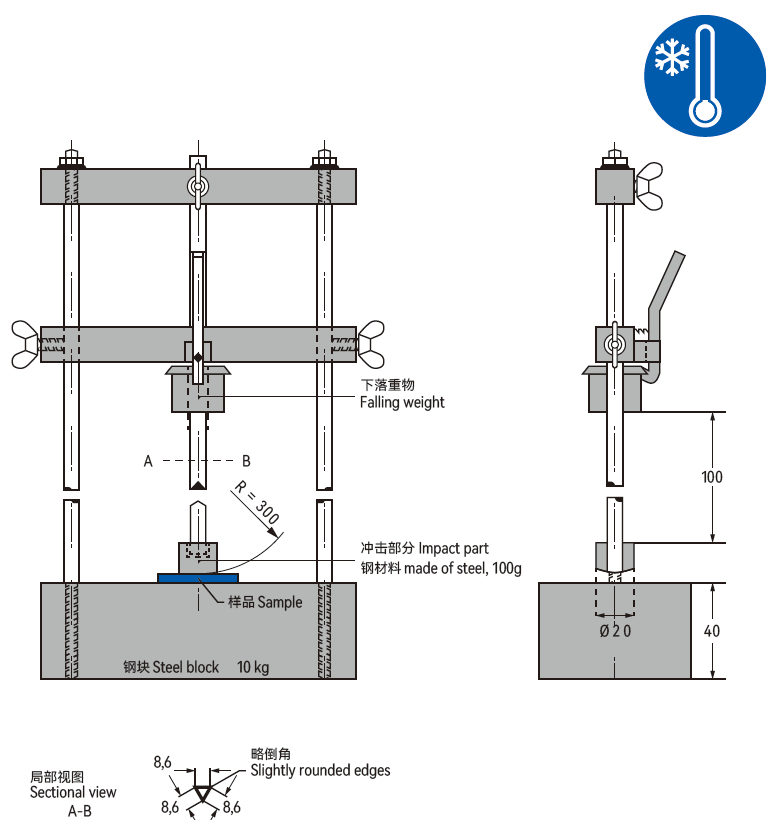

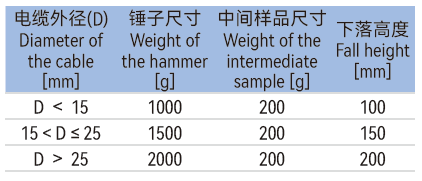

EN 50305	Low temperature impact test for jacket Feed-through of the cold impact test according to 8.5 from EN 60811-504 Selection criteria according to 5.1 from EN 50305 3 pieces, length at least 5x the outer diameter or 150mm Storage of the wound sample > 16hrs at test temperature Heat to room temperature When viewed with the naked eye or visual aid without magnification, there should not be any cracks in the outer jacket

▊Test methods | Motion tests

Test	Specification	Design

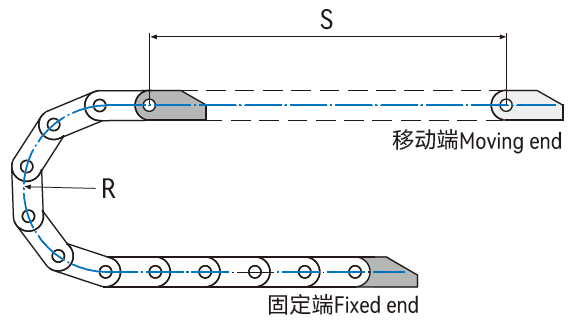

CSB® test： "Short travel" in DURAMOV®	Horizontal travel Travel length S: up to about 2m Temperature: approx. from -5°C to +35°C Bending factor: according to the catalogue (approx. 5 – 7.5 x d) Target: minimum 5,000,000 double strokes

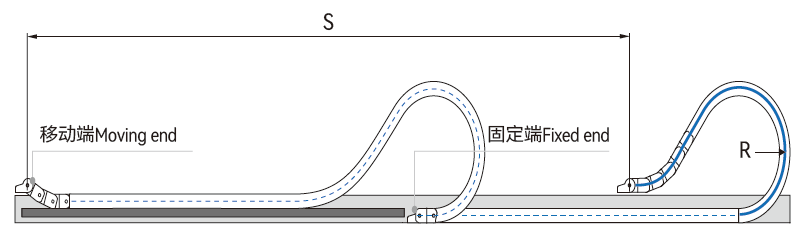

CSB® test： "Long travel" in DURAMOV®	Horizontal travel Travel length S: up to about 20m Temperature: approx. from -10°C to +40°C Bending factor: according to the catalogue (approx. 5 – 7.5 x d) Target: minimum 5,000,000 double strokes
CSB® test： "Torsion test"	Twisted length S: about 1m Rotation angle: according to catalogue (about ±180°) Target: minimum 5,000,000 cycles

● When does the service life guarantee apply?

    The FLEXMOV® guarantee is valid within the number of double cycles specified by CSB or within 36 months from the date of delivery, whichever comes first.

● When is there a guarantee claim?

    A guarantee claim is deemed to exist if the FLEXMOV® cable supplied is demonstrably not free from material and manufacturing defects.
   In concrete terms, this means that the FLEXMOV® cable wears out before the end of the guarantee period or the guaranteed number of double strokes due to natural wear and tear during normal use.

● When is there no guarantee claim?

    The guarantee claim expires in the event of mechanical damage and damage caused by incorrect installation or improper use of the cable.

● When does the guarantee start?

    The guarantee is valid for new purchases as of 01/07/2021, starting with the delivery date of FLEXMOV® flexibe cables.

● When does the guarantee end?

    The guarantee ends at the end of 36 months period, starting from the date of delivery.

● What is the scope of the guarantee?

    For the given guarantee period, CSB provides a free replacement (delivery ex works). This applies only to CSB FLEXMOV® components that fail due to wear and tear.

● Is the guarantee prolonged due to the delivery of a replacement?

    Shipping of replacement parts does not extend the guarantee period.

● Is there a guarantee for the cable chain used?

    We also offer a guarantee of up to 36 months on the DURAMOV® cable chains  used.

● In which countries does the FLEXMOV® guarantee apply?

    The FLEXMOV® guarantee is valid around the world..

● How do I submit a guarantee claim?

    In the event of a guarantee claim, please contact our sales team, who will be happy to take care of your request.
