Product Features

● For soft shafts

● Excellent wear resistance

● Operation temperatures up to +200 ℃

● Good resistance to chemicals

● High elasticity

Material properties	Standard	Unit	CSB-EPB26
General properties
Color	-	-	White
Density	ISO1183	g/cm³	1.51
Max. moisture absorption, 50%RH	ISO62	%	0.1
Max. water absorption	ISO62	%	0.2
Coefficient of sliding friction(steel)	ITS025	µ	0.15-0.20
Max. PV value	ITS026	N/mm²×m/s	0.50
Mechanical properties
Flexural modulus	ISO178	MPa	4500
Flexural strength	ISO178	MPa	95
Max. static load	ITS027	MPa	55
Max. dynamic load	ITS028	MPa	22
Shore hardness	ISO868	D	74
Physical and thermal properties
Long-term application temperature	ITS029	℃	+200
Short-term application temperature	ITS029	℃	+240
Lowest application temperature	ITS029	℃	-40
Thermal conductivity	ISO22007	W/m/K	0.24
Coefficient of thermal expansion	ISO11359	K^-1×10^-5	3
Flammability	UL94	Class	V0
Electrical properties
Volume resistance	IEC60093	Ω·cm	>10¹²
Surface resistance	IEC60093	Ω	>10¹²

*ITS: CSB company's internal test standards. **Test temperatures are 23℃ unless otherwise stated.

Sleeve bearing

Flange bearing

Thrust washer

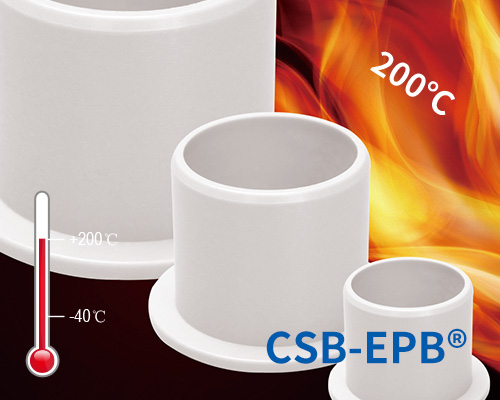

EPB26 Plastic plain bearings

Part no.:

d1 [mm]：

d2 [mm]：

L_h13 [mm]：

d3_d13 [mm]：

T [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2-max. [mm]：

d2-min. [mm]：

T max. tolerance [mm]：

T min. tolerance [mm]：

Max. shaft [mm]：

Min. shaft [mm]：

Max. housing [mm]：

Min. housing [mm]：

*Lead time [wsk]：

Download CAD

Cart

Shopping

Dimensions

▊ PV value

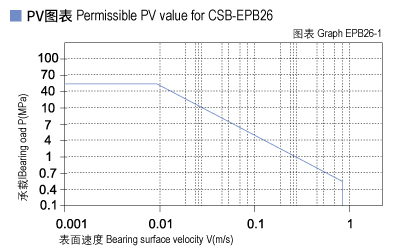

The max PV value of the CSB-EPB26 plastic bearings is 0.5N/mm²×m/s which determines the load capacity of bearing is inversely proportional to the speed. Please refer to the chart for more detailed information (Graph EPB26-1).

EPB26_01-Plastic plain bearings PV value.jpg

▊ Load, speed and temperature

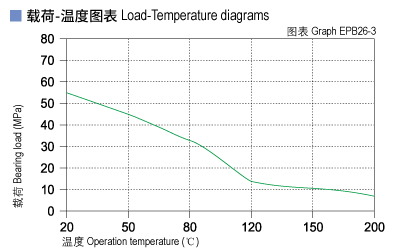

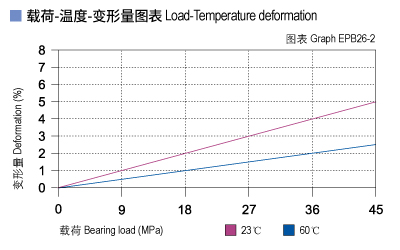

CSB-EPB26 allows the Max static load of 55Mpa, The max compressive deformation rate under the max load is listed in Graph EPB26-1, The actual load capacity of bearing is slightly less than 55Mpa, The bearing load is variable against the speed and temperature, Fast speed (Vmax: 0.9m/s) results into higher temperature (Tmax: 200℃) which decreases the load capacity of the bearing. Please refer to the Graph EPB26-3 for such variation.

EPB26_02-Plastic plain bearings load.jpg EPB26_03-Plastic plain bearings load and tepmerature.jpg

▊ Friction factor, wear and shaft material

▊ Friction factor

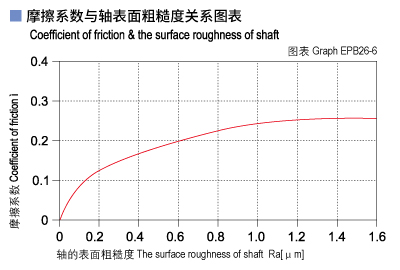

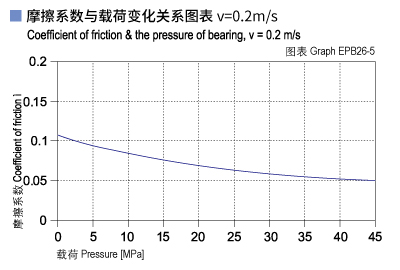

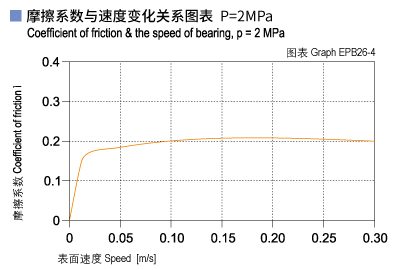

Graph EPB26-4 shows the friction factor of CSB-EPB26 is not obviously effected by the operation speed when the loading is stable and Graph EPB26-5 shows it will be decreasing along with the loading is increased from 0 to 45 Mpa when the operation speed is unchanged. The friction factor of CSB-EPB26 is increased along with the increasing of the shaft roughness. The recommended shaft roughness is Ra0.1 to Ra0.6.

CSB-EPB26	Dry	Grease	Oil	Water
Friction coef. μ	0.15~0.20	0.09	0.04	0.04

EPB26_04-Plastic plain bearings friction and speed.jpg EPB26_05-Plastic plain bearings friction and load.jpg EPB26_06-Plastic plain bearings friction and surface roughness of shaft.jpg

▊ Wearing and shaft material

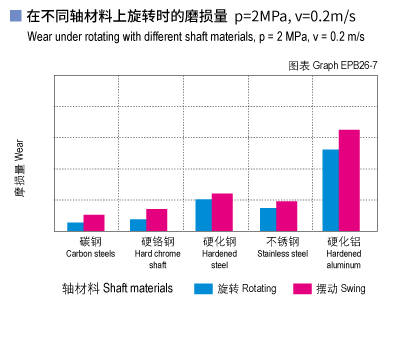

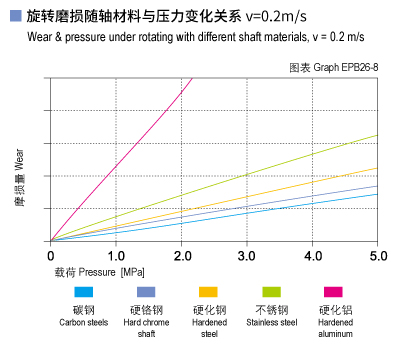

Graph EPB26-7 and Graph EPB26-8 tells that the CSB-EPB26 is very good for Hardened shaft and soft shaft and it features excellent both on hardened steel shaft and stainless steel shaft but the hardened aluminum shaft is not good for CSB-EPB26 bearings. The wear of CSB-EPB26 is better on rotation operation than on oscillation operation.

EPB26_07-Plastic plain bearings wear and shaft materials.jpg EPB26_08-Plastic plain bearings wear and load.jpg

▊ Chemical resistance

The Chemical Resistance of CSB-EPB26 is fairly good against most of Acid and Alkalis.

▊ Water absorption

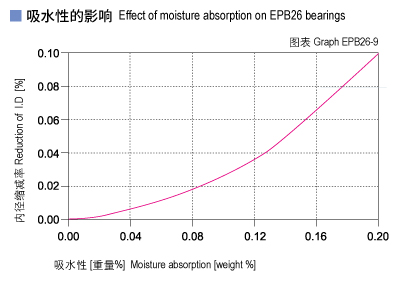

The moisture absorption of CSB-EPB26 plastic plain bearings is 0.1% in standard atmosphere. The max. water absorption is 0.2% in water . These values are very low, CSB-EPB26 plastic palin bearings is very well suited for used in wet applications.

EPB26_09-Plastic plain bearings moisture absorption.jpg

▊ UV resistance

Disintegration could be possible for the material CSB-EPB26 after long period of exposing under the UV ray and therefore the compressive strength will be reduced.

▊ Installation tolerances

CSB-EPB26 Tolerances after pressfit

Diameter [mm]	CSB-EPB26 E10 [mm]	Housing H7 [mm]	Shaft h9 [mm]
>0～3	+0.014～+0.054	0～+0.010	0～-0.025
>3～6	+0.020～+0.068	0～+0.012	0～-0.030
>6～10	+0.025～+0.083	0～+0.015	0～-0.036
>10～18	+0.032～+0.102	0～+0.018	0～-0.043
>18～30	+0.040～+0.124	0～+0.021	0～-0.052
>30～50	+0.050～+0.150	0～+0.025	0～-0.062
>50～80	+0.060～+0.180	0～+0.030	0～-0.074
>80～120	+0.072～+0.212	0～+0.035	0～-0.087
>120～180	+0.085～+0.245	0～+0.040	0～-0.100

Medium	EPB26 bearings resistance
Alcohol	Resistant
Hydrocarbons	Resistant
Greases. oils	Resistant
Fuels	Resistant
Diluted acids	Conditionally resistant
Strong acids	Conditionally resistant
Diluted alkalis	Resistant
Strong alkalis	Resistant

CSB® Bearing Material Chemical Resistance

Please select bearing material and medium...

CSB® bearing material chemical resistance data is a comparison test result of the CSB chemistry laboratory using laboratory specimens or similar chemicals at room temperature 23 ℃, without considering the impact of other temperatures and chemical medium mixtures on the chemical resistance of CSB® bearing materials ; Therefore, this data can only act as a reference. CSB® recommends that the chemical resistance of actual parts should be tested under application conditions and verify the suitability of the bearings.
