Standard design;
Various materials for shaft and lead screw;
Maintenance-free and optionally corrosion resistant;
Temperature resistant up to +60 ℃;
Polymer-tech SolutionsTM

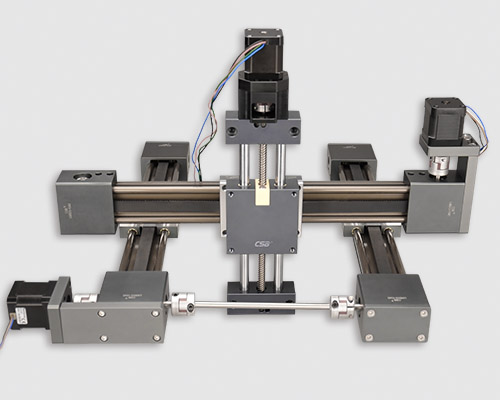

E-MATIC® automation technology is based on maintenance free sliding friction as a motion pair to achieve maintenance free, low noise, longer service life, and lightweight design of automation module components and robots. The linear modules and linear robots use LIN linear liners and aluminum alloy guide rails with the hard anodized surface for a good friction pair, combined with stepper motors or servo motors to perform maintenance free operation; The PPU transfer units with the compact guide rails design for small space, and uses high-precision and high-speed sliders for maintenance free and point-to-point efficient and precise handling operations. Continuous development and testing of maintenance free components for automation and robots in CSB...
Standard design;
Various materials for shaft and lead screw;
Maintenance-free and optionally corrosion resistant;
Temperature resistant up to +60 ℃;
LMR linear modules and linear robots use LIN linear liners and aluminum alloy guide rails with the hard anodized surface for a good friction pair, combined with stepper motors or servo motors to perform maintenance ...
This motor cable directly exit from the housing, They are suitable for installation in an extra housing or for the machine equipment in cleaning the environment; Stepper motor driver is based on PID current control...
The coupling connects the drive shaft of the axis to the Motor, An elastic polymer insert in the centre of the coupling transfers the motor torque, This damping element compensates for radial and axial clearance...
● Plastic indicator for adjustment and direct reading of slider position
● Can be combined with lead screw clamps and hand wheels
● Reduction sleeves included
● Lead screw clamps for attachment to the position indicator and subsequent mounting on the lead screw
● Provides a mechanical brake to the lead screw
● Aluminum clamp with handle, anodized surface
● Rotary knob: defined standard for complete units
● Different outer-diameters available
The compact and easy assembly of the proximity switches; The plastic housing design makes the proximity switches, which can be used as limit, position or reference switches
Aluminum alloy material, Hard anodized surface of sliding; Maintenance-free linear slide guides providing virtually limitless design freedom; Lubrication-free and dirt-resistant...
Aluminum alloy material, Hard anodized surface of sliding; Maintenance-free linear slide guides providing virtually limitless design freedom; Lubrication-free and dirt-resistant...
AS: Hard anodized aluminum shaft, the best shaft for LIN linear bearings; CS: Hard-chromed steel shaft, the effective-cost shaft; ES: 304 Stainless steel shaft, the best for chemical liquid; Shaft end processing service...
High flexible cables are designed for highly bending and continuous motion applications and used for cable chains, robots, auto-drive systems, etc ...
CSB-LIN®P precision linear bearings with higher load carrying capacity and extremely low operating noise. The liners are made of TEFPLAS® for maintenance-free and low friction coefficient, operation temperature ±200℃...
CSB-LIN®Q square linear guide system ensures linear, torqueresistant motion are ideally suited for the unsupported applications. Due to the hollow design of the surface hard anodized aluminum alloy square rail …
CSB-LIN® maintenance free plastic linear bearings. Low noise operation is suitable for continuously applications under the extremely dusty environment. It is washable by the clean detergent of the food machine …
DURAMOV® cable chains are made of high strength and anti-wear plastics, The cable chains are used in a variety of motion modes and strokes. DURAMOV® cable chains can carry FLEXMOV® flexible cables and energy hoses...
