Product Features

● An excellent self-lubricated material suitable for impact resistance applications which is widedly used under the evironment of impact absorbing and weare resistance requirement

● Continuous working temperature: -40℃/+80℃

● High load capacity, Impact resistance

● Low cost

● Dry operation and maintenance free

● Good for Marginal Load

● Suitable for low speed operation

Material properties	Standard	Unit	CSB-EPB3M
General properties
Color	-	-	Dark grey
Density	ISO1183	g/cm³	1.14
Max. moisture absorption, 50%RH	ISO62	%	1.4
Max. water absorption	ISO62	%	7.6
Coefficient of sliding friction(steel)	ITS025	µ	0.09-0.30
Max. PV value	ITS026	N/mm²×m/s	0.15
Mechanical properties
Flexural modulus	ISO178	MPa	2700
Flexural strength	ISO178	MPa	100
Max. static load	ITS027	MPa	30
Max. dynamic load	ITS028	MPa	15
Shore hardness	ISO868	D	79
Physical and thermal properties
Long-term application temperature	ITS029	℃	+80
Short-term application temperature	ITS029	℃	+170
Lowest application temperature	ITS029	℃	-40
Thermal conductivity	ISO22007	W/m/K	0.24
Coefficient of thermal expansion	ISO11359	K^-1×10^-5	10
Flammability	UL94	Class	HB
Electrical properties
Volume resistance	IEC60093	Ω·cm	>10¹²
Surface resistance	IEC60093	Ω	>10¹¹

*ITS: CSB company's internal test standards. **Test temperatures are 23℃ unless otherwise stated.

Sleeve bearing

Flange bearing

Thrust washer

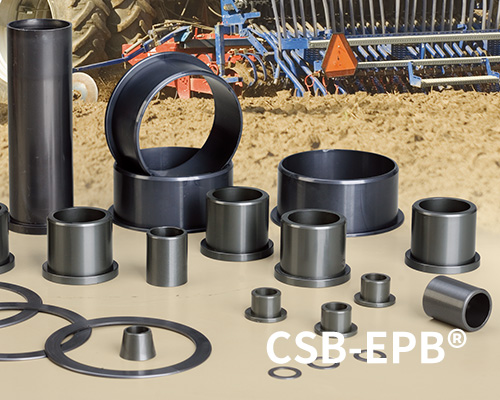

EPB3M Plastic plain bearings

Part no.:

d1 [mm]：

d2 [mm]：

L_h13 [mm]：

d3_d13 [mm]：

T [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2-max. [mm]：

d2-min. [mm]：

T max. tolerance [mm]：

T min. tolerance [mm]：

Max. shaft [mm]：

Min. shaft [mm]：

Max. housing [mm]：

Min. housing [mm]：

*Lead time [wsk]：

Download CAD

Cart

Shopping

Dimensions

▊ PV value

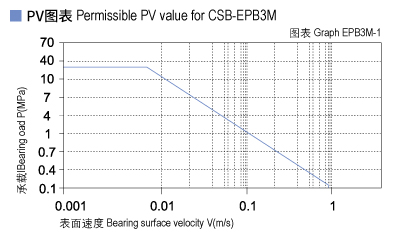

The max PV value of the CSB-EPB3M plastic bearings is 0.15N/mm²×m/s which determines the load capacity of bearing is inversely proportional to the speed. Please refer to the chart for more detailed information (Graph EPB3M-1).

EPB3M_01-Plastic plain bearings PV value.jpg

▊ Load, speed and temperature

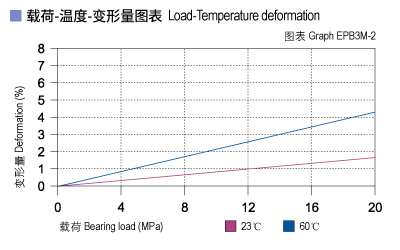

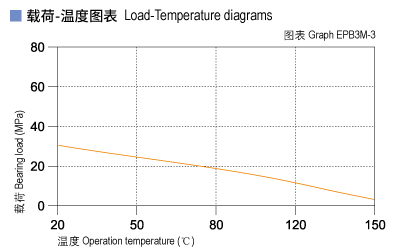

CSB-EPB3M allows the Max static load of 30Mpa, The max compressive deformation rate under the max load is listed in Graph EPB3M-2, The actual load capacity of bearing is slightly less than 30Mpa, The bearing load is variable against the speed and temperature, Fast speed (Vmax: 0.8m/s) results into higher temperature (Tmax: 80℃) which decreases the load capacity of the bearing. Please refer to the Graph EPB3M-3 for such variation.

EPB3M_02-Plastic plain bearings load.jpg EPB3M_03-Plastic plain bearings load and tepmerature.jpg

▊ Friction factor, wear and shaft material

▊ Friction factor

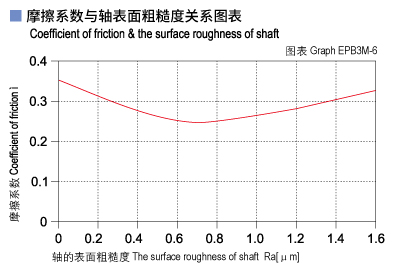

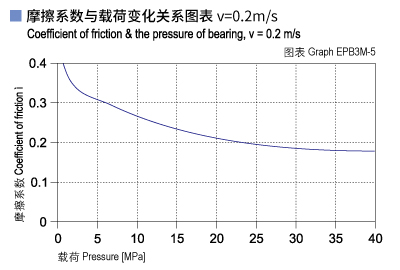

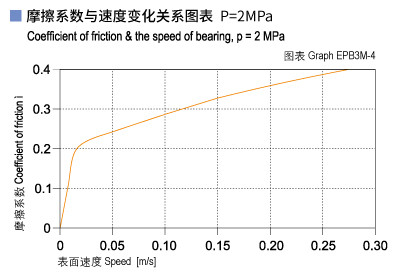

CSB-EPB3M Bearing Friction factor is increased along with the increasing of the operation speed (See Graph EPB3M-4) therefore it is suitable for the application under low speed operation. The friction factor of CSB-EP3M is decreased along with the loading increasing (see Graph EPB3M-5). The friction factor and wearing of the bearing is considerably affected by the counter shaft roughness. The Graph EPB3M-6 shows that the bearing could achieve its best performance when the counter shaft surface roughness is around Ra0.6.

CSB-EPB3M	Dry	Grease	Oil	Water
Friction coef. μ	0.09~0.30	0.09	0.04	0.04

EPB3M_04-Plastic plain bearings friction and speed.jpg EPB3M_05-Plastic plain bearings friction and load.jpg EPB3M_06-Plastic plain bearings friction and surface roughness of shaft.jpg

▊ Wearing and shaft material

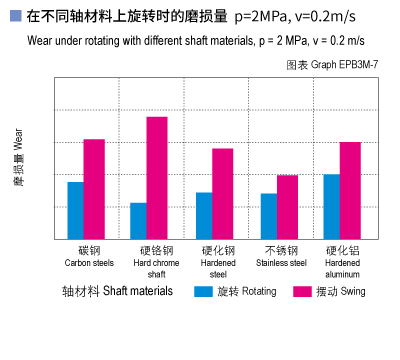

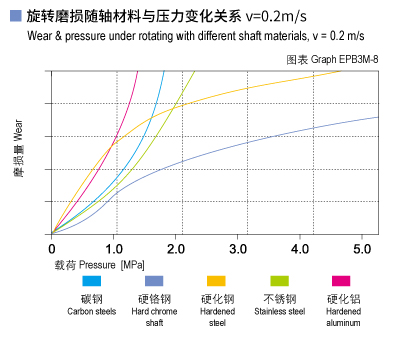

Test of the bearing against various shaft materials shows that the material CSB-EPB3M features the wearing performance of the material is not sensitive with different materials where the loading is over 2Mpa. (See Graph EPB3M-7). The bearing performance remains the best when the loading is in the lower range. When the loading is increased, the wearing will be sharply increased. From the Graph EPB3M-8, the CSB-EPB3M material is better for the application with the counter shaft material of hard chrome steel. Graph EPB3M-7 shows that the material is better for rotation operation than oscillation operation.

EPB3M_07-Plastic plain bearings wear and shaft materials.jpg EPB3M_08-Plastic plain bearings wear and load.jpg

▊ Chemical resistance

CSB-EPB3M is good at chemical resistance against weak acidic medium and various kinds of lubricants.

▊ Water absorption

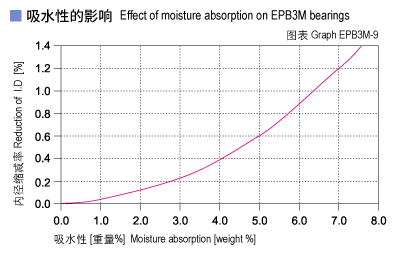

The moisture absorption of CSB-EPB3M plastic plain bearings is 1.4% in standard atmosphere. The max. water absorption is 7.6% in water. The application environment has to be considered due to the high water absorbtion properties.

EPB3M_09-Plastic plain bearings moisture absorption.jpg

▊ UV resistance

CSB-EPB3M can maintain its color unchanged when it is exposed into the UV ray. The material performance stays stable.

▊ Installation tolerances

CSB-EPB3M Tolerances after pressfit

Diameter [mm]	CSB-EPB3M D11 [mm]	Housing H7 [mm]	Shaft h9 [mm]
>0～3	+0.020～+0.080	0～+0.010	0～-0.025
>3～6	+0.030～+0.105	0～+0.012	0～-0.030
>6～10	+0.040～+0.130	0～+0.015	0～-0.036
>10～18	+0.050～+0.160	0～+0.018	0～-0.043
>18～30	+0.065～+0.195	0～+0.021	0～-0.052
>30～50	+0.080～+0.240	0～+0.025	0～-0.062
>50～80	+0.100～+0.290	0～+0.030	0～-0.074
>80～120	+0.120～+0.340	0～+0.035	0～-0.087
>120～180	+0.145～+0.395	0～+0.040	0～-0.100

Medium	EPB3M bearings resistance
Alcohol	Resistant
Hydrocarbons	Resistant
Greases. oils	Resistant
Fuels	Resistant
Diluted acids	Conditionally resistant
Strong acids	Not resistant
Diluted alkalis	Resistant
Strong alkalis	Conditionally resistant

CSB® Bearing Material Chemical Resistance

Please select bearing material and medium...

CSB® bearing material chemical resistance data is a comparison test result of the CSB chemistry laboratory using laboratory specimens or similar chemicals at room temperature 23 ℃, without considering the impact of other temperatures and chemical medium mixtures on the chemical resistance of CSB® bearing materials ; Therefore, this data can only act as a reference. CSB® recommends that the chemical resistance of actual parts should be tested under application conditions and verify the suitability of the bearings.
