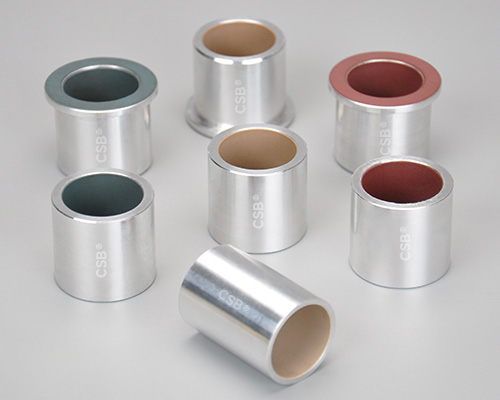

▊Sliding layer materials TEFPLAS®
TEFPLAS® B is a standard sliding layer material. It combines high load bearing and wear resistance performance , suitable for hard shafts ≥HRC35 or hard anodized aluminum shafts.
TEFPLAS® G has excellent wear resistance, lower starting friction force, suitable for hard shafts or hard anodized aluminum shafts.
TEFPLAS® E FDA food contact safety materials, suitable for stainless steel shaft or aluminum shaft.
TEFPLAS® P FDA food contact safety materials, suitable for soft shafts.
| Materials | Friction coef. dry [u] | Max. static load [Mpa] | Max. dynamic load [Mpa] | Max. PV [N/mm2xm/s] | Max. Speed ,dry [m/s] | Operation temp. [℃] | |
| Continuous | Intermittent | ||||||
| TEFPLAS® B | 0.10-0.25 | 20 | 10 | 0.7 | 1.5 | 4.0 | ±200 |
| TEFPLAS® G | 0.10-0.20 | 16 | 8 | 0.6 | 1.0 | 3.0 | ±200 |
| TEFPLAS® E | 0.05-0.18 | 12 | 6 | 0.4 | 1.0 | 2.0 | ±200 |
| TEFPLAS® P | 0.05-0.18 | 10 | 5 | 0.5 | 1.0 | 2.0 | ±200 |
***For operation under extreme high temperature, it is necessary to consider increasing the fitting clearance to avoid stagnation caused by the high temperature expansion of the shaft and bearing. Please contact us.
