Product Features

● Clearance-free and preload design
● Adjustable fitting gap
● Standard material EPB13
● Maintenance-free
● Shock absorbing and no noise

Sleeve bearings

Flange bearing

Clearance-free and preloaded bearings

Part no.:

d1 [mm]：

d1-min. [mm]：

d1-max. [mm]：

d2 [mm]：

d3 [mm]：

b1 h13[mm]：

b2 h13[mm]：

b3 [mm]：

s ¡À0.1 [mm：

Max. shaft [mm]：

Min. shaft [mm]：

Max. housing [mm]：

Min. housing [mm]：

*Lead time [wks]：

Download CAD

Cart

Shopping

Dimensions

▊Structure design

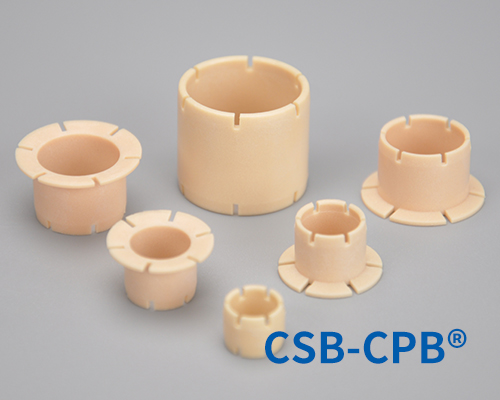

CSB-CPB® clearance-free and reloaded plastic bearings can be preloaded in radius and axial directions after fitted in housing, Auto-adjustable the fitting gap with the preload design;The special design bearings can absorbed shock and noise.

▊Material design

CSB-CPB® clearance-free and reloaded plastic bearings is made from the professional wear resistance material CSB-EPB13 which provides good wear resistance and excellent elastic feature. CSB-EPB18 material is available for the preload plastic bearings.

▊Assembly design

CSB-CPB® clearance-free and reloaded plastic bearings easy to be pressed into the housing by low pressure.The recommended housing tolerance is H7 and axial tolerance is h9.

CPB无间隙预紧塑料轴承安装

Medium	CPB bearings resistance
Alcohol	Resistant
Hydrocarbons	Resistant
Greases. oils	Resistant
Fuels	Resistant
Diluted acids	Conditionally resistant
Strong acids	Not resistant
Diluted alkalis	Resistant
Strong alkalis	Conditionally resistant

CSB® Bearing Material Chemical Resistance

Please select bearing material and medium...

CSB® bearing material chemical resistance data is a comparison test result of the CSB chemistry laboratory using laboratory specimens or similar chemicals at room temperature 23 ℃, without considering the impact of other temperatures and chemical medium mixtures on the chemical resistance of CSB® bearing materials ; Therefore, this data can only act as a reference. CSB® recommends that the chemical resistance of actual parts should be tested under application conditions and verify the suitability of the bearings.

CSB-CPB® Clearance-free and preloaded bearings 4545

Time 09-2021

Type PDF

No. CSB/CAT.062E

Size 503KB

4545

download

CSB-EPB®

Plain bearings finder v2.1

view tools

CSB-EPB® Plain bearings finder V2.1

▊CSB-EPB® Plastic Bearings Finder[V2.1] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations material data by entering parameters such as bearing load, speed, and temperature, and finally output material adaptation data.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the bearing must be tested again to verify whether it meets the actual use requirements.
▊CSB-EPB® Plastic Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.

Use Tools
