Product Features

● Suitable for the application where the CSB® plastic clip bearing is hard to be located. The requirement of the fitting hole is not critical and the set screw could be secured without any risk of moving.
● Maintenance free, self-lubricated;
● Bolt fixture ensures safe and reliability;
● Suitable for rotation, oscillation and sliding motions;
● Low tolerance requirement for the mounting holes.

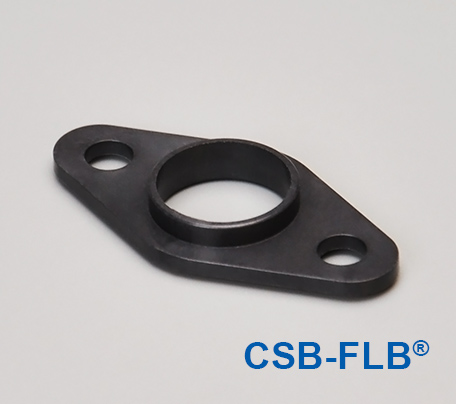

Material:CSB-EPB3

Material:CSB-EPB13

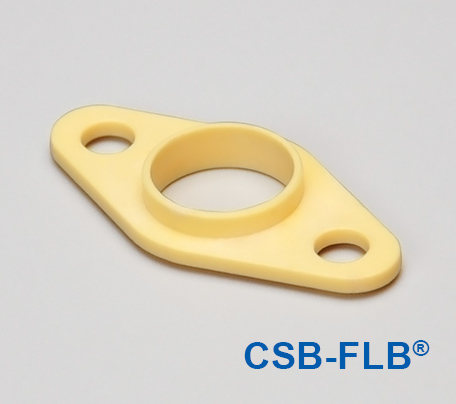

Material:CSB-EPB5

Plastic flange bearings

Part no.:

d1 [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2 [mm]：

d3 [mm]：

d4 [mm]：

d5 [mm]：

d6 [mm]：

d7 ¡À0.2 [mm：

b1 [mm]：

b2 [mm]：

b3 [mm]：

R [mm]：

Max. shaft [mm]：

Min. shaft [mm]：

Max. housing [mm]：

Min. housing [mm]：

*Lead time [wks]：

Download CAD

Cart

Shopping

Dimensions

▊Structure design

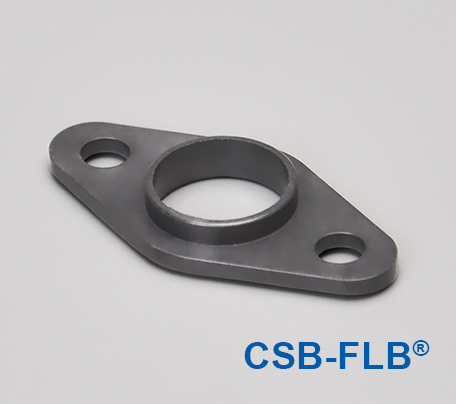

CSB-FLB® ﬂange bearing is designed without housing fixture, no tolerance requirement for housing. With the bolt fixture structure, the bearings are reliably operated when housing is not possible to be designed.

▊Material design

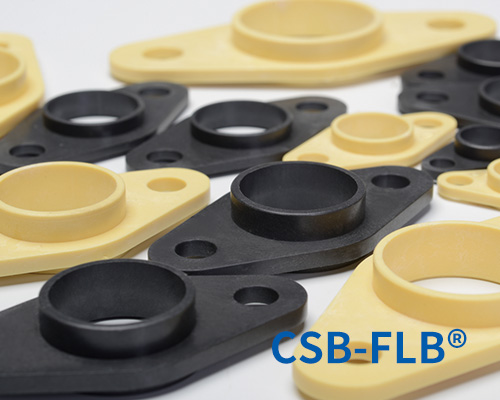

CSB-FLB® is made from CSB-EPB3 material which is a solid material with good self-lubricating performance and anti-wear feature suitable for dry operation conditions. At the same time, CSB also provides ﬂange bearings with different materials such as low friction CSB-EPB13, high temperature material CSB-EPB5 and FDA approved CSB-M70 etc.

▊Assembly design

The bolt fixture designation of the ﬂanged bearing ensures a long term reliable operation of the bearings. Although there is no matching housing tolerance requirement, a better operation condition could be achieved if a recommended housing tolerance of H7 is available.

FLB塑料法兰轴承安装

Medium	FLB3 bearings resistance
Alcohol	Resistant
Hydrocarbons	Resistant
Greases. oils	Resistant
Fuels	Resistant
Diluted acids	Conditionally resistant
Strong acids	Not resistant
Diluted alkalis	Resistant
Strong alkalis	Conditionally resistant

CSB® Bearing Material Chemical Resistance

Please select bearing material and medium...

CSB® bearing material chemical resistance data is a comparison test result of the CSB chemistry laboratory using laboratory specimens or similar chemicals at room temperature 23 ℃, without considering the impact of other temperatures and chemical medium mixtures on the chemical resistance of CSB® bearing materials ; Therefore, this data can only act as a reference. CSB® recommends that the chemical resistance of actual parts should be tested under application conditions and verify the suitability of the bearings.

CSB-FLB® Plastic flange bearings 4981

Time 09-2021

Type PDF

No. CSB/CAT.062E

Size 504KB

4981

download
