Product Features

● Low friction and high wear resistance. It could maintain a good stable wear resistance and friction factor for the rotation, linear and oscilation movement. It has no critical hardness requirement to the shaft

● Continuous working temperature: -50℃/+90℃

● Maintenance-free dry operation

● Small wear off amount against various shaft materials

● Lower friction

● Suitable for soft shaft

● Low water absorption

Material properties	Standard	Unit	CSB-EPB13
General properties
Color	-	-	Yellow
Density	ISO1183	g/cm³	1.48
Max. moisture absorption, 50%RH	ISO62	%	0.3
Max. water absorption	ISO62	%	1.3
Coefficient of sliding friction(steel)	ITS025	µ	0.05-0.15
Max. PV value	ITS026	N/mm²×m/s	0.40
Mechanical properties
Flexural modulus	ISO178	MPa	2600
Flexural strength	ISO178	MPa	60
Max. static load	ITS027	MPa	35
Max. dynamic load	ITS028	MPa	14
Shore hardness	ISO868	D	74
Physical and thermal properties
Long-term application temperature	ITS029	℃	+90
Short-term application temperature	ITS029	℃	+120
Lowest application temperature	ITS029	℃	-50
Thermal conductivity	ISO22007	W/m/K	0.25
Coefficient of thermal expansion	ISO11359	K^-1×10^-5	10
Flammability	UL94	Class	HB
Electrical properties
Volume resistance	IEC60093	Ω·cm	>10¹³
Surface resistance	IEC60093	Ω	>10¹²

*ITS: CSB company's internal test standards. **Test temperatures are 23℃ unless otherwise stated.

Sleeve bearing

Flange bearing

Thrust washer

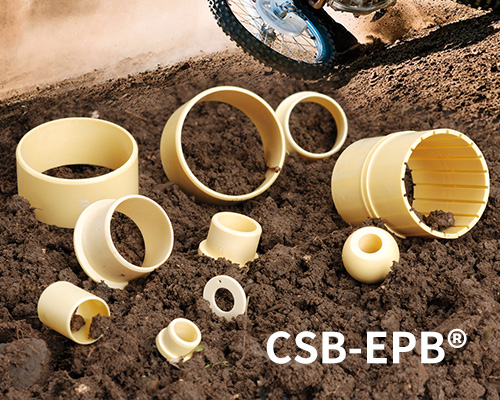

EPB13 Plastic plain bearings

Part no.:

d1 [mm]：

d2 [mm]：

L_h13 [mm]：

d3_d13 [mm]：

T [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2-max. [mm]：

d2-min. [mm]：

T max. tolerance [mm]：

T min. tolerance [mm]：

Max. shaft [mm]：

Min. shaft [mm]：

Max. housing [mm]：

Min. housing [mm]：

*Lead time [wsk]：

Download CAD

Cart

Shopping

Dimensions

▊ PV value

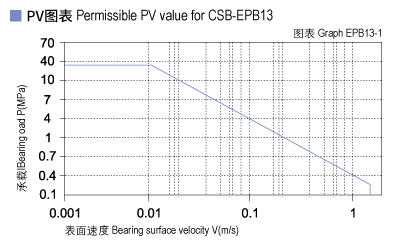

The max PV value of the CSB-EPB13 plastic bearings is 0.4N/mm²×m/s which determines the load capacity of bearing is inversely proportional to the speed. Please refer to the chart for more detailed information (Graph EPB13-1).

EPB13_01-Plastic plain bearings PV value.jpg

▊ Load, speed and temperature

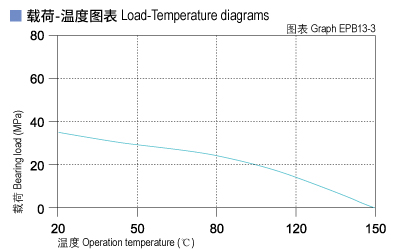

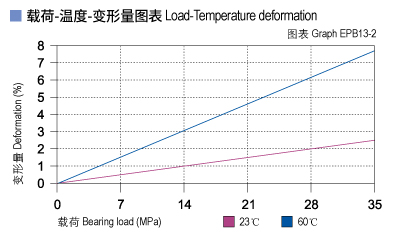

CSB-EPB13 allows the Max static load of 35Mpa, The max compressive deformation rate under the max load is listed in Graph EPB13-2, The actual load capacity of bearing is slightly less than 35Mpa, The bearing load is variable against the speed and temperature, Fast speed (Vmax: 1.5m/s) results into higher temperature (Tmax: 90℃) which decreases the load capacity of the bearing. Please refer to the Graph EPB13-3 for such variation.

EPB13_02-Plastic plain bearings load.jpg EPB13_03-Plastic plain bearings load and tepmerature.jpg

▊ Friction factor, wear and shaft material

▊ Friction factor

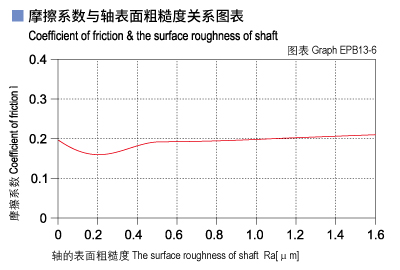

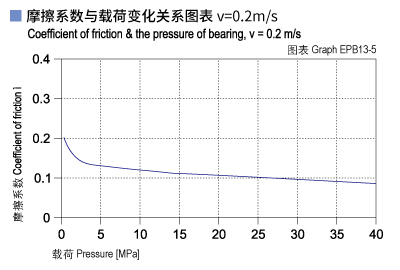

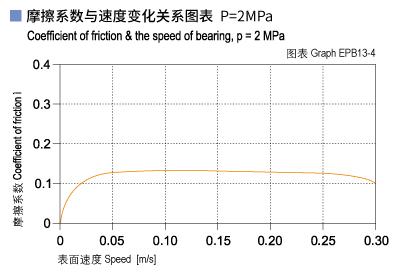

CSB-EPB13 Bearing friction factor varies only little amount along with the operation speed changing (See Graph EPB13-4). When the operation speed is relatively stable, the friction factor varies a lot while the load is less than 10Mpa (see Graph EPB13-5). At the same time, it does not vary much when the loading is greater than 10Mpa. Rough surface may result into the increasing of friction factor of the CSB-EPB13 material but when the roughness of the surface is greater than Ra0.5, the friction factor will remain relatively stable again. The recommended shaft surface roughness is Ra0.1~Ra0.4 for the CSB-EPB13 material.

CSB-EPB13	Dry	Grease	Oil	Water
Friction coef. μ	0.05~0.15	0.09	0.04	0.04

EPB13_04-Plastic plain bearings friction and speed.jpg EPB13_05-Plastic plain bearings friction and load.jpg EPB13_06-Plastic plain bearings friction and surface roughness of shaft.jpg

▊ Wearing and shaft material

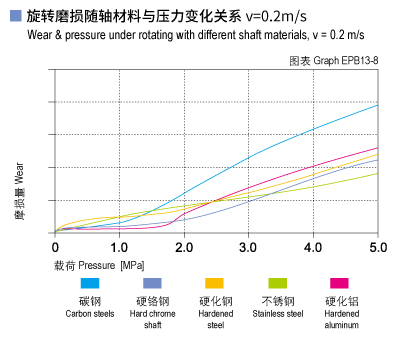

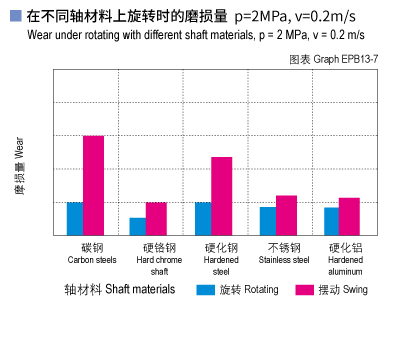

Test of the bearing against various shaft materials shows that the material CSB-EPB13 features the best performance where the shaft material is hard chrome steel with loading less than 2Mpa. (See Graph EPB13-7). Therefore, the higher the load is increased, the wear-resistance of the bearing will be better against the stainless steel shaft. Refer to Graph EPB13-7, the material CSB-EPB13 is suitable for rotation operation. Ether to be used under rotation operation or the oscillation operation, it is the best suitable material for the application against hard chrome steel shaft.

EPB13_07-Plastic plain bearings wear and shaft materials.jpg EPB13_08-Plastic plain bearings wear and load.jpg

▊ Chemical resistance

CSB-EPB13 is good at chemical resistance against mild base, weak acidic medium and various kinds of lubricants.

▊ Water absorption

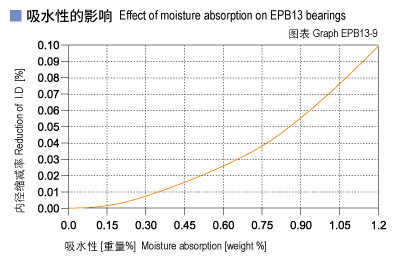

The moisture absorption of CSB-EPB13 plastic bearings is 0.3% in standard atmosphere. The max. water absorption is 1.3% in water. These values are so low that design changes due to absorption are only necessary in extreme applications.

EPB13_09-Plastic plain bearings moisture absorption.jpg

▊ UV resistance

CSB-EPB13 can maintain its color unchanged when it is exposed into the UV ray. The hardness, Compressive strength and wear resistance of the material is also stable under such condition.

▊ Installation tolerances

CSB-EPB13 bushing tolerances after pressfit

Diameter [mm]	Inner diameter E10 [mm]	Housing H7 [mm]	Shaft h9 [mm]
>0～3	+0.014～+0.054	0～+0.010	0～-0.025
>3～6	+0.020～+0.068	0～+0.012	0～-0.030
>6～10	+0.025～+0.083	0～+0.015	0～-0.036
>10～18	+0.032～+0.102	0～+0.018	0～-0.043
>18～30	+0.040～+0.124	0～+0.021	0～-0.052
>30～50	+0.050～+0.150	0～+0.025	0～-0.062
>50～80	+0.060～+0.180	0～+0.030	0～-0.074
>80～120	+0.072～+0.212	0～+0.035	0～-0.087
>120～180	+0.085～+0.245	0～+0.040	0～-0.100

Medium	EPB13 bearings resistance
Alcohol	Resistant
Hydrocarbons	Resistant
Greases. oils	Resistant
Fuels	Resistant
Diluted acids	Conditionally resistant
Strong acids	Not resistant
Diluted alkalis	Resistant
Strong alkalis	Conditionally resistant

CSB® Bearing Material Chemical Resistance

Please select bearing material and medium...

CSB® bearing material chemical resistance data is a comparison test result of the CSB chemistry laboratory using laboratory specimens or similar chemicals at room temperature 23 ℃, without considering the impact of other temperatures and chemical medium mixtures on the chemical resistance of CSB® bearing materials ; Therefore, this data can only act as a reference. CSB® recommends that the chemical resistance of actual parts should be tested under application conditions and verify the suitability of the bearings.
