Product Features

● Self-lubricated material for high temperature up to 250 ℃. With its high chemical resistance feature, it coul be used inside most common chemical liquids. It is a high load material for the applications of high temperature and critical chemical environments

● Continuous working temperature: -100℃/+250℃

● Suitable for high load operation

● High load capacity at higher temperature

● Good chemical resistance

● Low water absorption

● High pressure resistance

Material properties	Standard	Unit	CSB-EPB5
General properties
Color	-	-	Black
Density	ISO1183	g/cm³	1.44
Max. moisture absorption, 50%RH	ISO62	%	0.1
Max. water absorption	ISO62	%	0.5
Coefficient of sliding friction(steel)	ITS025	µ	0.09-0.25
Max. PV value	ITS026	N/mm²×m/s	1.40
Mechanical properties
Flexural modulus	ISO178	MPa	4800
Flexural strength	ISO178	MPa	165
Max. static load	ITS027	MPa	110
Max. dynamic load	ITS028	MPa	61
Shore hardness	ISO868	D	82
Physical and thermal properties
Long-term application temperature	ITS029	℃	+250
Short-term application temperature	ITS029	℃	+315
Lowest application temperature	ITS029	℃	-100
Thermal conductivity	ISO22007	W/m/K	0.55
Coefficient of thermal expansion	ISO11359	K^-1×10^-5	6
Flammability	UL94	Class	V0
Electrical properties
Volume resistance	IEC60093	Ω·cm	>10⁸
Surface resistance	IEC60093	Ω	>10⁷

*ITS: CSB company's internal test standards. **Test temperatures are 23℃ unless otherwise stated.

Sleeve bearing

Flange bearing

Thrust washer

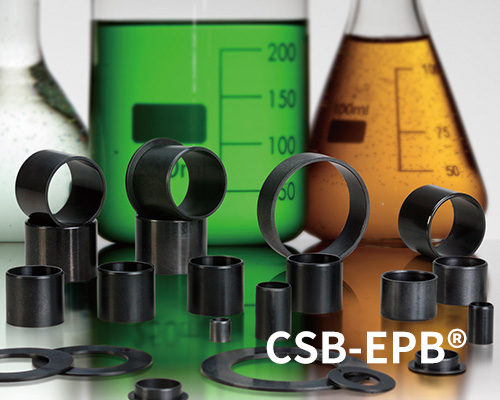

EPB5 Plastic plain bearings

Part no.:

d1 [mm]：

d2 [mm]：

L_h13 [mm]：

d3_d13 [mm]：

T [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2-max. [mm]：

d2-min. [mm]：

T max. tolerance [mm]：

T min. tolerance [mm]：

Max. shaft [mm]：

Min. shaft [mm]：

Max. housing [mm]：

Min. housing [mm]：

*Lead time [wsk]：

Download CAD

Cart

Shopping

Dimensions

▊ PV value

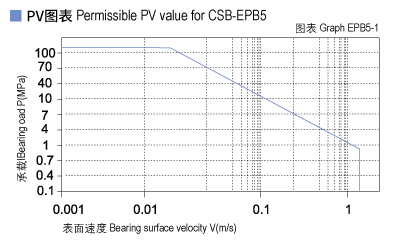

The max PV value of the CSB-EPB5 plastic bearings is 1.4N/mm²×m/s which determines the load capacity of bearing is inversely proportional to the speed. Please refer to the chart for more detailed information (Graph EPB5-1).

EPB5_01-Plastic plain bearings PV value.jpg

▊ Load, speed and temperature

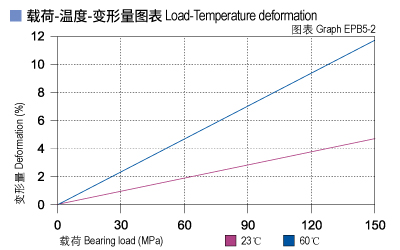

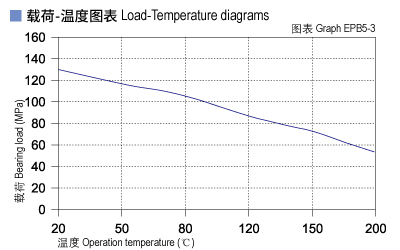

CSB-EPB5 allows the Max static load of 110Mpa, The max compressive deformation rate under the max load is listed in Graph EPB5-2, The actual load capacity of bearing is slightly less than 110Mpa, The bearing load is variable against the speed and temperature, Fast speed (Vmax: 1.5m/s) results into higher temperature (Tmax: 250℃) which decreases the load capacity of the bearing. Please refer to the Graph EPB5-3 for such variation.

EPB5_02-Plastic plain bearings load.jpg EPB5_03-Plastic plain bearings load and tepmerature.jpg

▊ Friction factor, wear and shaft material

▊ Friction factor

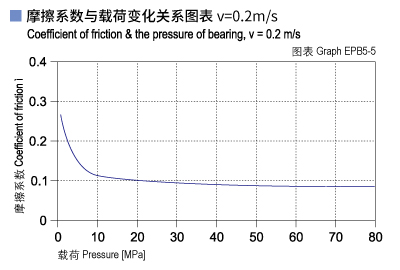

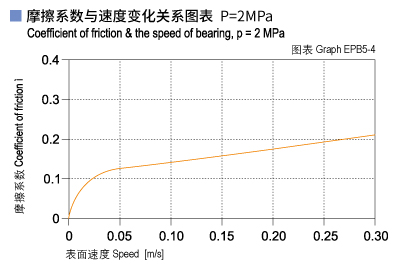

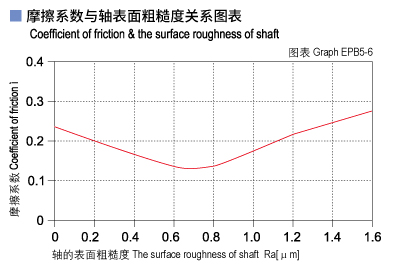

CSB-EPB5 Bearing Friction factor is increased along with the increasing of the operation speed under certain loading (See Graph EPB5-4). The friction factor of CSB-EP5 is decreased along with the loading increasing not over 20Mpa (see Graph EPB5-5). The friction factor will not change much along with the speed when the loading is over 20Mpa. The Graph EPB5-6 shows that the bearing could achieve its best performance when the counter shaft surface roughness is around Ra0.6 to Ra0.8.

CSB-EPB5	Dry	Grease	Oil	Water
Friction coef. μ	0.09~0.25	0.09	0.04	0.04

EPB5_04-Plastic plain bearings friction and speed.jpg EPB5_05-Plastic plain bearings friction and load.jpg EPB5_06-Plastic plain bearings friction and surface roughness of shaft.jpg

▊ Wearing and shaft material

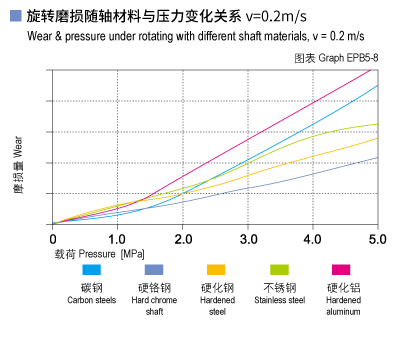

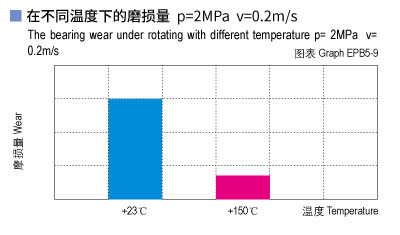

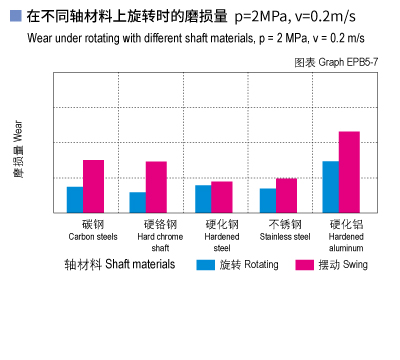

Graph EPB5-7 and Graph EPB5-8 show the test results of the material CSB-EPB5 running against different shaft materials. It is suitable for stainless steel and hot rolled carbon steel shaft when the loading is less than 2Mpa and it will be more suitable for heat treated steel and carbon steel shaft when the loading is over 2Mpa. Graph EPB5-7 shows CSB-EPB5 is good for rotation operation. Specially, from the Graph EPB5-9, it is read that CSB-EPB5 is with better performance under high temperature around 150℃ comparing with under the ambient temperature of 23℃.

EPB5_07-Plastic plain bearings wear and shaft materials.jpg EPB5_08-Plastic plain bearings wear and load.jpg EPB5_09-Plastic plain bearings wear and tepmerature.jpg

▊ Chemical resistance

Chemical Resistance of CSB-EPB5 is very good. It can work well in the heavy acid of 65%.

▊ Water absorption

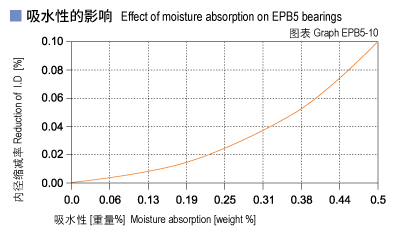

The moisture absorption of CSB-EPB5 plastic plain bearings is 0.1% in standard atmosphere. The max. water absorption is 0.5% in water . These values are very low, CSB-EPB5 plastic palin bearings is very well suited for used in wet applications.

EPB5_10-Plastic plain bearings moisture absorption.jpg

▊ UV resistance

CSB-EPB5 can maintain its performance to be stable even exposed in the UV ray for long period.

▊ Installation tolerances

CSB-EPB5 Tolerances after pressfit

Diameter [mm]	CSB-EPB5 F10 [mm]	Housing H7 [mm]	Shaft h9 [mm]
>0～3	+0.006～+0.046	0～+0.010	0～-0.025
>3～6	+0.010～+0.058	0～+0.012	0～-0.030
>6～10	+0.013～+0.071	0～+0.015	0～-0.036
>10～18	+0.016～+0.086	0～+0.018	0～-0.043
>18～30	+0.020～+0.104	0～+0.021	0～-0.052
>30～50	+0.025～+0.125	0～+0.025	0～-0.062
>50～80	+0.030～+0.150	0～+0.030	0～-0.074
>80～120	+0.036～+0.176	0～+0.035	0～-0.087
>120～180	+0.043～+0.203	0～+0.040	0～-0.100

Medium	EPB5 bearings resistance
Alcohol	Resistant
Hydrocarbons	Resistant
Greases. oils	Resistant
Fuels	Resistant
Diluted acids	Resistant
Strong acids	Conditionally resistant
Diluted alkalis	Resistant
Strong alkalis	Resistant

CSB® Bearing Material Chemical Resistance

Please select bearing material and medium...

CSB® bearing material chemical resistance data is a comparison test result of the CSB chemistry laboratory using laboratory specimens or similar chemicals at room temperature 23 ℃, without considering the impact of other temperatures and chemical medium mixtures on the chemical resistance of CSB® bearing materials ; Therefore, this data can only act as a reference. CSB® recommends that the chemical resistance of actual parts should be tested under application conditions and verify the suitability of the bearings.
