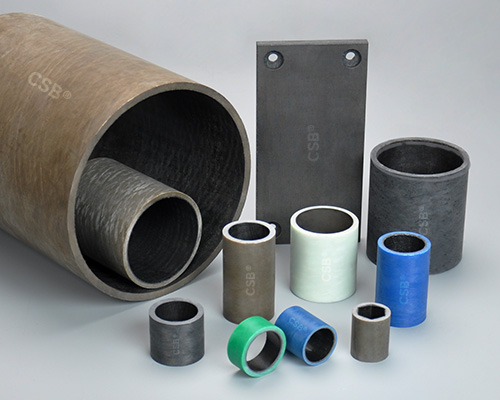

Product Features

● The backing material of DURARUB® material is high strength glass fiber with epoxy resin and the lubricating layer of it is PTFE wound fiber or special lubricating fiber. Therefore, this special structure performs an outstanding anti-wear feature and low friction coefficient under high load and low speed condition. Furthermore, this absolutely new idea gives better solution for high load and excellent wear resistance possibility.
● Very high load capacity, Max.160Mpa
● Very good chemical resistance；
● Lower friction and good wear properties. Friction coefficient<0.12
● Long time dry operation without oil

CRB Filament-wound bearings

● Maintenance-free, dry operation
● Static load 240MPa,dynamic load 140MPa
● Working temperature -196/+160℃
● Resistant to dirt and dust

Details

CRG Filament-wound bearings

● Maintenance-free, dry operation
● Static load 240MPa,dynamic load 140MPa
● Working temperature -196/+160℃
● Resistant to dirt and dust

Details

CRH Filament-wound bearings

● High strength, dry operation
● Static load 420MPa,dynamic load 140MPa
● Working temperature -196/+200℃
● Resistant to dirt and dust

Details

CRM Filament-wound bearings

● Maintenance-free, dry operation
● Static load 240MPa,dynamic load 120MPa
● Working temperature -196/+160℃
● Resistant to dirt and dust
● Internal bore can be precision-finished

Details

CRP Filament-wound bearings

● Maintenance-free, dry operation
● Static load 240MPa,dynamic load 30MPa
● Working temperature -196/+160℃
● Internal bore can be precision-finished

Details

CRW Filament-wound bearings

● Excellent anti-wear property under water
● Max. static load 240MPa
● Operation temperature -196/+160℃
● Excellent dirty resistance
● Very lowest friction coefficient

Details

CRF Filament-wound bearings

● Maintenance-free, dry operation
● Static load 150MPa,dynamic load 75MPa
● Working temperature -40/+130℃
● Excellent anti-wear ability in liquid lubrication
● All dimensions can be precision-finished

Details

▊Friction coefficient

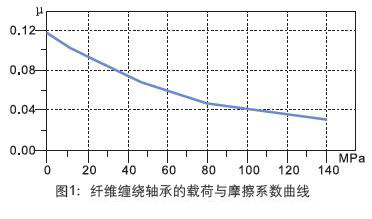

Friction Coefficient of filament Bearing is 0.03～0.12. The main factors affect the Friction Coefficient are Load, Moving method, Speed and Roughness of mating surfaces. Graph 1 shows the friction coefficient is going down while load is increasing under the rotation method.

Specification: CRB-6070-50

Shaft: 45# HRC50, Ra=0.4

Load: 20~140MPa

Speed: 1.0m/min

Lubricate: Dry

▊The anti-wear property

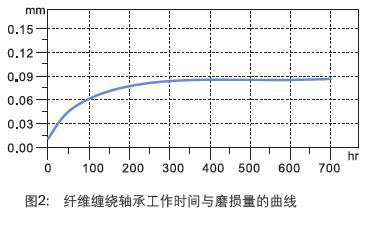

The main factors affect the anti-wear property are the load, moving method, speed and roughness of mating surfaces. Graph 2 shows the bearing wear off under room temperature with the load of 50MPa when the bearing is swinging. It is found the wear off increases sharply during the initial running-in while the lubricant is transferred from the inner liner and a smooth surface is created there of to form the lubricating surface. After running-in period, it will maintain stable without wear off.

Specification: CRB-4050-30

Shaft: 45# HRC50, Ra=0.4

Load: 50MPa

Speed: 1.0m/min, ±45°

Lubrication: Dry

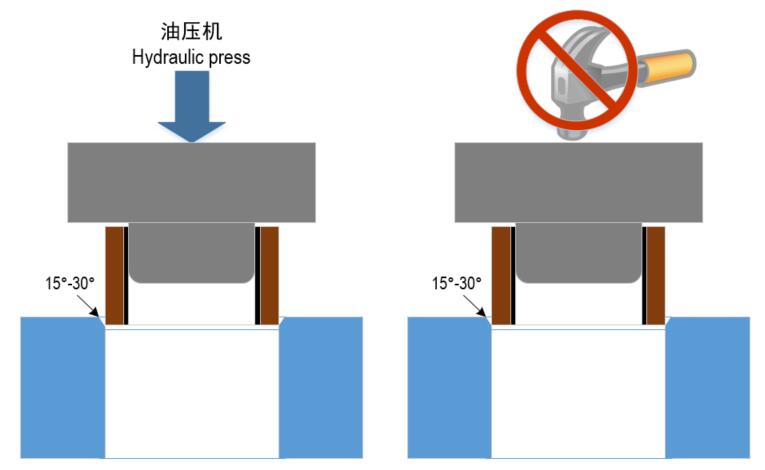

▊DURARUB® installation method

FWB纤维缠绕轴承安装方式

▊DURARUB®filament-wound bearings are suitable for high-load applications, these bearings can meet most of the possible chemical medium; Filament-wound bearings are developed for dry friction and high-load movement, but it is also available used in oil lubrication, grease lubrication or water environment; CSB recommends that the bearing be used in immersed water or oil, CRW and CRF bearings are very suitable.
▊ Find the resistance information from the right...

CSB® Bearing Material Chemical Resistance

Please select bearing material and medium...

CSB® bearing material chemical resistance data is a comparison test result of the CSB chemistry laboratory using laboratory specimens or similar chemicals at room temperature 23 ℃, without considering the impact of other temperatures and chemical medium mixtures on the chemical resistance of CSB® bearing materials ; Therefore, this data can only act as a reference. CSB® recommends that the chemical resistance of actual parts should be tested under application conditions and verify the suitability of the bearings.

DURARUB® Filament-wound Bearings 5188

Time 10-2025

Type PDF

No. CSB/CAT.070E

Size 1.32MB

5188

download

CSB-FWB®

DURARUB® Filament Wound Bearings Finder V2.1

view tools

DURARUB® Filament Wound Bearings Finder V2.1

▊DURARUB® Filament Wound Bearings Finder[V2.0] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations material data by entering parameters such as bearing load, speed, and temperature, and finally output material adaptation data.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the bearing must be tested again to verify whether it meets the actual use requirements.
▊DURARUB® Filament Wound Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.

Use Tools

General properties	Unit	CRB	CRG	CRH	CRM	CRP	CRW	CRF
Density	g/cm³	1.90	1.90	1.90	1.90	1.90	1.90	1.30
Max. water absorption	%	0.1	0.1	0.1	0.1	0.1	0.1	0.1
Max. PV value	N/mm²×m/s	1.5	1.5	1.5	1.2	1.0	1.2	1.0
Coefficient of friction	µ	0.03-0.12	0.03-0.12	0.03-0.12	0.05-0.15	0.03-0.12	0.05-0.15	0.05-0.15
Long-term application temperature	℃	+160	+160	+200	+160	+160	+160	+130
Short-term application temperature	℃	+180	+180	+260	+180	+180	+180	+160
Lowest application temperature	℃	-196	-196	-196	-196	-196	-196	-40
Max. Speed	m/s	0.13	0.13	0.13	0.13	0.50	0.13	0.13
Compressive strength	MPa	420	420	620	420	420	420	150
Max. static load	MPa	240	240	420	240	240	240	150
Max. dynamic load	MPa	140	140	160	120	30	120	75
Coefficient of thermal expansion	10^-6×K^-1	13	13	13	13	13	13	50
Color	-	Brown	Black	Dark grey	Blue	White	Green	Dark grey
