Product Features

Maintenance free plastic linear bearings. Low noise operation is suitable for continuously application under the extremely dusty environment. It is washable by the clean detergent of the food machine. There is no critical requirement about the shaft hardness or the mounting holes of the housing.
● Maintenance-free, dry operation, low noise
● Suitable for long-time running in dusty environments
● Corrosion resistance; Cleaning with disinfectant
● Straight grooves design removes dust from the friction surface

Material properties	Standard	Unit	CSB-EPB13	CSB-MN2	CSB-EPB5	CSB-MR4	CSB-MN7
General properties
Color	-	-	Yellow	Dark grey	Black	Grey	Grey
Density	ISO1183	g/cm³	1.48	1.72	1.44	1.48	1.05
Max. moisture absorption, 50%RH	ISO62	%	0.3	0.2	0.1	0.3	0.1
Max. water absorption	ISO62	%	1.3	0.7	0.5	1.3	0.1
Coefficient of sliding friction(steel)	ITS025	µ	0.05-0.15	0.10-0.18	0.09-0.25	0.05-0.20	0.05-0.15
Max. PV value	ITS026	N/mm²×m/s	0.40	0.3	1.40	0.30	0.30
Mechanical properties
Flexural modulus	ISO178	MPa	2800	2800	4800	2350	650
Flexural strength	ISO178	MPa	60	53	165	60	20
Max. static load	ITS027	MPa	35	30	110	35	20
Max. dynamic load	ITS028	MPa	14	12	61	14	5
Shore hardness	ISO868	D	74	73	82	74	61
Physical and thermal properties
Long-term application temperature	ITS029	℃	+90	+90	+250	+90	+70
Short-term application temperature	ITS029	℃	+120	+120	+315	+120	+90
Lowest application temperature	ITS029	℃	-50	-50	-100	-50	-50
Thermal conductivity	ISO22007	W/m/K	0.25	0.24	0.55	0.25	0.20
Coefficient of thermal expansion	ISO11359	K^-1×10^-5	10	8	6	10	16
Flammability	UL94	Class	HB	HB	V0	HB	HB
Electrical properties
Volume resistance	IEC60093	Ω·cm	>10¹³	>10⁸	>10⁸	>10¹³	>10⁹
Surface resistance	IEC60093	Ω	>10¹²	>10⁸	>10⁷	>10¹²	>10⁹

*ITS：CSB company’s internal test standards. **Test temperatures are 23℃ unless otherwise stated.

Plastic linear bearing liners

● Maintenance-free, Drying working, noiseless
● Closure and opening sliding liners
● Standard long and short design
● Standard material EPB13,MN2,EPB5

Details

Plastic linear bearings

● Made of anti-wear plastic
● Higher sewage capacity
● Low-cost solution

Details

Plastic linear bearings, closed

● Closed design linear bearings
● Standard long and short design
● Self-aligning design

Details

Plastic linear bearings, opening

● Opening design linear bearings
● Self-aligning design
● Assembled standard liner LIN-11K

Details

Plastic linear bearings, flange

● Round flange and square flange design
● Standard and long design
● Secured by bolts
● Anodized aluminum adapter

Details

Plastic linear bearing housings

● Linear bearing with housing
● Standard, Short and Long design
● Secured by bolts

Details

Plastic linear pillow blocks

● Pillow block design
● Standard,short and long design
● Adjustable design to available
● Secured by bolts

Details

Floating pillow blocks

● Floating design linear bearings
● Assembled standard liner LIN-11
● Compensation of parallelism errors ±3.0mm
● Compensation of mialignment errors ±3.5°

Details

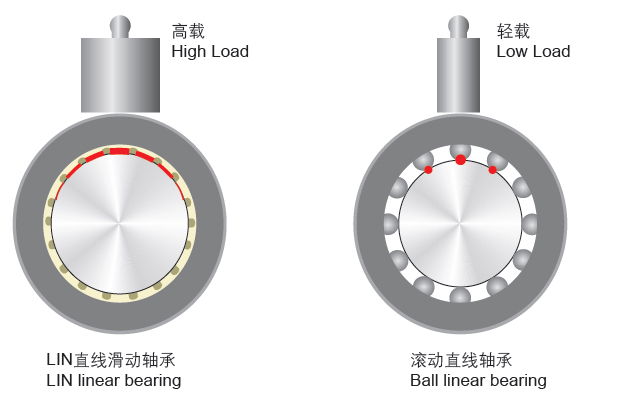

▊CSB-LIN® linear bearings with high loading capability

As a linear sliding bearings, the contacting of the bearing and the shaft is a surface instead of point contact of the traditional ball bearings. So it results in that the surface contacting CSB-LIN® plastic linear bearings are with better loading capability than the sliding ball bearings.

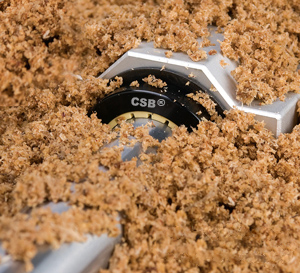

▊CSB-LIN® linear bearings used in extremely conditions of sands and dusts

CSB-LIN® liners is made from high anti-wear material EPB13. The straight grooves design allows the bearing to be used in the extremely conditions such as in sands and dusts. The straight grooves design allows the sands or dusts entering the grooves and be brought out of the bearing system finally ,but the traditional ball bearings will be blocked by the entered sands or dusts, then the ball bearings moving system and the shaft surface will be damaged.

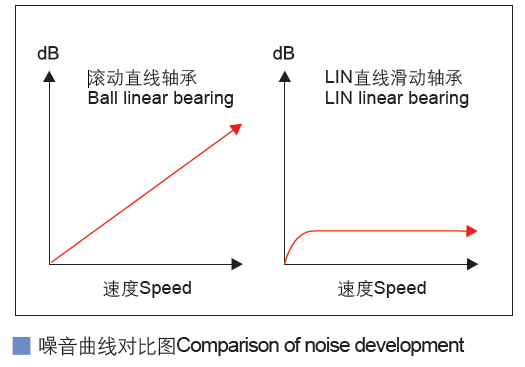

▊CSB-LIN® linear bearings operation with low noise

Metal ball bearings generates high noise by the crashing of balls to the shafts during the operation and the noise will be sharply increased when the operation speed goes higher while the CSB-LIN® plastic linear bearings are with the surface contacting structure which ensures a lower operation noise level.

▊CSB-LIN® linear bearings allows the access of cleaning solution

CSB-LIN® plastic linear bearings are used in the food packing machine guiding system so it is easily access to the cleaning solutions. Years of application experience proves that the CSB-LIN® plastic linear bearings are corrosion resistant to most kinds of Alkaline cleaning solutions or could be even immerged into the solutions.

▊CSB-LIN® Load capacity

Inner diameter [mm]	Max. dynamic Load [P=5MPa]		Max. static Load [P=35MPa]
Inner diameter [mm]	LIN-11 liners [N]	LIN-12 liners [N]	LIN-11 liners [N]	LIN-12 liners [N]
10	725	650	5075	4550
12	960	840	6720	5880
16	1440	1200	10080	8400
20	2250	1500	15750	10500
25	3625	2500	25375	17500
30	5100	3750	35700	26250
40	8000	6000	56000	42000
50	9000	8750	87500	61250

Supported shafts

Compact and low high design support;

Standard design support;

3 materials shaft: Hard anodized aluminum shaft, Hardchromed steel shaft, 304 Stainless steel shaft;

Details

Precision shafts

AS: Hard anodized aluminum shaft, the best shaft for LIN linear bearings; CS: Hard-chromed steel shaft, the effective-cost shaft; ES: 304 Stainless steel shaft, the best for chemical liquid; Shaft end processing service...

Details

CSB® Polymer-tech Solutions

▊CSB-LIN® Eccentric forces

●Maximum 2:1 ratio
●1x =bearing separation on same shaft
●2x =distance from shaft to load or force

CSB-LIN® Precision linear bearings

●CAUTION: uneven motion or even system blockage will occur if the 2:1 ratio is exceeded !
This principle is NOT load dependent! It is NOT due to edge loading. It is also NOT dependent on the driving force used! The greater the distance between the drive and guide bearings, the higher the degree of wear and required drive force.
There may be other factors that add to the braking effect, but the coefficient of friction is the main cause.
NOTE: The Rule(2:1) is based on the static friction value of 0.25 theoretically, However, Additional lubrication can help to drop friction and extend the 2:1 ratio.
If you have any questions on design and/or assembly, please contact our application engineers.

CSB-LIN® Plastic Linear Bearings 5285

Time 09-2021

Type PDF

No. CSB/CAT.062E

Size 1.28MB

5285

download

CSB-LIN®

Plastic Linear Bearings Finder V2.0

view tools

CSB-LIN® Plastic Linear Bearings Finder V2.0

▊CSB-LIN® Plastic Linear Bearings Finder[V2.0] including LIN plastic linear bearings and LINP precision linear bearings. The system is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations bearing data by entering parameters such as bearing load, speed, temperature and position information, The system will output bearing adaptation data and min. driving force.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the bearing must be tested again to verify whether it meets the actual use requirements.
▊CSB-LIN® Plastic Linear Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.

Use Tools
