▊CSB-BAL®M Spherical balls for spherical bearing housings
In standard spherical ball is made from EPB13 material, which is known for its high strength and low coefficient of friction while running dry. This is especially important for low loads and very slow movements. Further to the standard material EPB13, spherical balls are available material EPB10 for high temperature operation at 250℃.

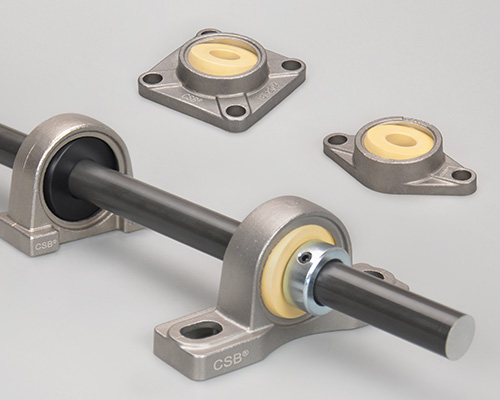

▊CSB-BAL®M Bearing housings
Standard housings made from stainless steel for high load and extremely shock resistant.
▊Loads and temperatures
The load capacity of the maintenance-free spherical bearing is very high at normal ambient temperatures. The excellent dampening properties are based on the fact that the polymer material of the spherical balls can absorb vibrations differently than steel. The load capacity of the bearings should therefore be checked in a practical test, particularly if it will be used under continuous high loads and at elevated temperatures.
▊Coefficient of sliding friction and speed
The shaft sliding in the spherical ball of the spherical bearing in normal operation, There is slightly sliding between the ball and the housing; The spherical ball made from EPB13, Lower friction and permits high speeds when running dry.
▊Tolerance
The bore of CSB-BAL®M spherical ball is produced to a standard tolerance E10. Shafts should also meet recommended tolerances h6 to h9. The inner diameter with plug gauge to check but not caliper. Please contact us in case you require lower or other bearing tolerances.
