Product Features

● Anti-wear plastic ball with high speed sliding bushing ALG
● Housing made of high strength material M163
● High speed up to 1m/s
● Maintenance-free dry operation
● High dimensional stability
● Compensation of misalignment errors
● Very light, easy installation

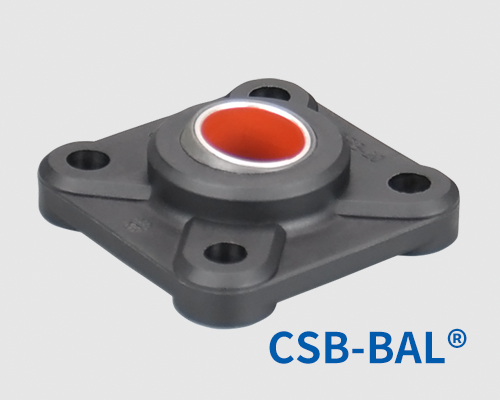

GSB-ALG Flange spherical bearings

Part no.:

d1 [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2 [mm]：

d3 [mm]：

A1 [mm]：

A2 [mm]：

M [mm]：

H [mm]：

Max. adjustable angle [°]：

Max. shaft [mm]：

Min. shaft [mm]：

*Lead time [wks]：

Download CAD

Cart

Shopping

Dimensions

▊GSB-ALG Flange spherical bearings load capacity

Part No.	Max. axial static load		Max. radial static load		Max. tigh-tening torque -Holes	Weight
Part No.	Short-term [N]	Long-term [N]	Short-term [N]	Long-term [N]	[Nm]	[g]
GSB-ALG-06	300	150	1000	500	0.6	3.1
GSB-ALG-08	450	225	1400	700	1.3	6.3
GSB-ALG-10	700	350	2000	1000	2.5	9.6
GSB-ALG-12	850	425	2500	1250	2.5	11.7
GSB-ALG-15	1100	550	3000	1500	4.5	21.4
GSB-ALG-16	1350	675	3200	1600	4.5	24.7
GSB-ALG-20	2000	1000	4000	2000	10.5	47.3
GSB-ALG-25	2400	1200	5600	2800	10.5	79.7
GSB-ALG-30	2800	1400	6000	3000	21.5	105.6

ALG Fluoroplastic bearings

●Liner materials: TEFPLAS^®G

●Self-lubricating, maintenance-free

●Smooth operation, low noise

●Split design, low cost

Details

CSB®GSB-ALG Flange spherical bearings 1796

Time 01-2022

Type PDF

No. CSB/CAT.062E

Size 95.3KB

1796

download
