Polymer-tech SolutionsTM

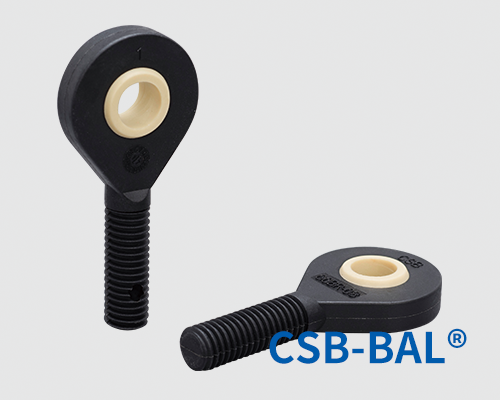

● Spherical ball made of highly wear-resistant EPB15
● Connection rod made of high strength and shape-stable M163
● External thread design
● Maintenance-free and dry operation
● Smooth design has no dirt traps
● Absolute corrosion resistance
● Compensation of misalignment errors
● No noise and light weight
Part No. | Max. static tensile strength | Max. radial static load | Max. tightening torque through ball | Weight | ||
| Short-term [N] | Long-term [N] | Short-term [N] | Long-term [N] | [Nm] | [g] | |
GOBR-06 | 850 | 425 | 80 | 40 | 0.5 | 2.7 |
GOBR-08 | 1600 | 800 | 160 | 80 | 2 | 5.1 |
GOBR-10 | 2600 | 1300 | 250 | 125 | 5 | 8.4 |
| GOBL-06 | 850 | 425 | 80 | 40 | 0.5 | 2.7 |
GOBL-08 | 1600 | 800 | 160 | 80 | 2 | 5.1 |
GOBL-10 | 2600 | 1300 | 250 | 125 | 5 | 8.4 |
● Self lubricated and maintenance free
● Corrosion resistance
● Impact resistance, low noise
● Light weight
● Maintenance-free, dry-running
● Easy assembly
● Compensation of misalignment errors
● Compensation of edge loads
● Internal thread design
● Maintenance-free and corrosion-resistant
● Easy connection - easy assembly
● Fits directly and space-saving
● External thread design
● Maintenance-free and corrosion-resistant
● Easy connection - easy assembly
● Fits directly and space-saving
● Spherical ball made of highly wear-resistant EPB15
● Housing made of high strength and shape-stable M163
● Connection rod made of high strength aluminum alloy
● The center distance up on request
● Maintenance-free and dry operation
● Resistant to dust and dirt
● Absolute corrosion resistance
● Mechanical connector between two components
● Maintenance-free and dry operation
● Resistant to dust and dirt
● High radial loads and compensation of edge loads
● Compensation of misalignment errors
● Maintenance-free and dry operation
● Resistant to dust and dirt
● High radial loads and compensation of edge loads
● Compensation of misalignment errors
● Maintenance-free and dry operation
● Resistant to dust and dirt
● Absolute corrosion resistance
● Compensation of misalignment errors
● Maintenance-free and dry operation
● Resistant to dust and dirt
● Absolute corrosion resistance
● Compensation of misalignment errors
● Internal thread design
● Maintenance-free and dry operation
● Absolute corrosion resistance
● Compensation of misalignment errors
● Maintenance-free and corrosion-resistant
● Resistant to dust and dirt
● Max tolerance compensation ±0.2mm
● Easy installation
● Maintenance free and self-lubricated
● Self-compensation for the installation deviation
● Impact resistance and silent operation
● Dust resistance with light weight
