Product Features

● Spherical ball made of highly wear-resistant EPB15
● Connection rod made of high strength and shape-stable M163
● Maintenance-free and dry operation
● Resistant to dust and dirt
● Absolute corrosion resistance
● Mechanical connector between two components
● Compensation of misalignment errors
● Multichoice distance between two components

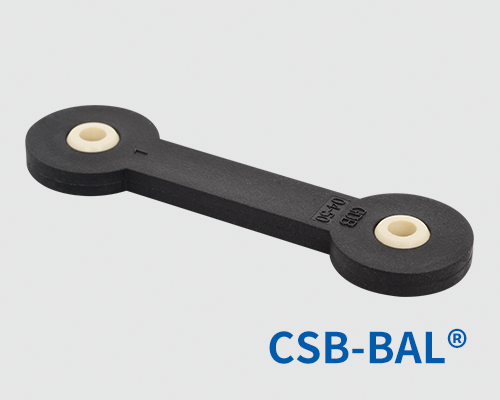

GDB Double end bearings

Part no.:

d1 [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2 [mm]：

L [mm]：

A [mm]：

H [mm]：

H1 [mm]：

Max. adjustable angle [°]：

Max. shaft [mm]：

Min. shaft [mm]：

*Lead time [wks]：

Download CAD

Cart

Shopping

Dimensions

▊GDB Double end bearings load capacity

Part No.	Max. static tensile strength （Short-term）		Max. static tensile strength （Long-term）		Weight
Part No.	Radial [N]	Axial [N]	Radial [N]	Axial [N]	[g]
GDB-04-25	1100	1300	550	650	3.5
GDB-04-50	1100	750	550	375	4.8
GDB-04-75	1100	500	550	250	6.1
GDB-05-25	1100	1300	550	650	2.2
GDB-05-50	1100	750	550	375	4.9
GDB-05-75	1100	500	550	250	6.3
GDB-06-25	1100	1300	550	650	3.4
GDB-06-50	1100	750	550	375	4.8
GDB-06-75	1100	500	550	250	3.4
GDB-08-60	3000	3500	1500	1750	15.2
GDB-08-100	3000	1900	1500	950	19.5
GDB-10-60	2500	3500	1250	1750	15.3
GDB-10-100	2500	1900	1250	950	19.4
GDB-12-60	2000	3500	1000	1750	14.7
GDB-12-100	2500	1900	1000	950	18.8

BAL Plastic spherical balls

● Self lubricated and maintenance free
● Corrosion resistance
● Impact resistance, low noise
● Light weight

Details

CSB®GDB Double end bearings 3059

Time 09-2021

Type PDF

No. CSB/CAT.062E

Size 461KB

3059

download
