Product Features

● K type ball material EPB15
● Stainless steel balls for higher tightening torque
● Housing material: M163
● Maintenance-free and dry operation
● Dirt, dust, chemical-resistant
● Compensation of misalignment errors
● Noise free and light weight

GIBR: Right-hand thread

GIBL: Left-hand thread

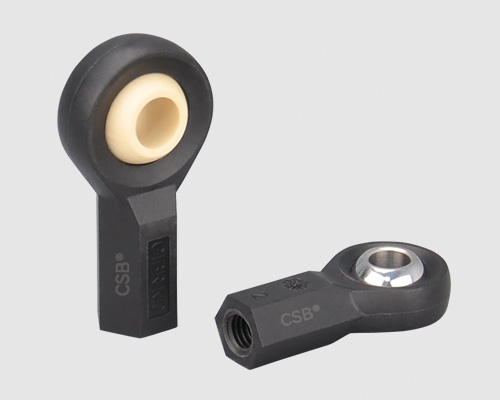

GIB-K Rod end bearings

Part no.:

d1 [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2 [mm]：

d3 [mm]：

W [mm]：

B [mm]：

I1 [mm]：

I2 [mm]：

h1 [mm]：

C1 [mm]：

Min. screw depth [mm]：

Max. adjustable angle [°]：

Max. shaft [mm]：

Min. shaft [mm]：

*Lead time [wks]：

Download CAD

Cart

Shopping

Dimensions

▊GIB-K Rod end bearings load capacity

Part No.	Max. static tensile strength		Max. radial static load		tightening torque through ball	Weight
Part No.	Short-term [N]	Long-term [N]	Short-term [N]	Long-term [N]	[Nm]	[g]
GIBR-K06	1400	700	300	150	10	4.2
GIBR-K08	2100	1050	500	250	12	7.6
GIBR-K10	3100	1550	800	400	20	12.8
GIBR-K10-F	3100	1550	800	400	20	12.8
GIBR-K06-ES3	1400	700	300	150	15	8.7
GIBR-K08-ES3	2100	1050	500	250	40	16.8
GIBR-K10-ES3	3100	1550	800	400	50	27.2
GIBR-K10-F-ES3	3100	1550	800	400	50	27.2

BAL Plastic spherical balls

● Self lubricated and maintenance free
● Corrosion resistance
● Impact resistance, low noise
● Light weight

Details

CSB®GIB Rod end bearings,Internal thread design 3935

Time 10-2023

Type PDF

No. CSB/CAT.062

Size 170KB

3935

download
