Product Features

● K type ball material EPB15
● Stainless steel balls for higher tightening torque
● Housing material: M163
● Simple assembly with the locking nut
● Maintenance-free and dry operation
● Dirt, dust, chemical-resistant
● Compensation of misalignment errors
● No noise and light weight

GIBR: Right-hand thread

GIBL: Left-hand thread

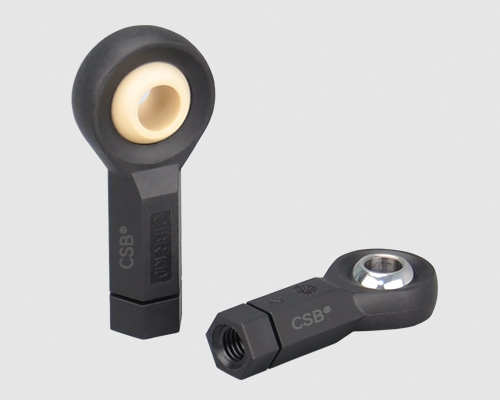

GIB-K-L Rod end bearings

Part no.:

d1 [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2 [mm]：

d3 [mm]：

W [mm]：

B [mm]：

I1 [mm]：

I2 [mm]：

h1 [mm]：

h2 [mm]：

C1 [mm]：

m [mm]：

Min. screw depth [mm]：

Max. adjustable angle [°]：

Max. shaft [mm]：

Min. shaft [mm]：

*Lead time [wks]：

Download CAD

Cart

Shopping

Dimensions

▊GIB-K-L Rod end bearings load capacity

Part No.	Max. static tensile strength		Max. radial static load		tightening torque through ball	Weight
Part No.	Short-term [N]	Long-term [N]	Short-term [N]	Long-term [N]	[Nm]	[g]
GIBR-K06-L	1400	700	300	150	10	4.5
GIBR-K08-L	2100	1050	500	250	12	8.6
GIBR-K10-L	3100	1550	800	400	20	14.1
GIBR-K10-L-F	3100	1550	800	400	20	14.1
GIBR-K06-L-ES3	1400	700	300	150	15	9.2
GIBR-K08-L-ES3	2100	1050	500	250	40	17.6
GIBR-K10-L-ES3	3100	1550	800	400	50	28.5
GIBR-K10-L-F-ES3	3100	1550	800	400	50	28.5

BAL Plastic spherical balls

● Self lubricated and maintenance free
● Corrosion resistance
● Impact resistance, low noise
● Light weight

Details

CSB®GIB Rod end bearings,Internal thread design 3935

Time 10-2023

Type PDF

No. CSB/CAT.062

Size 170KB

3935

download
