Product Features

● Anti-wear plastic ball with high speed sliding bushing ALG
● Housing made of high strength material M163
● High speed up to 1m/s
● Maintenance-free dry operation
● High dimensional stability
● Compensation of misalignment errors
● Very light, easy installation

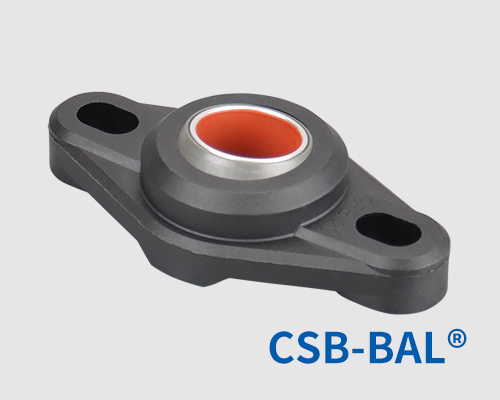

GFB-ALG Flange spherical bearings

Part no.:

d1 [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2 [mm]：

A1 [mm]：

A2 [mm]：

T [mm]：

L [mm]：

H [mm]：

Z [mm]：

M [mm]：

Max. adjustable angle [°]：

Max. shaft [mm]：

Min. shaft [mm]：

*Lead time [wks]：

Download CAD

Cart

Shopping

Dimensions

▊GFB-ALG Flange spherical bearings load capacity

Part No.	Max. axial static load		Max. radial static load		Max. tigh-tening torque -Holes	Weight
Part No.	Short-term [N]	Long-term [N]	Short-term [N]	Long-term [N]	[Nm]	[g]
GFB-ALG-06	500	250	800	400	0.6	3.1
GFB-ALG-08	700	350	1100	550	1.3	4.5
GFB-ALG-10	850	425	2000	1000	2.5	7.3
GFB-ALG-12	1100	550	2200	1100	2.5	9.6
GFB-ALG-15	1300	650	2400	1200	4.5	16.2
GFB-ALG-16	1400	700	2800	1400	4.5	19.1
GFB-ALG-20	1800	900	5500	2750	10.5	35.1
GFB-ALG-25	3000	1500	6000	3000	10.5	62.2
GFB-ALG-30	3500	1750	6500	3250	21.5	83.8

ALG Fluoroplastic bearings

●Liner materials: TEFPLAS^®G

●Self-lubricating, maintenance-free

●Smooth operation, low noise

●Split design, low cost

Details

CSB®GFB-ALG Flange spherical bearings 1765

Time 01-2022

Type PDF

No. CSB/CAT.062E

Size 93.6KB

1765

download
