Polymer-tech SolutionsTM

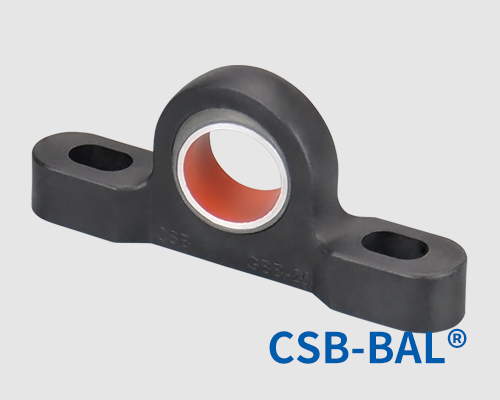

● Anti-wear plastic ball with high speed sliding bushing ALG
● Housing made of high strength material M163
● High speed up to 1m/s
● Maintenance-free dry operation
● High dimensional stability
● Compensation of misalignment errors
● Very light, easy installation
Part No. | Max. axial static tensile strength | Max. static compressive strength | Max. tightening torque for longitudinal holes | Weight | |
| Short-term [N] | Long-term [N] | [N] | [Nm] | [g] | |
GBB-ALG-16 | 3000 | 1500 | 1800 | 4.5 | 41.4 |
GBB-ALG-20 | 4700 | 2350 | 1300 | 10.5 | 56.3 |
GBB-ALG-25 | 6600 | 3300 | 1600 | 10.5 | 79.0 |
| GBB-ALG-30 | 8100 | 4050 | 2100 | 21.5 | 121.7 |
●Liner materials: TEFPLAS® G
●Self-lubricating, maintenance-free
●Smooth operation, low noise
●Split design, low cost
●Integrated design plastic spherical bearings
●UV resistance
●High and low temperature，damp-heat aging
●Suitable for flat or slope brackets
CSB-BAL®M spherical bearings for self-aligning solutions. The spherical ball is made of wear-resistant composite material and the housing material is made of stainless steel....
● Spherical ball made of highly wear-resistant EPB15
● Housing made of high strength and shape-stable M163
● Connection rod made of high strength aluminum alloy
● The center distance up on request
● Maintenance-free and dry operation
● Resistant to dust and dirt
● Absolute corrosion resistance
● Mechanical connector between two components
● Maintenance-free and dry operation
● Resistant to dust and dirt
● High radial loads and compensation of edge loads
● Compensation of misalignment errors
● Maintenance-free and dry operation
● Resistant to dust and dirt
● Absolute corrosion resistance
● Compensation of misalignment errors
● Maintenance-free and dry operation
● Resistant to dust and dirt
● Absolute corrosion resistance
● Compensation of misalignment errors
● Internal thread design
● Maintenance-free and dry operation
● Absolute corrosion resistance
● Compensation of misalignment errors
● External thread design
● Maintenance-free and dry operation
● Absolute corrosion resistance
● Compensation of misalignment errors
