Product Features

● Rolling and sliding hybrid carriages

● Smooth moving and driving force reduced 45% than the standard carriages

● Sliding liners material: EPB13

● For side installation of WR02 guide rails

● Maintenance-free, dry-running

● Resistant dust and no noise

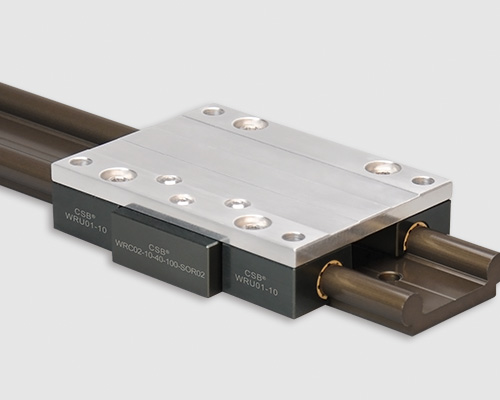

WRC02 Assembled hybrid carriages, SOR

Part no.:

A [mm]：

A1 [mm]：

L [mm]：

C [mm]：

H [mm]：

K3 [mm]：

A2 [mm]：

C1 [mm]：

*Lead time [wks]：

Download CAD

Cart

Shopping

Dimensions

▊WRC02...SOR assembled hybrid carriages load capacity

Part No.	Static load			Dynamic load	Weight
Part No.	Coy- [N]	Mox [Nm]	Coz [N]	Coz [N]	[kg]
WRC02-10-40-100-SOR02	2400	170	920	2560	0.35
WRC02-10-40-150-SOR02	2400	290	920	2560	0.39
WRC02-10-40-200-SOR02	2400	410	920	2560	0.45
WRC02-10-80-100-SOR02	2400	170	920	2560	0.48
WRC02-10-80-150-SOR02	2400	290	920	2560	0.55
WRC02-10-80-200-SOR02	2400	410	920	2560	0.60
WRC02-16-60-150-SOR02	4200	480	1440	3880	1.00
WRC02-16-60-200-SOR02	4200	690	1440	3880	1.10
WRC02-20-80-150-SOR02	6400	670	1760	4400	1.30
WRC02-20-80-200-SOR02	6400	990	1760	4400	1.40
WRC02-20-80-250-SOR02	6400	1250	1760	4400	1.60

WR02 Double round linear guide rails

● Dual guide rails made of aluminum

● Hard anodized surface

● Weight saving and no noise

● Standard fitting width

Details

WRU01 Round rail sliding blocks

● Fitted standard liners EPB13

● Maintenance-free, dry-running

● Fast assembly and light weight

Details

▊Eccentric forces

● Maximum 2:1 ratio

● 1x = bearing separation on same shaft

● 2x = distance from shaft to load or force

CSB-LIN®直线轴承安装法则

● CAUTION: uneven motion or even system blockage will occur if the 2:1 ratio is exceeded !

This principle is NOT load dependent! It is NOT due to edge loading. It is also NOT dependent on the driving force used! The greater the distance between the drive and guide bearings, the higher the degree of wear and required drive force.

There may be other factors that add to the braking effect, but the coefficient of friction is the main cause.

● NOTE: The Rule(2:1) is based on the static friction value of 0.25 theoretically, However, Additional lubrication can help to drop friction and extend the 2:1 ratio.

● If you have any questions on design and/or assembly, please contact our application engineers.

WRC02...SOR Assembled hybrid carriages 1969

Time 12-2021

Type PDF

No. CSB/CAT.062E

Size 128KB

1969

download

CSB-LIN®

Plastic Linear Bearings Finder V2.0

view tools

CSB-LIN® Plastic Linear Bearings Finder V2.0

▊CSB-LIN® Plastic Linear Bearings Finder[V2.0] including LIN plastic linear bearings and LINP precision linear bearings. The system is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations bearing data by entering parameters such as bearing load, speed, temperature and position information, The system will output bearing adaptation data and min. driving force.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the bearing must be tested again to verify whether it meets the actual use requirements.
▊CSB-LIN® Plastic Linear Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.
