Product Features

● Sliding layer material: TEFPLAS® B

● Operation temperature ±200℃

● Max. continuous running speed 1.5m/s

● Fast assembly and light weight

● For WR guide rails

● Resistant dust and no noise

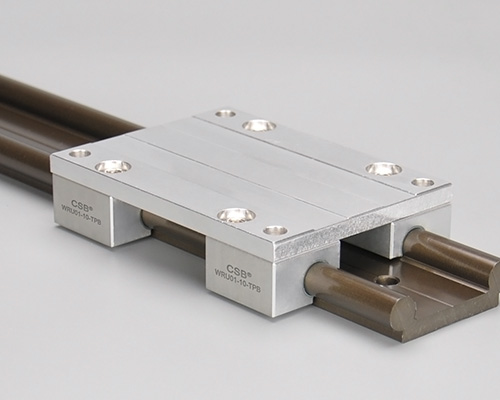

WRC01 Round guide rail carriages,TPB

Part no.:

A [mm]：

A1 [mm]：

L [mm]：

C [mm]：

H [mm]：

*Lead time [wks]：

Download CAD

Cart

Shopping

Dimensions

▊WRC01 Assembled guide carriages load capacity

Part No.	Static load					Weight
Part No.	Coy- [N]	Coz [N]	Mox [Nm]	Moy [Nm]	Moz [Nm]	[kg]
WRC01-10-40-100-TPB	5600	2800	112	200	200	0.29
WRC01-10-40-150-TPB	5600	2800	112	340	340	0.34
WRC01-10-40-200-TPB	5600	2800	112	482	482	0.4
WRC01-10-80-100-TPB	5600	2800	209	200	200	0.34
WRC01-10-80-150-TPB	5600	2800	209	340	340	0.42
WRC01-10-80-200-TPB	5600	2800	209	482	482	0.5
WRC01-16-60-100-TPB	9840	4920	282	318	318	0.71
WRC01-16-60-150-TPB	9840	4920	282	565	565	0.84
WRC01-16-60-200-TPB	9840	4920	282	810	810	0.97
WRC01-20-80-150-TPB	15040	7520	617	788	788	1.2
WRC01-20-80-200-TPB	15040	7520	617	1164	1164	1.3
WRC01-20-80-250-TPB	15040	7520	617	1470	1470	1.5

WR02 Double round linear guide rails

● Dual guide rails made of aluminum

● Hard anodized surface

● Weight saving and no noise

● Standard fitting width

Details

WRU01 Round rail sliding blocks, TPB

● Wear layer material: TEFPLAS® B

● Operation temperature ±200℃

● Max. continuous running speed 1.5m/s

● Fast assembly and light weight

Details

▊Eccentric forces

● Maximum 2:1 ratio

● 1x = bearing separation on same shaft

● 2x = distance from shaft to load or force

CSB-LIN®直线轴承安装法则

● CAUTION: uneven motion or even system blockage will occur if the 2:1 ratio is exceeded !

This principle is NOT load dependent! It is NOT due to edge loading. It is also NOT dependent on the driving force used! The greater the distance between the drive and guide bearings, the higher the degree of wear and required drive force.

There may be other factors that add to the braking effect, but the coefficient of friction is the main cause.

● NOTE: The Rule(2:1) is based on the static friction value of 0.25 theoretically, However, Additional lubrication can help to drop friction and extend the 2:1 ratio.

● If you have any questions on design and/or assembly, please contact our application engineers.

WRC01 Round guide rail carriages 3595

Time 09-2021

Type PDF

No. CSB/CAT.052

Size 149KB

3595

download

CSB-LIN®

Plastic Linear Bearings Finder V2.0

view tools

CSB-LIN® Plastic Linear Bearings Finder V2.0

▊CSB-LIN® Plastic Linear Bearings Finder[V2.0] including LIN plastic linear bearings and LINP precision linear bearings. The system is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations bearing data by entering parameters such as bearing load, speed, temperature and position information, The system will output bearing adaptation data and min. driving force.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the bearing must be tested again to verify whether it meets the actual use requirements.
▊CSB-LIN® Plastic Linear Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.
