Product Features

● Fitted standard liners EPB13

● Maintenance-free, dry-running

● Fast assembly and light weight

● For WR dual guide rails

● Resistant dust and silent

● Silent operation

● Variable length can be fitted

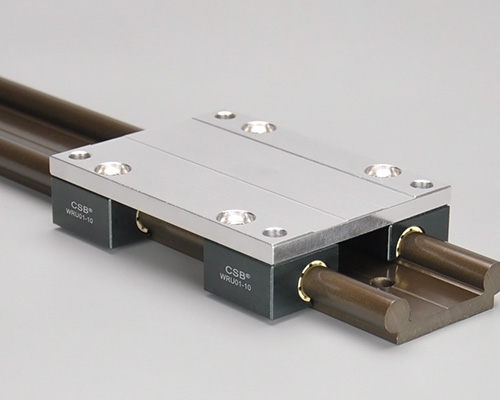

WRC01 Round guide rail carriages

Part no.:

A [mm]：

A1 [mm]：

L [mm]：

C [mm]：

H [mm]：

*Lead time [wks]：

Download CAD

Cart

Shopping

Dimensions

▊WRC01 Assembled guide carriages load capacity

Part No.	Static load					Weight
Part No.	Coy- [N]	Coz [N]	Mox [Nm]	Moy [Nm]	Moz [Nm]	[kg]
WRC01-06-20-060	840	420	16	34	34	0.055
WRC01-10-40-100	4800	2400	96	170	170	0.29
WRC01-10-40-150	4800	2400	96	290	290	0.34
WRC01-10-40-200	4800	2400	96	410	410	0.4
WRC01-10-80-100	4800	2400	178	170	170	0.34
WRC01-10-80-150	4800	2400	178	290	290	0.42
WRC01-10-80-200	4800	2400	178	410	410	0.5
WRC01-16-60-100	8400	4200	240	270	270	0.71
WRC01-16-60-150	8400	4200	240	480	480	0.84
WRC01-16-60-200	8400	4200	240	690	690	0.97
WRC01-20-80-150	12800	6400	525	670	670	1.2
WRC01-20-80-200	12800	6400	525	990	990	1.3
WRC01-20-80-250	12800	6400	525	1250	1250	1.5

WR02 Double round linear guide rails

● Dual guide rails made of aluminum

● Hard anodized surface

● Weight saving and no noise

● Standard fitting width

Details

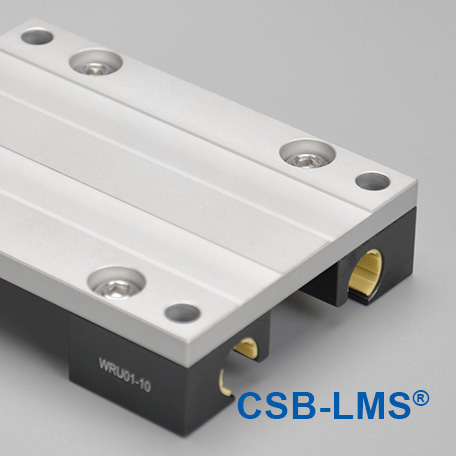

WRU01 Round rail sliding blocks

● Fitted standard liners EPB13

● Maintenance-free, dry-running

● Fast assembly and light weight

Details

▊Eccentric forces

● Maximum 2:1 ratio

● 1x = bearing separation on same shaft

● 2x = distance from shaft to load or force

CSB-LIN®直线轴承安装法则

● CAUTION: uneven motion or even system blockage will occur if the 2:1 ratio is exceeded !

This principle is NOT load dependent! It is NOT due to edge loading. It is also NOT dependent on the driving force used! The greater the distance between the drive and guide bearings, the higher the degree of wear and required drive force.

There may be other factors that add to the braking effect, but the coefficient of friction is the main cause.

● NOTE: The Rule(2:1) is based on the static friction value of 0.25 theoretically, However, Additional lubrication can help to drop friction and extend the 2:1 ratio.

● If you have any questions on design and/or assembly, please contact our application engineers.
