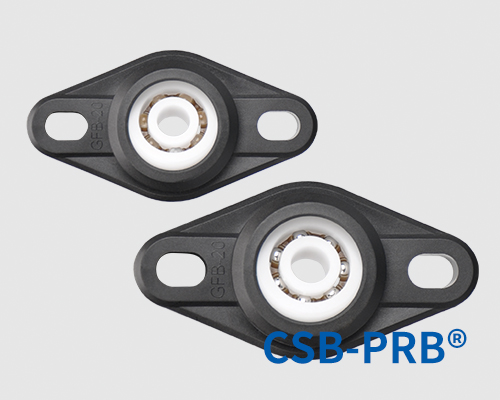

Polymer-tech SolutionsTM
● Dry operation and maintenance-free
● Compensation of misalignment errors
● Absolute corrosion resistance
● Smooth running and no noise
● Long-term application temperature：-40°C-80°C
● Housing high-strength material: CSB® M163
● Bearing material: Races-POM, Cage-PA, Balls-Stainless steel or glass
Part No. | Max. capacity load | Max. speed | Max. pivot angle | Weight | |
| Static [N] | Dynamic [N] | [RPM] | [ ° ] | [g] | |
GFB-BB-P08-POM-PA-GL | 80 | 94 | 2200 | 5 | 20.7 |
GFB-BB-P10-POM-PA-GL | 110 | 130 | 1900 | 5 | 33.6 |
GFB-BB-P12-POM-PA-GL | 130 | 147 | 2000 | 5 | 55.4 |
| GFB-BB-P08-POM-PA-ES | 80 | 94 | 2200 | 5 | 22.9 |
GFB-BB-P12-POM-PA-ES | 110 | 130 | 1900 | 5 | 35.8 |
| GFB-BB-P12-POM-PA-ES | 130 | 147 | 2000 | 5 | 57.5 |
● Maintenance-free, dry-running
● Easy assembly
● Compensation of misalignment errors
● Compensation of edge loads
● Internal thread design
● Maintenance-free and corrosion-resistant
● Easy connection - easy assembly
● Fits directly and space-saving
● External thread design
● Maintenance-free and corrosion-resistant
● Easy connection - easy assembly
● Fits directly and space-saving
● Spherical ball made of highly wear-resistant EPB15
● Housing made of high strength and shape-stable M163
● Connection rod made of high strength aluminum alloy
● The center distance up on request
● Maintenance-free and dry operation
● Resistant to dust and dirt
● Absolute corrosion resistance
● Mechanical connector between two components
● Maintenance-free and dry operation
● Resistant to dust and dirt
● High radial loads and compensation of edge loads
● Compensation of misalignment errors
● Maintenance-free and dry operation
● Resistant to dust and dirt
● High radial loads and compensation of edge loads
● Compensation of misalignment errors
● Maintenance-free and dry operation
● Resistant to dust and dirt
● Absolute corrosion resistance
● Compensation of misalignment errors
● Internal thread design
● Maintenance-free and dry operation
● Absolute corrosion resistance
● Compensation of misalignment errors
● External thread design
● Maintenance-free and dry operation
● Absolute corrosion resistance
● Compensation of misalignment errors
● Maintenance-free and corrosion-resistant
● Resistant to dust and dirt
● Max tolerance compensation ±0.2mm
● Easy installation
● Maintenance free and self-lubricated
● Self-compensation for the installation deviation
● Impact resistance and silent operation
● Dust resistance with light weight
