Product Features

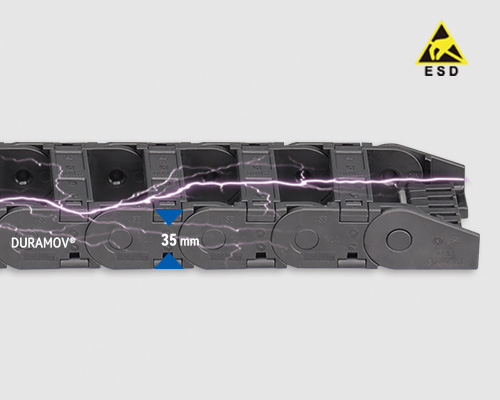

C02E.35 ESD universal cable carriers for a wide range of applications, easy and versatile assembly combined with ruggedness - high strength paired with quieter motion - long cable life and many mounting options.

● Electro-Static discharge，Surface resistance <10⁹Ω

● Long-term application temperature：-40/+120℃

● Inner height：35 mm
● Inner width：50-150 mm
● Bend radius：63-250 mm
● Link pitch：56 mm

Cable chains

Mounting brackets - Locking

Mounting brackets - Pivoting

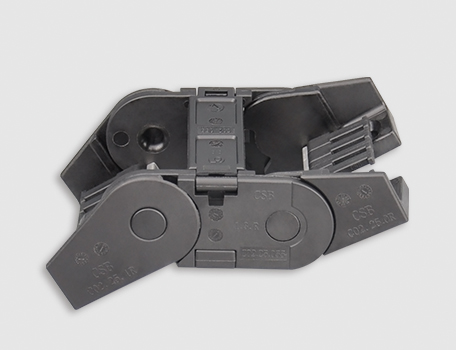

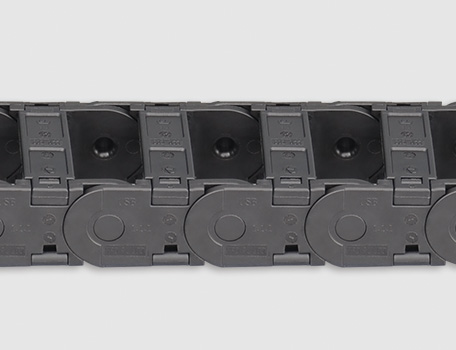

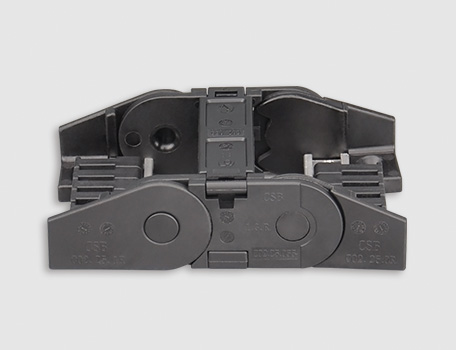

C02E.35 ESD universal cable carriers

Part no.:

Download CAD

Cart

Shooping

Dimensions

▊Installation dimensions

Unsupported length	≤ 2.8m	Speed / acceleration FL_G	≤ 10 [m/s] / 50 [m/s² ]
Sliding length	10-150m	Speed / acceleration FL_B	≤ 3 [m/s] / 6 [m/s² ]
Vertical hanging	≤ 40m	Sliding speed / acceleration	Inapplicable
Vertical standing	≤ 3.0m	Permitted temperature	-40℃ ~120℃
Side-unsupported length	≤ 1.5m	Flammability Class	UL94 HB

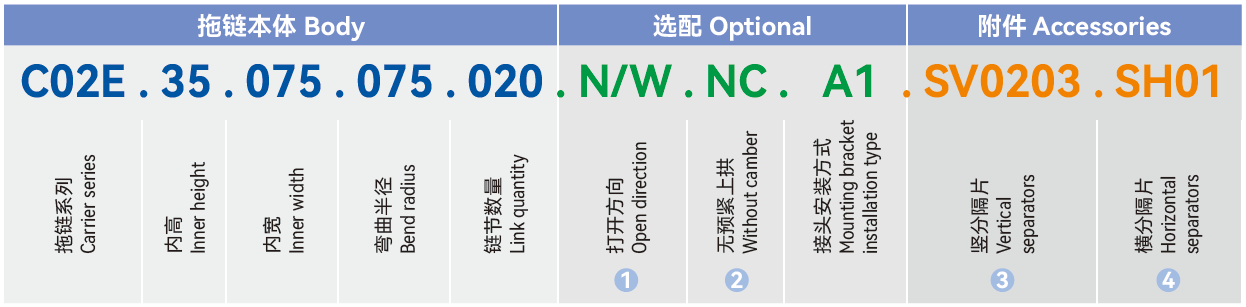

▊Order code for pre-assembled cable carriers


① Blank: Openable along the both sides. N: Onlyopenable along the inner radius. W: Only openable along the outer radius.
② Upon request for NC version without camper.
③ SV0203: Install 3pcs vertical separators every other 2pcs blank links.
④ SH01: Horizontal separator 1pc installed in the middle hole.

Tie-wrap elements for C02 cable carriers

● Aluminum alloy, surface anodized

● The tiewrap elements can move within the guide slot

● Available as an individual component

● Can be clipped into C-proﬁle bracker

Details

BL Bellows

BL bellows is suitable for use in general mechanical applications, The good anti-freezing ability and self-extinguishing properties can be used in automotive industries. The bellows keep high impact resistance in ...

Details

Horizontal separators

● Use with vertical separators to arrange the space in the cable chain in layers up and down.
● The vertical separators can move freely along the horizontal direction.

Details

C-profile brackets for C02 cable carriers

● Aluminum alloy, surface anodized

● The tiewrap elements can move within the guide slot

Details

Vertical separators for C02 cable carriers

● The separator separates inside space of the chain to protect cables, oil hoses, gas hoses, etc.

● Separator with high strength, can be ﬁrmly ﬁtted in carriers

Details

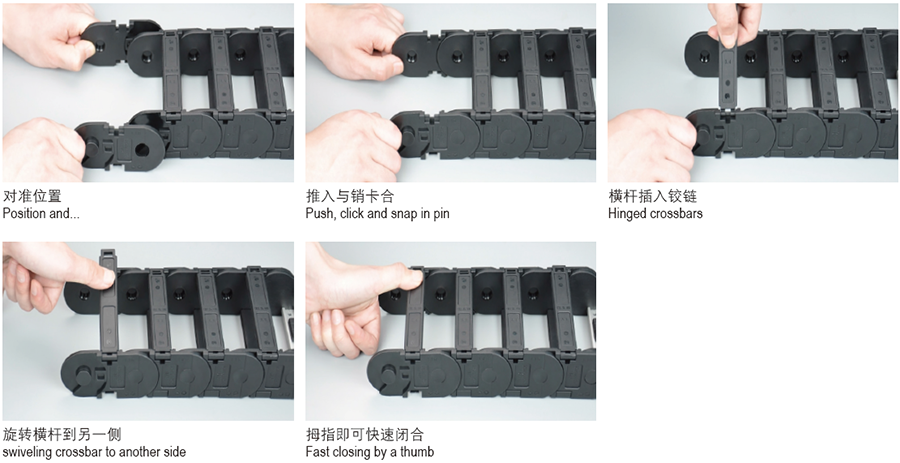

▊ Installation

▊Installation dimensions

ESD universal cable chains installation dimensions

*Please consult CSB® if space is particularly restricted.

R	063	075	100	125	150	175	200	250
H	176	200	250	300	350	400	450	550
D	172	184	209	234	259	284	309	359
K	310	350	430	505	585	665	745	900

*The required clearance height：H_F=H+25mm（负载 1.5kg/m)

▊Mounting bracket installation optional

ESD universal cable chains mounting bracket installation optional

*C02E.35 Possible installation configurations
*A1|A2|A3|A4 Please indicate installation code for pre-assembled chains

▊C02E.35.Bi.01.P.C

ESD universal cable chains special optional

*For unsupported and gliding applications

ESD universal cable chains S-shaped Standing

*S-shaped Standing
