Product Features

BL bellows is suitable for use in general mechanical applications, The good anti-freezing ability and self-extinguishing properties can be used in automotive industries. The bellows keep high impact resistance in cold temperatures and good weather resistance.

● Self-extinguishing class V2
● Made of polyamide with specially modified to withstand freezing temperatures
● Halogen and cadmium free, high impact resistance, even at low temperatures
● Temperature range:-40℃ to +105℃; short-term: +150℃
● Chemical resistance: Against fuels, mineral oils, greases, alkalis, weak acids and bases, etc.

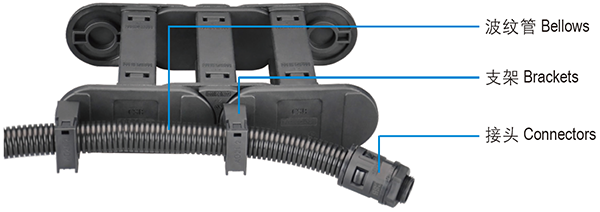

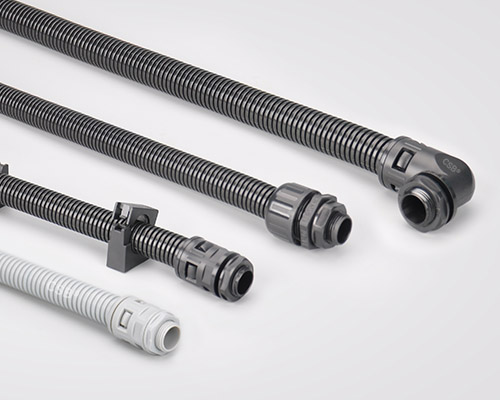

BL01 Bellows

● Made of polyamide with specially modified to withstand freezing temperatures
● Halogen and cadmium free, high impact resistance, even at low temperatures

Details

BL02 Bellows

● Self-extinguishing class V2
● Temperature range:-40℃ to +105℃; short-term:+150℃

Details

VHB Brackets

● Compact modular design to save installation time, space and cost
● Long life and safety in use
● Excellence in impact strength

Details

QDC Quick connectors

● Wide range of applications for maximum safety and sealing performance
● Great durability, anti-aging, safe to use, long life
● Excellence in impact strength

Details

WPC Water-proof connectors

● Waterproof grade IP68
● Reliable waterproof performance with sealing ring, strong tensile strength
● Not easy to age, safe to use, long service life

Details

RAC Right-angle connectors

● Compact modular design reduces cost and provides less installation time and space
● Application safely, long life, good durability
● Excellence in impact strength

Details

▊ Suitable for cable chains

Cable chains part No.	Inner height Hi [mm]	Outer height Ha [mm]	Bellows	Brackets	Bellows outer diameter [mm]
C02.35	35	50	AD13.0 to AD25.0	VHB-AD13.0 to VHB-AD25.0	≤25
C02.45	45	64	AD13.0 to AD28.5	VHB-AD13.0 to VHB-AD28.5	≤28.5
C02.35E	35	50	AD13.0 to AD25.0	VHB-AD13.0 to VHB-AD25.0	≤25
C02.45E	45	64	AD13.0 to AD28.5	VHB-AD13.0 to VHB-AD28.5	≤28.5
C03.32	32	54	AD13.0 to AD21.2	VHB-AD13.0 to VHB-AD21.2	≤21.2
C03.42	42	64	AD13.0 to AD28.5	VHB-AD13.0 to VHB-AD28.5	≤28.5
C03.56	56	84	AD13.0 to AD42.5	VHB-AD13.0 to VHB-AD42.5	≤42.5
C03.80	80	108	AD13.0 to AD54.5	VHB-AD13.0 to VHB-AD54.5	≤54.5

Bellows

BL Bellows 1627

Time 10-2023

Type PDF

No. CSB/CAT.064

Size 477MB

1627

download

DURAMOV®

Cable Chain Finder V1.1

view tools

DURAMOV® Cable Chain Finder V1.1

▊DURAMOV® Cable Chain Finder[V1.1] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations filler and installation data by entering parameters such as cables, gas tubes, oil tubes and installation data, The system will analyze your design data and finally output the adaptation cable chains.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the cable chains must be tested again to verify whether it meets the actual use requirements.
▊DURAMOV® Cable Chain Finder output data information is only for design reference, and can not be used as the final standard for determining the cable chains conformity, If you have any questions, please contact CSB® sales engineers.
