Product Features

C02.45 universal cable carriers for a wide range of applications, easy and versatile assembly combined with ruggedness - high strength paired with quieter motion - long cable life and many mounting options.

● Long-term application temperature：-40/+120℃
● Inner height：45 mm
● Inner width：75-175 mm
● Bend radius：75-300 mm
● Link pitch：67 mm

Electrically conductive ESD/ATEX version C02E.45 upon request

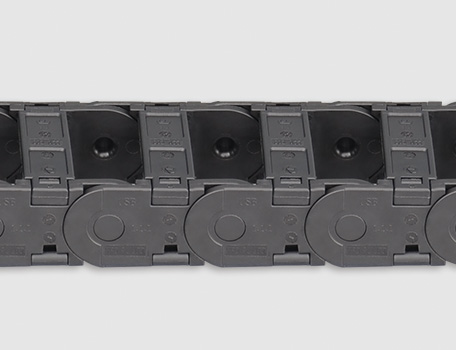

Cable chains

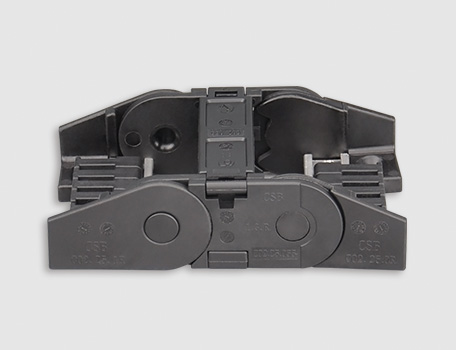

Mounting brackets - Locking

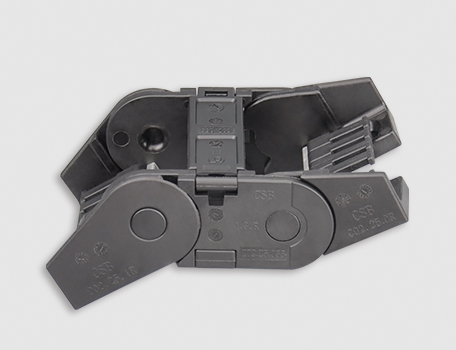

Mounting brackets - Pivoting

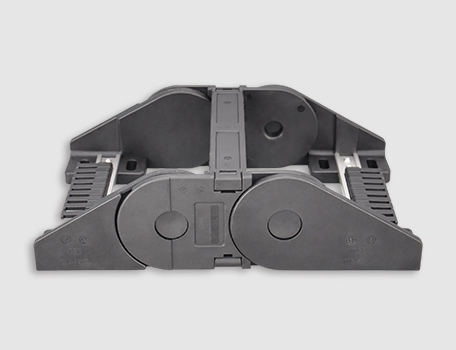

2×2pcs mounting holes - Locking

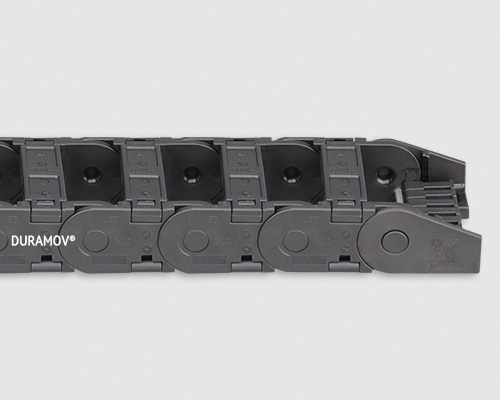

C02.45 Universal cable carriers

Part no.:

Download CAD

Cart

Shooping

Dimensions

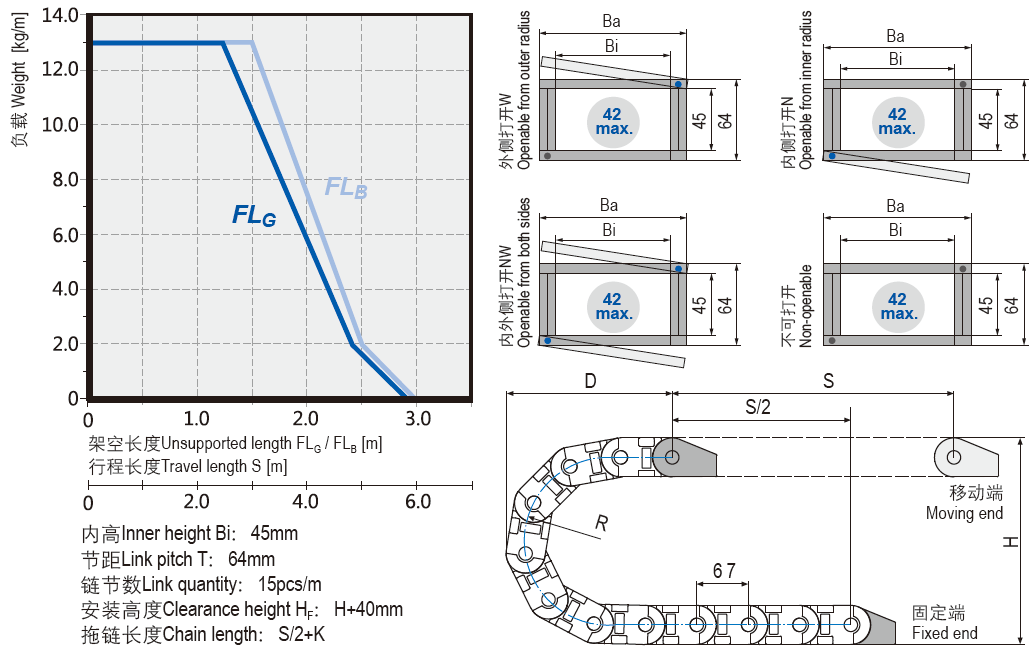

▊Installation dimensions

Unsupported length	≤ 3.7m	Speed / acceleration FL_G	≤ 10 [m/s] / 50 [m/s² ]
Sliding length	10-150m	Speed / acceleration FL_B	≤ 3 [m/s] / 6 [m/s² ]
Vertical hanging	≤ 50m	Sliding speed / acceleration	Inapplicable
Vertical standing	≤ 4.5m	Permitted temperature	-40℃ ~120℃
Side-unsupported length	≤ 2.5m	Flammability Class	UL94 HB

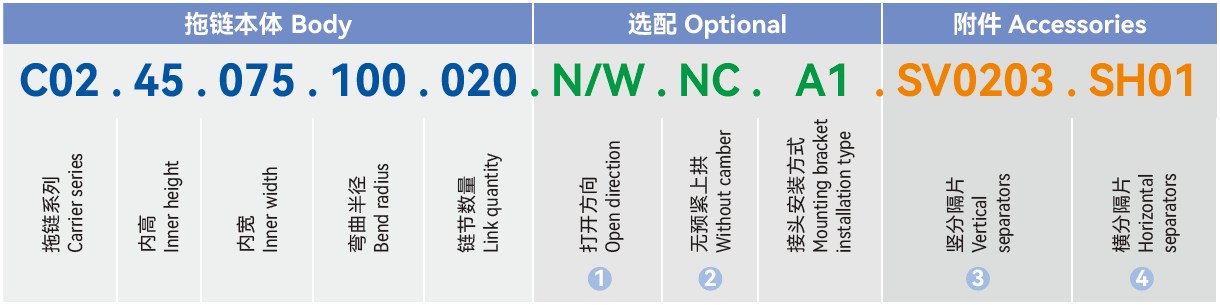

▊Order code for pre-assembled cable carriers


① Blank: Openable along the both sides. N: Onlyopenable along the inner radius. W: Only openable along the outer radius.
② Upon request for NC version without camper.
③ SV0203: Install 3pcs vertical separators every other 2pcs blank links.
④ SH01: Horizontal separator 1pc installed in the middle hole.

Tie-wrap elements for C02 cable carriers

● Aluminum alloy, surface anodized

● The tiewrap elements can move within the guide slot

● Available as an individual component

● Can be clipped into C-proﬁle bracker

Details

BL Bellows

BL bellows is suitable for use in general mechanical applications, The good anti-freezing ability and self-extinguishing properties can be used in automotive industries. The bellows keep high impact resistance in ...

Details

Horizontal separators

● Use with vertical separators to arrange the space in the cable chain in layers up and down.
● The vertical separators can move freely along the horizontal direction.

Details

C-profile brackets for C02 cable carriers

● Aluminum alloy, surface anodized

● The tiewrap elements can move within the guide slot

Details

Vertical separators for C02 cable carriers

● The separator separates inside space of the chain to protect cables, oil hoses, gas hoses, etc.

● Separator with high strength, can be ﬁrmly ﬁtted in carriers

Details

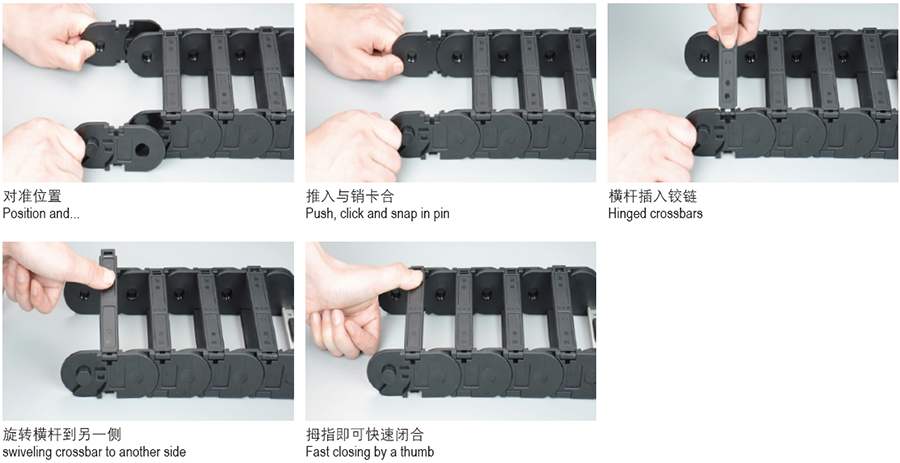

▊ Installation

▊Installation dimensions

Universal cable chains installation dimensions

*Please consult CSB® if space is particularly restricted.

R	075	100	125	150	200	250	300
H	214	264	314	364	464	564	664
D	208	233	258	283	333	383	433
K	370	450	530	610	765	920	1080

*The required clearance height：H_F=H+25mm（Fill weight 1.5kg/m)

▊C02.45 For long travels gliding applications | 10-150m


R	075	100	125	150	200	250	300
H2	150	200	186	186	186	186	186
D2	208	233	475	570	780	1010	1150
K2	370	450	804	1005	1340	1675	1943
△CL	-	-	233	303	463	643	733

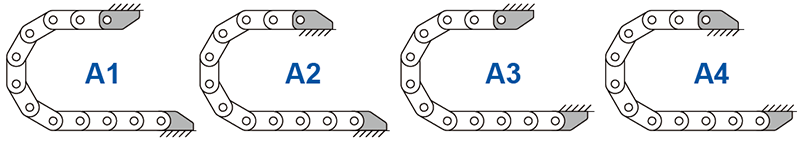

▊Mounting bracket installation optional

Universal cable chains mounting bracket installation optional

*C02.45 Possible installation configurations
*A1|A2|A3|A4 Please indicate installation code for pre-assembled chains

▊C02.45.Bi.01.P.C

Universal cable chains special optional

*For unsupported and gliding applications

Universal cable chains S-shaped Standing

*S-shaped Standing

C02 Universal cable chains 1684
