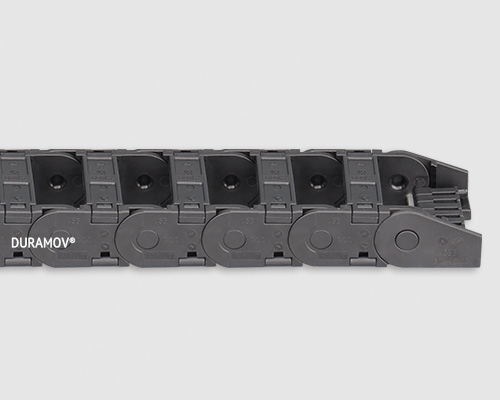

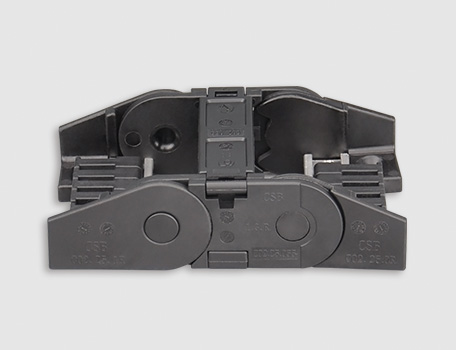

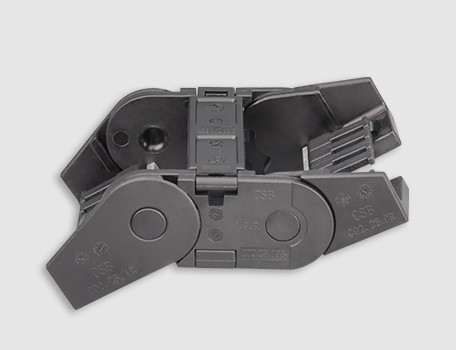

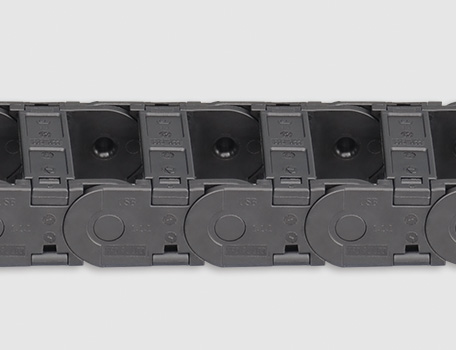

C02.25 Universal cable carriers

Product Features

C02.25 universal cable carriers for a wide range of applications, easy and versatile assembly combined with ruggedness - high strength paired with quieter motion - long cable life and many mounting options.

● Long-term application temperature：-40/+120℃
● Inner height：25 mm
● Inner width：38-125 mm
● Bend radius：55-250 mm
● Link pitch：46 mm

ESD CABLE CHAINSElectrically conductive ESD/ATEX version C02E.25 upon request

C02.25 Universal cable carriers
Part no.:
Inner width Bi [mm]：
Outer width Ba [mm]：
Inner height Hi [mm]：
Outer height Ha [mm]：
Link pitch T [mm]：
Bend radius R [mm]：
Nominal clearance height [mm]：
Final position D[mm]：
Add-on for R K[mm]：
Max. unsupported L[m]：
Max. hanging L[m]：
Max. standing L[m]：
*Lead time [wks]：
Inner width Bi [mm]：
Outer width Ba [mm]：
Inner height Hi [mm]：
Outer height Ha [mm]：
Link pitch T [mm]：
Bend radius R [mm]：
Nominal clearance height H [mm]：
Final position D [mm]：
Add-on for R K [mm]：
Max. unsupported L [m]：
Max. hanging L [m]：
Max. standing L [m]：
*Lead time [wks]：

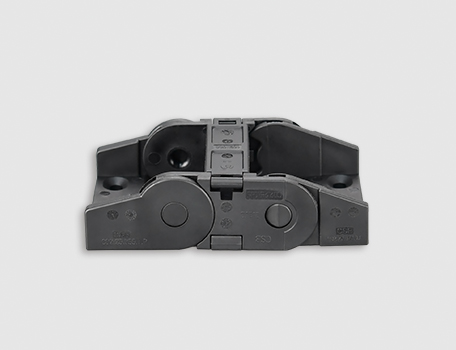

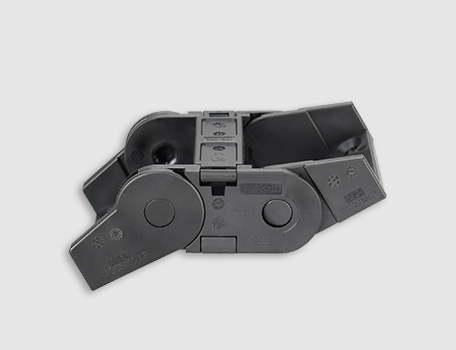

Fixed end：
Moving end：
Inner width Bi [mm]：
A [mm]：
X [mm]：
M [mm]：
Tiewrap elements [pcs]：
*Lead time [wks]：
Fixed end：
Moving end：
Inner width Bi [mm]：
A [mm]：
X [mm]：
M [mm]：
Tiewrap elements [pcs]：
*Lead time [wks]：
Fixed end：
Moving end：
Inner width Bi [mm]：
A [mm]：
X [mm]：
M [mm]：
Fixed end：
Moving end：
Inner width Bi [mm]：
A [mm]：
X [mm]：
M [mm]：
Number of teeth [pcs]：
Number of teeth [pcs]：
Fixed end：
Moving end：
Inner width Bi [mm]：
A [mm]：
X [mm]：
M [mm]：
*Lead time [wks]：
Fixed end：
Moving end：
Inner width Bi [mm]：
A [mm]：
X [mm]：
M [mm]：
*Lead time [wks]：
*Lead time [wks]：
*Lead time [wks]：
Download CAD
Cart
Shooping
Dimensions

▊Installation dimensions


Unsupported length

≤ 2.4m


Speed / acceleration FLG

≤ 10 [m/s] / 50 [m/s² ]

Sliding length

10-120m

Speed / acceleration FLB

≤ 3 [m/s] / 5 [m/s² ]

Vertical hanging

≤ 30m

Sliding speed / acceleration

Inapplicable

Vertical standing

≤ 2.5m

Permitted temperature

-40℃ ~120℃

Side-unsupported length

≤ 1.0m

Flammability Class

UL94 HB

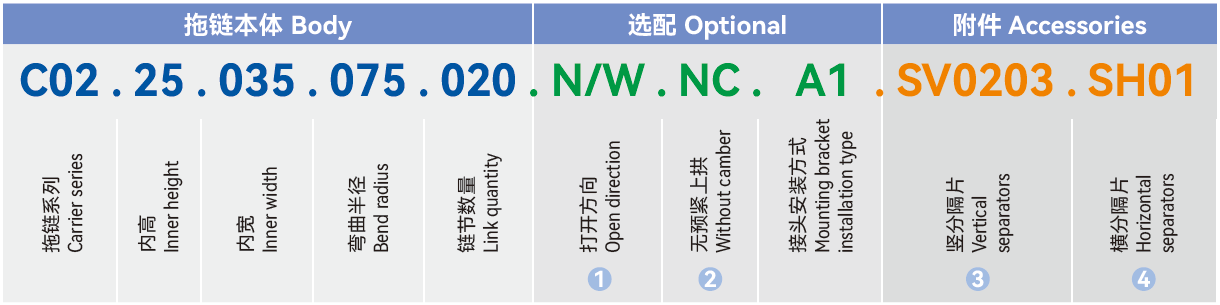

▊Order code for pre-assembled cable carriers


① Blank: Openable along the both sides. N: Onlyopenable along the inner radius. W: Only openable along the outer radius.
② Upon request for NC version without camper.
③ SV0203: Install 3pcs vertical separators every other 2pcs blank links.
④ SH01: Horizontal separator 1pc installed in the middle hole.

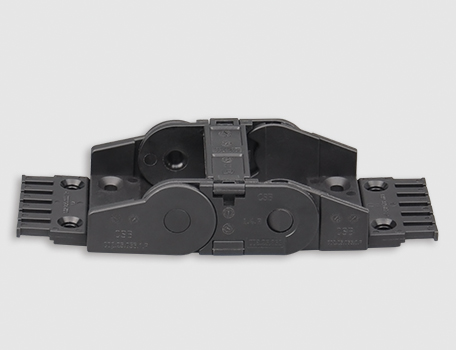

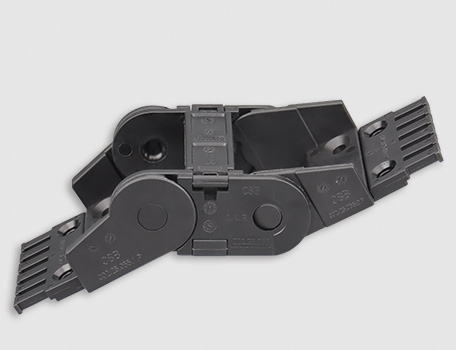

Tie-wrap plates
Tie-wrap plates

● Can be clipped onto some mounting brackets
●Can be used as a single part in some machines with screw bolts
● Available as an individual component

Details
Horizontal separators
Horizontal separators

● Use with vertical separators to arrange the space in the cable chain in layers up and down.
● The vertical separators can move freely along the horizontal direction.

Details

▊ Installation

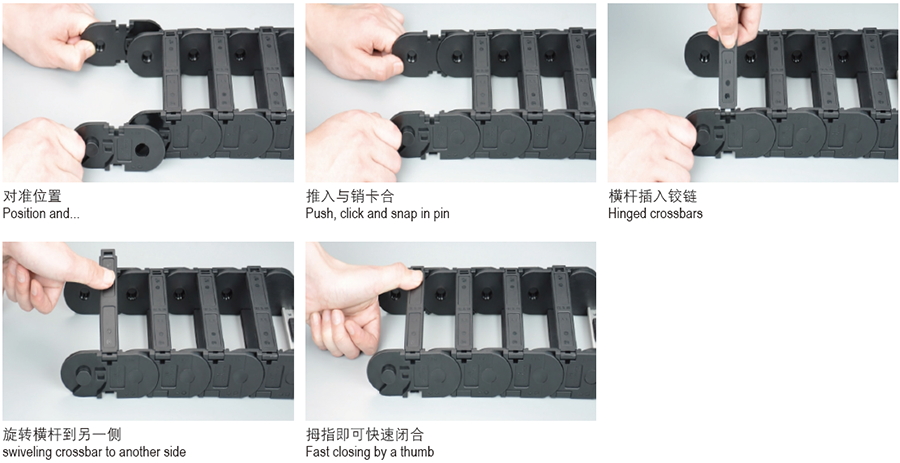

CSB Universal cable chains installation

▊Installation dimensions

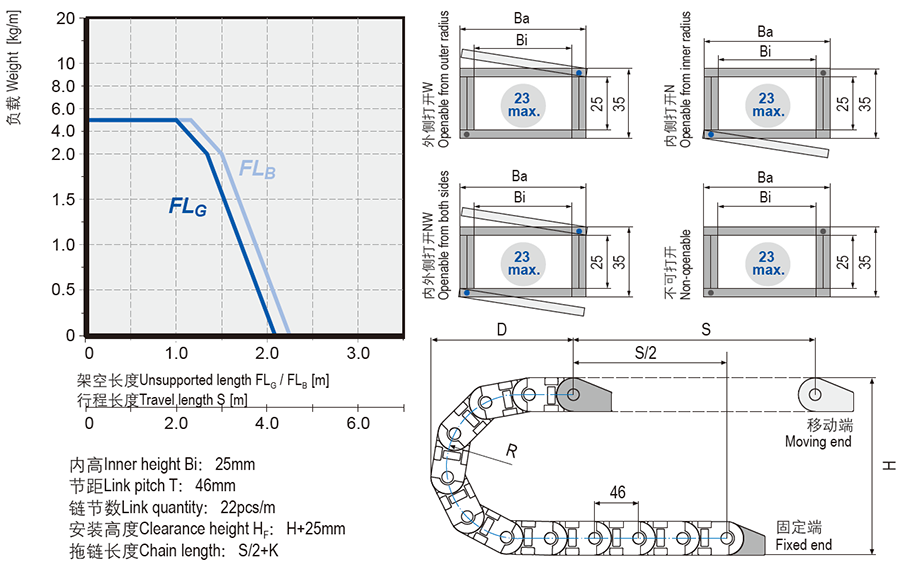

Universal cable chains installation dimensions

*Please consult CSB® if space is particularly restricted.

R055075100125150175200225250
H145185235285335385435485535
D142162187212237262287312337
K265330410485565645725800880

*The required clearance height：HF=H+25mm（Fill weight 1.5kg/m)

▊C02.25 For long travels gliding applications | 10-120m


R055075100125150175200225250
H2110150100100100100100100100
D214216238044059075595010401130
K226533064473610121242147216101794
△CL--204244364504674754804

▊Mounting bracket installation optional

Universal cable chains mounting bracket installation optional

*C02.25 Possible installation configurations
*A1|A2|A3|A4 Please indicate installation code for pre-assembled chains

▊C02.25.Bi.01.P.C

Universal cable chains special optional

*For unsupported and gliding applications

Universal cable chains S-shaped Standing

*S-shaped Standing


C02 Universal cable chains
C02 Universal cable chains 1684
Time 12-2025
Type PDF
No. CSB/CAT.067E
Size 739KB
