Product Features

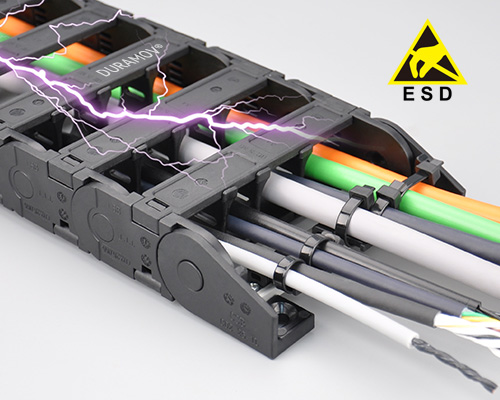

C02E ESD universal cable carriers for a wide range of applications, easy and versatile assembly combined with ruggedness - high strength paired with quieter motion - long cable life and many mounting options.

● Electro-Static discharge，Surface resistance <10⁹Ω

● Easy assembly: Chain links openable along inner or outer radius from both sides

● High strength: large pin/bore and crossbar with high locking force

● Long service life: lateral sliding surfaces design

● For long unsupported lengths: strength and double stop-dog design

● Universal connection: many mounting options with or without strain relief

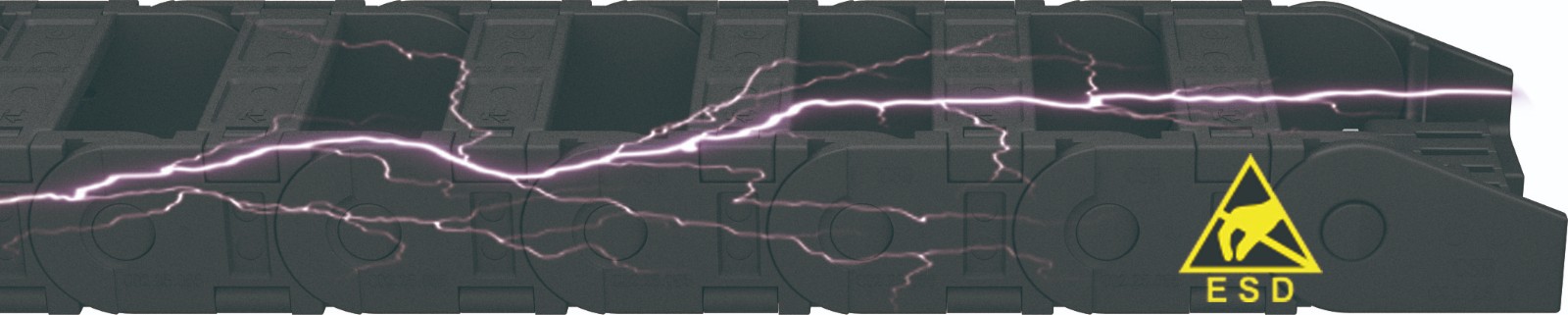

C02E.18 ESD universal cable carriers

● Inner height：18 mm

● Inner width：38-125 mm
● Bend radius：38-250 mm
● Link pitch：40 mm

Details

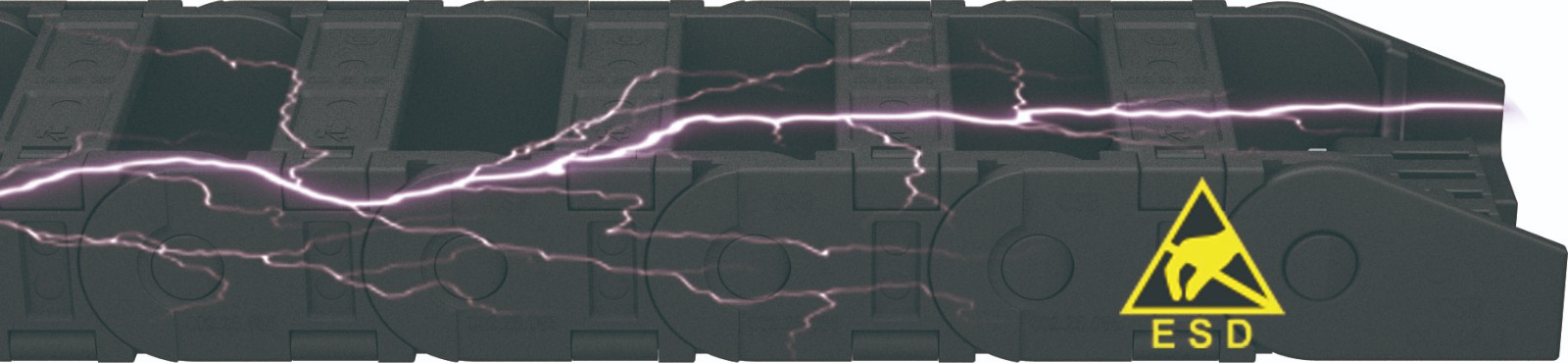

C02E.25 ESD universal cable carriers

● Inner height：25 mm

● Inner width：38-125 mm
● Bend radius：55-250 mm
● Link pitch：46 mm

Details

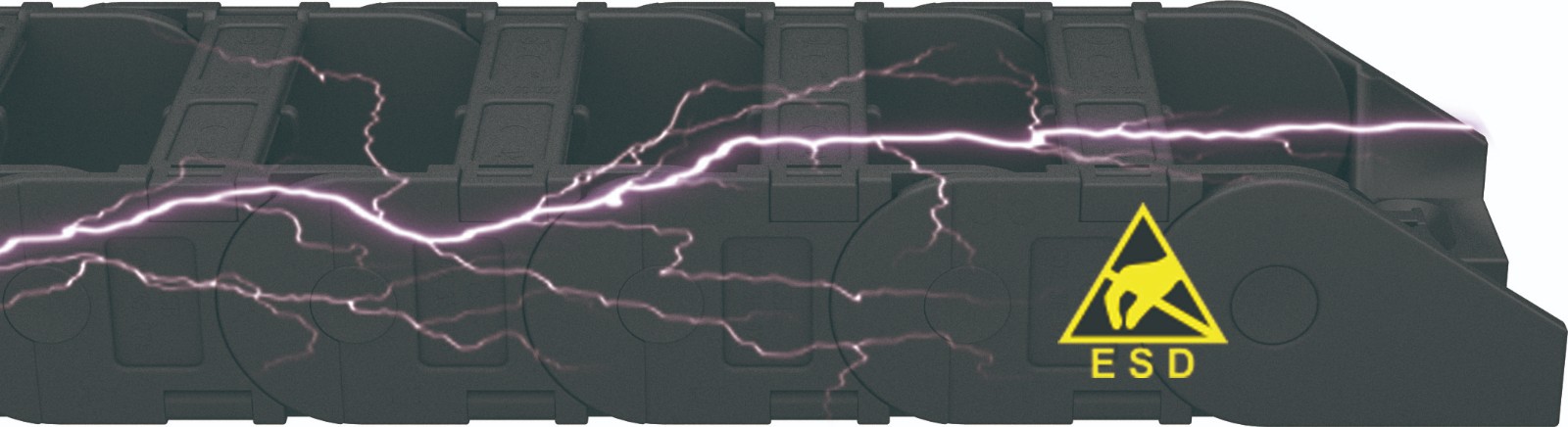

C02E.35 ESD universal cable carriers

● Inner height：35 mm

● Inner width：50-150 mm
● Bend radius：63-250 mm
● Link pitch：56 mm

Details

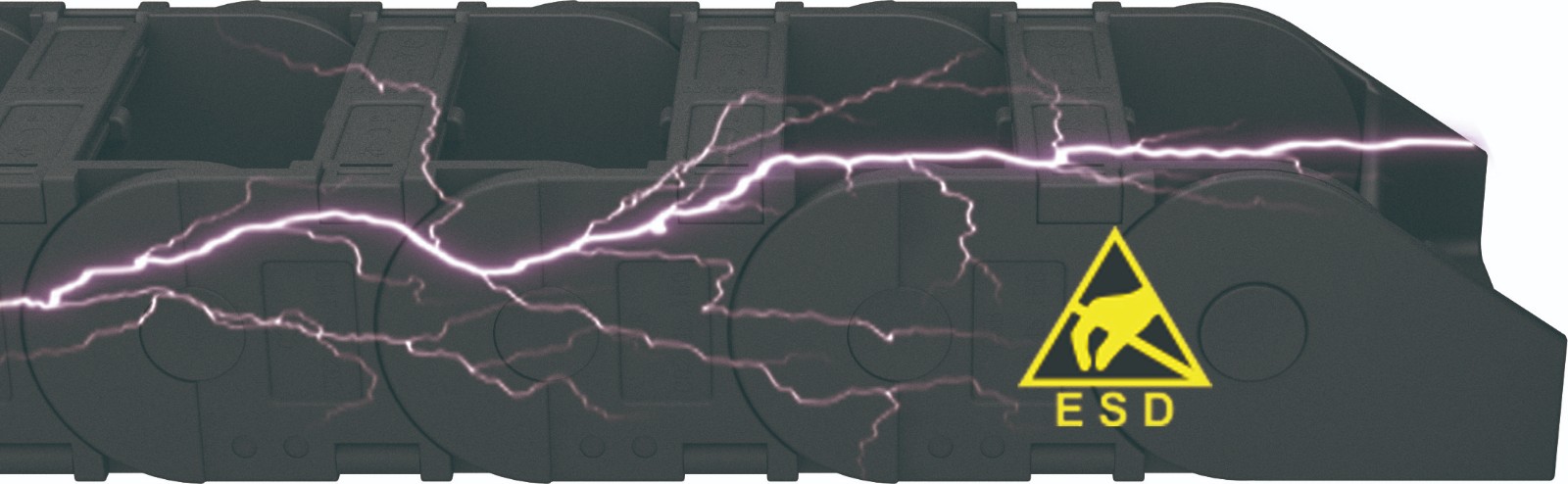

C02E.45 ESD universal cable carriers

● Inner height：45 mm

● Inner width：75-175 mm
● Bend radius：75-300 mm
● Link pitch：67 mm

Details

▊ Product introduction

C02E ESD universal cable carriers for a wide range of C02E ESD universal cable chains

applications, easy and versatile assembly combined with

ruggedness - high strength paired with quieter motion -

long cable life and many mounting options.

ESD universal cable chains multiple opening methods

Multiple opening methods

ESD universal cable chains flammability class Flammability Class UL94 HB

ESD universal cable chains CE certification CE certification

ESD universal cable chains RoHS certificatio RoHS certification

▊ Standard dimensions

Universal cable carriers	Part No.	Inner width Bi [mm]	Outer width Ba [mm]	Inner height Hi [mm]	Outer height Ha [mm]	Bend radius R [mm]	Unsupported length [m]
	C02E.18	38-125	54-141	18	28	38-150	≤1.8
	C02E.25	38-125	54-141	25	35	55-250	≤2.4
	C02E.35	50-150	66-194	35	50	63-250	≤2.8
	C02E.45	75-175	95-270	45	64	75-300	≤3.7

BL Bellows

BL bellows is suitable for use in general mechanical applications, The good anti-freezing ability and self-extinguishing properties can be used in automotive industries. The bellows keep high impact resistance in ...

Details

Tie-wrap elements for C02 cable carriers

● Aluminum alloy, surface anodized

● The tiewrap elements can move within the guide slot

● Available as an individual component

● Can be clipped into C-proﬁle bracker

Details

Horizontal separators

● Use with vertical separators to arrange the space in the cable chain in layers up and down.
● The vertical separators can move freely along the horizontal direction.

Details

C-profile brackets for C02 cable carriers

● Aluminum alloy, surface anodized

● The tiewrap elements can move within the guide slot

Details

Vertical separators for C02 cable carriers

● The separator separates inside space of the chain to protect cables, oil hoses, gas hoses, etc.

● Separator with high strength, can be ﬁrmly ﬁtted in carriers

Details

No videos

▊ Installation

▊ Distribution rules | Cables and hoses

In order to ensure that the chain is functioning properly and to avoid damage to the cables or hoses, the following principles must be observed when laying cables or hoses:

	▊ This minimum clearance would be 10% for electrical round cables, 20% for hydraulic hoses.
	▊ In order to reduce the possible friction, avoid pipes with different skin materials such as cables or hoses.（eg: cable and hydraulic hoses）
	▊ In applications where multiple cables and hoses are used, in order to avoid mutual friction between them, it is preferable to place them in a suitable separate space and separate them from each other with a spacer. If there are no conditions to achieve, make sure there is enough space between them to avoid mutual friction (H<D).
	▊ The cables or hoses are laid in a symmetrical manner according to their diameter and weight. The largest and heaviest cables are placed on the outside of the section and the small and light cables are placed on the inside.

▊ Typical Applicable Industries and Applications

● General machinery

● Construction machinery

● Printer and plotter

● Handling machines

● Plastic handling machines

● Semi-conductor machines

● Glass machines

● Limited long travel applications

C02 Universal cable chains 1684

Time 12-2025

Type PDF

No. CSB/CAT.067E

Size 739KB

1684

download
