Product Features

● Aluminum alloy, surface anodized

● The tiewrap elements can move within the guide slot

● Easy to assemble and ﬁx cables

● Save assemble time and space,compact modular design

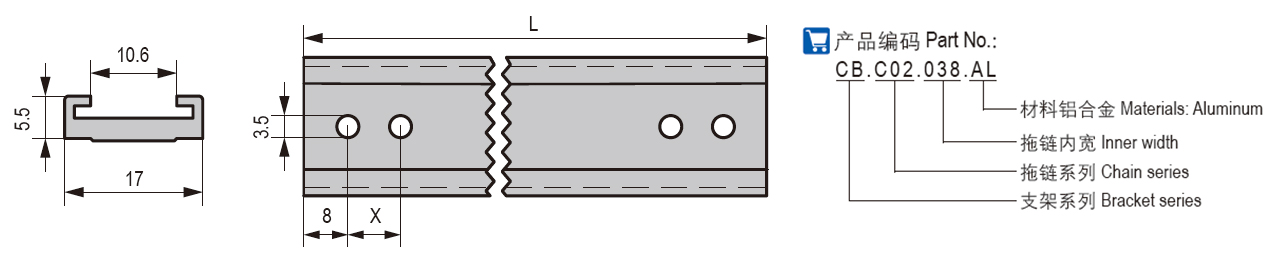

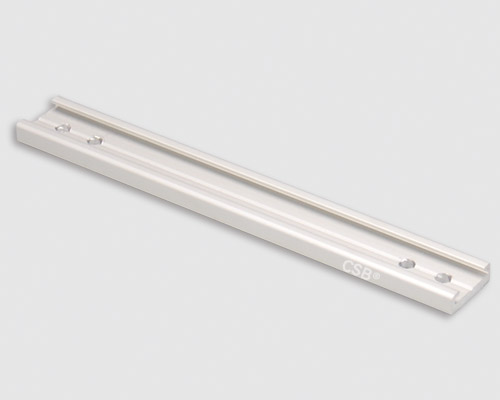

C02-C-proﬁle brackets

Part No.	X (C02.18/25) [mm]	X (C02.35/45) [mm]	L [mm]
CB.C02.038.AL	8	10	38
CB.C02.048.AL	8	10	48
CB.C02.050.AL	8	10	50
CB.C02.057.AL	8	10	57
CB.C02.060.AL	8	10	60
CB.C02.067.AL	8	10	67
CB.C02.077.AL	8	10	77
CB.C02.080.AL	8	10	80
CB.C02.087.AL	8	10	87
CB.C02.100.AL	8	10	100
CB.C02.103.AL	8	10	103
CB.C02.125.AL	8	10	125
CB.C02.150.AL	8	10	150
CB.C02.175.AL	8	10	175

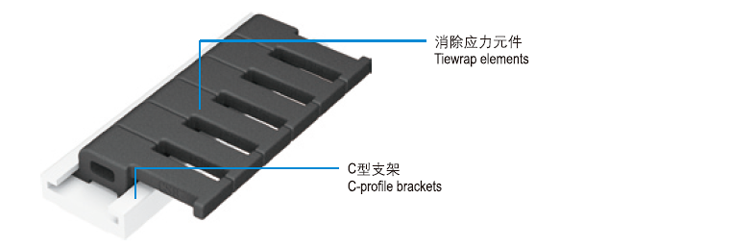

Strain relief elements installation for C02 cable carriers

C型支架安装示意图

Tie-wrap elements for C02 cable carriers

● Aluminum alloy, surface anodized

● The tiewrap elements can move within the guide slot

● Available as an individual component

● Can be clipped into C-proﬁle bracker

Details

DURAMOV® Cable carrier accessories 6415

Time 12-2024

Type PDF

No. CSB/CAT.067

Size 440KB

6415

download

DURAMOV®

Cable Chain Finder V1.1

view tools

DURAMOV® Cable Chain Finder V1.1

▊DURAMOV® Cable Chain Finder[V1.1] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations filler and installation data by entering parameters such as cables, gas tubes, oil tubes and installation data, The system will analyze your design data and finally output the adaptation cable chains.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the cable chains must be tested again to verify whether it meets the actual use requirements.
▊DURAMOV® Cable Chain Finder output data information is only for design reference, and can not be used as the final standard for determining the cable chains conformity, If you have any questions, please contact CSB® sales engineers.
