▊Sliding layer materials TEFPLAS®
TEFPLAS® B is a standard sliding layer material. It combines high load bearing and wear resistance performance , suitable for hard shafts ≥HRC35 or hard anodized aluminum shafts.
| Materials | Friction coef. dry [u] | Max. static load [Mpa] | Max. dynamic load [Mpa] | Max. PV [N/mm2xm/s] | Max. Speed ,dry [m/s] | Operation temp. [℃] | |
| Continuous | Intermittent | ||||||
| TEFPLAS® B | 0.10-0.25 | 20 | 10 | 0.7 | 1.5 | 4.0 | ±200 |
***For operation under extreme high temperature, it is necessary to consider increasing the fitting clearance to avoid stagnation caused by the high temperature expansion of the shaft and bearing. Please contact us.

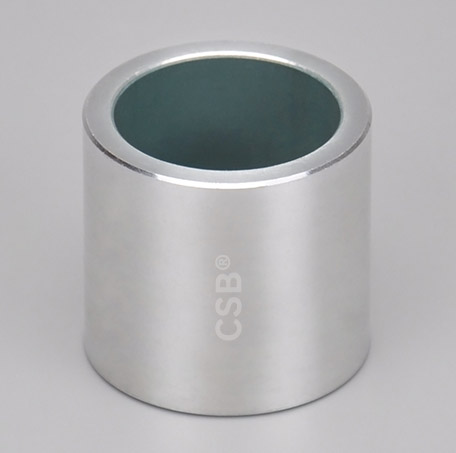

▊Bearing back material
The standard bearing back material is light-weight and high-strength aluminum alloy. When the bearing is used in applications with high requirements for corrosion resistance, it is recommended to use stainless steel back and TEFPLAS® G as the wear-resistant layer material;
