Product Features

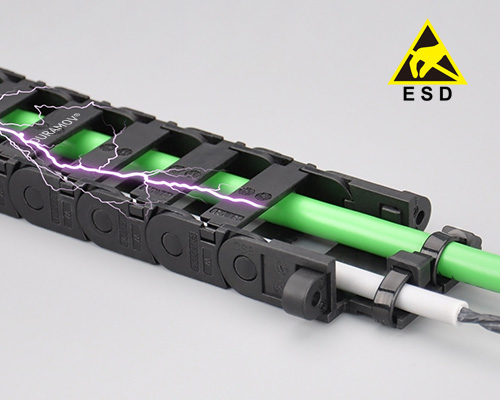

C31E ESD micro cable carriers are openable along the outer radius or inner radius, strong and multi-opening method design, Suitable for highly dynamic applications and cables filled quickly. C31E ESD micro cable carriers are optimal for the smallest installation spaces, and are available in many versions.

● Small pitch for low-noise, smooth running

● Two-pieces design, Openable along the outer radius or inner radius

● Quick flange optional

● Very lightweight, low price smallest inner heights and bend radius

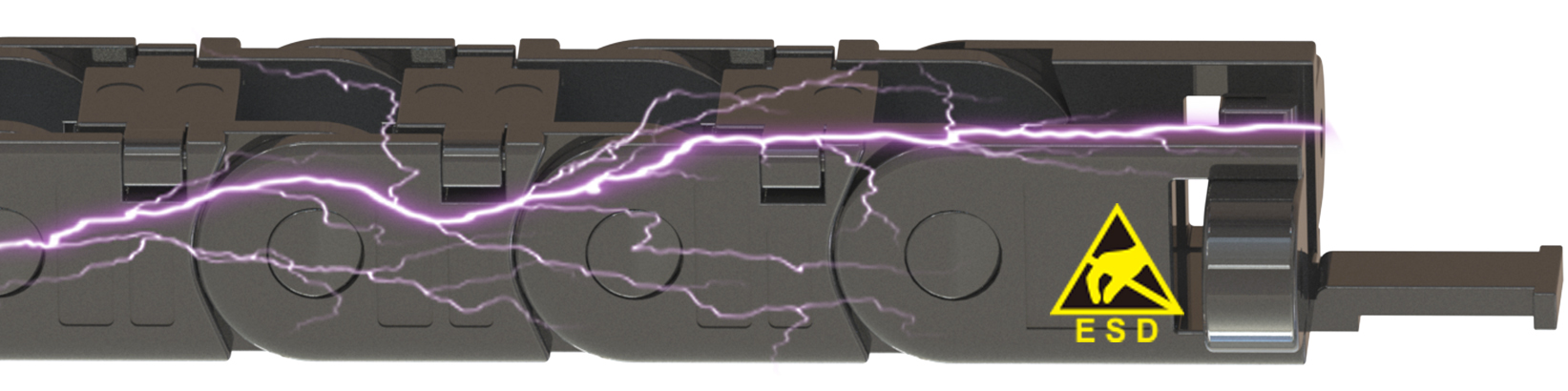

C31E.10 ESD openable micro cable carriers

● Inner height：10 mm
● Inner width：10-30 mm
● Bend radius：18-38 mm
● Link pitch：20 mm

Details

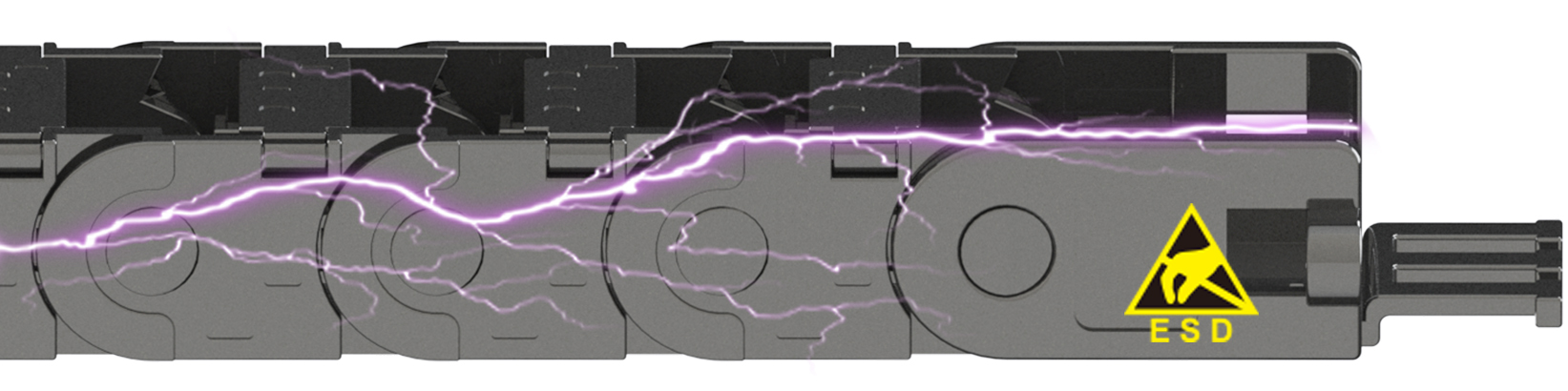

C31E.15 ESD openable micro cable carriers

● Inner height：15 mm
● Inner width：16-50 mm
● Bend radius：28-48 mm
● Link pitch：20 mm

Details

C31E.20 ESD openable micro cable carriers

● Inner height：20 mm
● Inner width：15-50 mm
● Bend radius：28-48 mm
● Link pitch：20 mm

Details

▊ Product introduction

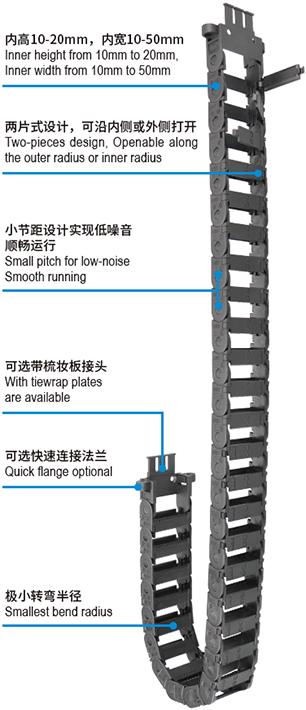

C31 Openable micro cable chains

C31E ESD micro cable carriers are openable along the outer

radius or inner radius, strong and multi-opening method

design, Suitable for highly dynamic applications and cables

filled quickly. C31E ESD micro cable carriers are optimal

for the smallest installation spaces, and are available in

many versions.

Openable micro cable chains openable along the outer radius Openable along the outer radius

Openable micro cable chains flammability Class Flammability Class UL94 HB

Openable micro cable chains CE certification CE certification

Openable micro cable chains RoHS certification RoHS certification

Openable micro cable chains low-noise Low-noise

▊ Standard dimensions

Micro cable carriers, openable along one side	Part No.	Inner width Bi [mm]	Outer width Ba [mm]	Inner height Hi [mm]	Outer height Ha [mm]	Bend radius R [mm]	Unsupported length [m]
	C31E.10	10-30	17.4-37.4	10	15	18-38	≤0.7
	C31E.15	16-50	23.8-57.8	15	19.5	28-48	≤1
	C31E.20	25-50	36-61	20	25	28-48	≤1

No products

DURAMOV® Cable Chain Test Video

CSB conducts approximately 10 million DURAMOV® cable chain endurance tests at 68 laboratory stations and more than 30 application stations every year. The cable chain test laboratory includes different installation and application tests: short-stroke unsupported installation, vertical hanging, vertical standing, side-mounted and long-stroke sliding tests in outdoor natural climates; The cable chain application station tests include: Application tests of C02 cable chains on machining centers, Application tests of C02 and C06 cable chains on grabbing manipulators or robots, Application tests of C03 cable chains on long-stroke manipulators, Application tests of micro cable chains such as C01 and C31 on high-frequency motion devices...

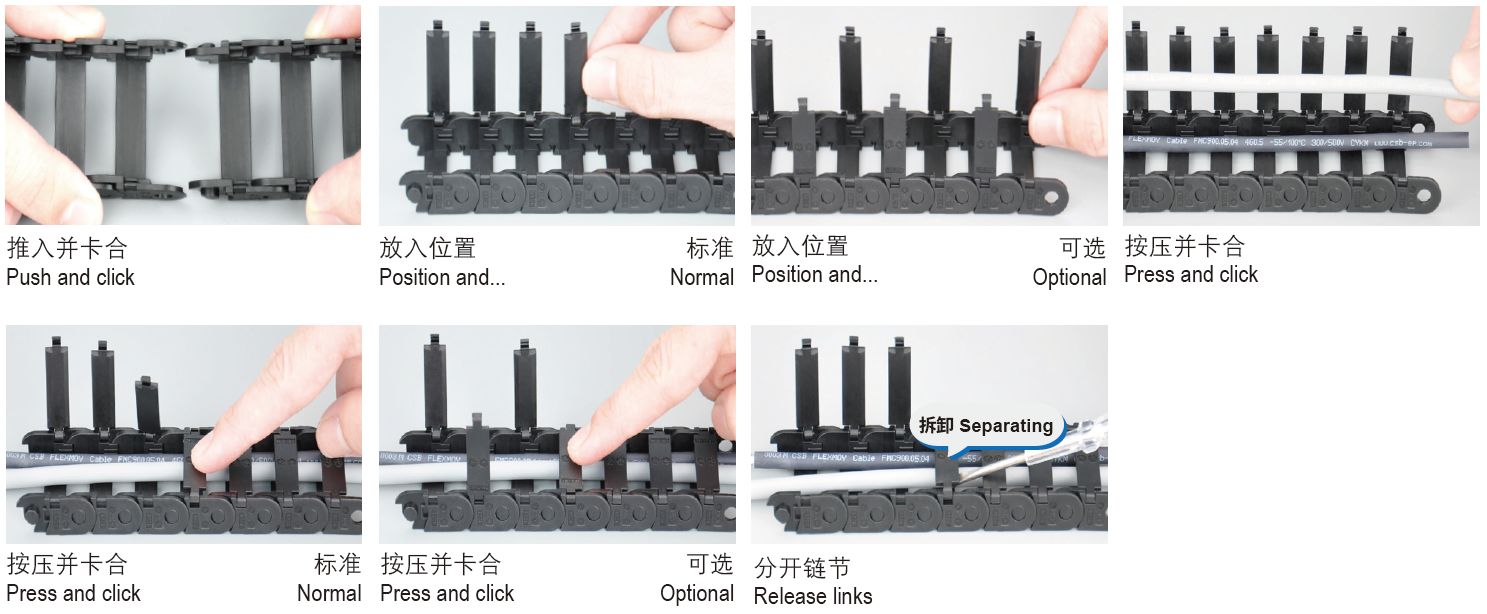

▊ Installation

▊ Distribution rules | Cables and hoses

In order to ensure that the chain is functioning properly and to avoid damage to the cables or hoses, the following principles must be observed when laying cables or hoses:

	▊ This minimum clearance would be 10% for electrical round cables, 20% for hydraulic hoses.
	▊ In order to reduce the possible friction, avoid pipes with different skin materials such as cables or hoses.（eg: cable and hydraulic hoses）
	▊ In applications where multiple cables and hoses are used, in order to avoid mutual friction between them, it is preferable to place them in a suitable separate space and separate them from each other with a spacer. If there are no conditions to achieve, make sure there is enough space between them to avoid mutual friction (H<D).
	▊ The cables or hoses are laid in a symmetrical manner according to their diameter and weight. The largest and heaviest cables are placed on the outside of the section and the small and light cables are placed on the inside.

▊ Typical Applicable Industries and Applications

● General machinery

● Handling machines

● Semi-conductor machines

● Measuring equipment

● Pick & place robots

● Medical industries

● Packaging machines

● Textile machines

C31 Micro cable chains, openable along one side 1038

Time 10-2023

Type PDF

No. CSB/CAT.064

Size 557KB

1038

download

DURAMOV®

Cable Chain Finder V1.1

view tools

DURAMOV® Cable Chain Finder V1.1

▊DURAMOV® Cable Chain Finder[V1.1] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations filler and installation data by entering parameters such as cables, gas tubes, oil tubes and installation data, The system will analyze your design data and finally output the adaptation cable chains.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the cable chains must be tested again to verify whether it meets the actual use requirements.
▊DURAMOV® Cable Chain Finder output data information is only for design reference, and can not be used as the final standard for determining the cable chains conformity, If you have any questions, please contact CSB® sales engineers.
