DURAMOV® Cable carrier accessories 6415
Polymer-tech SolutionsTM

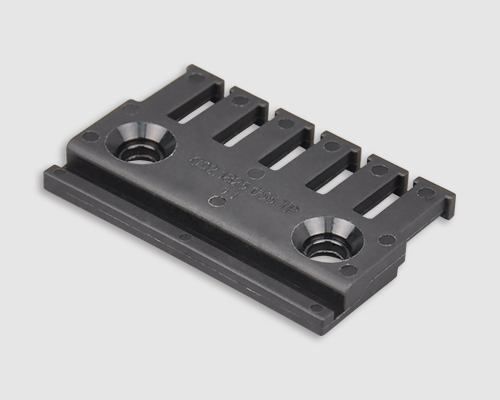

● Can be clipped onto some mounting brackets
●Can be used as a single part in some machines with screw bolts
● Available as an individual component
▊DURAMOV® Cable Chain Finder[V1.1] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations filler and installation data by entering parameters such as cables, gas tubes, oil tubes and installation data, The system will analyze your design data and finally output the adaptation cable chains.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the cable chains must be tested again to verify whether it meets the actual use requirements.
▊DURAMOV® Cable Chain Finder output data information is only for design reference, and can not be used as the final standard for determining the cable chains conformity, If you have any questions, please contact CSB® sales engineers.
Electro-Static discharge，Surface resistance <109Ω, Openable along inner or outer radius from both sides
Inner height: 18 to 45mm
Inner width: 38 to 175mm
Openable along inner or outer radius from both sides, large pin/bore and crossbar with high locking force
Inner height: 18 to 45mm
Inner width: 38 to 175mm
