Product Features

● UC204 up to UC208

● Standard anti-wear composite EPB13 balls,

available materials: FDA grade material EPB6 or 250℃ material EPB10

● Stainless steel housing with 2 mounting holes

● Maintenance-free dry operation

● High load

● Resistant to dirt

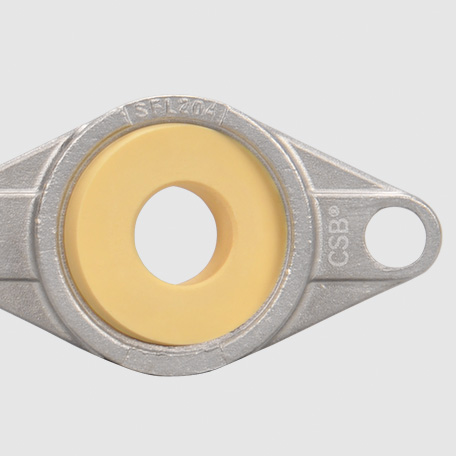

Standard material - EPB13

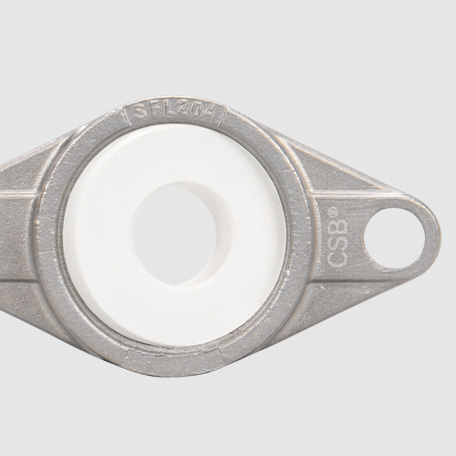

FDA grade material - EPB6

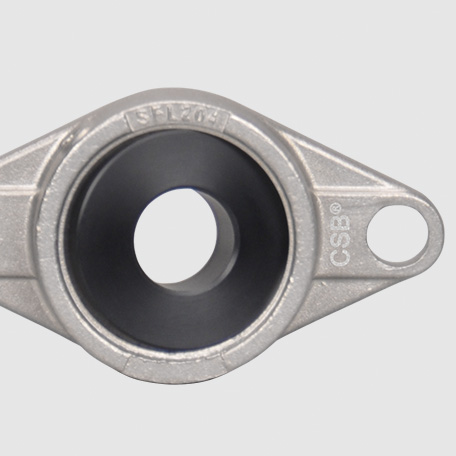

250℃ material - EPB10

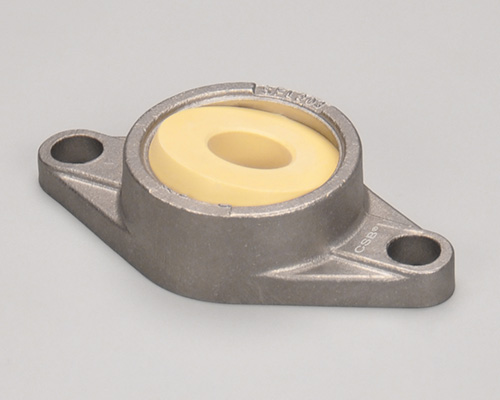

SFL Flange spherical bearings

Part no.:

d [mm]：

d-max. [mm]：

d-min. [mm]：

B [mm]：

A [mm]：

A1 [mm]：

A2 [mm]：

H [mm]：

N [mm]：

J [mm]：

L [mm]：

Max. pivot angle [°]：

Max. shaft [mm]：

Min. shaft [mm]：

*Lead time [wks]：

Download CAD

Dimensions

Part No.	Max. radial static compressive strength	Max. axial static tensile strength	Weight
Part No.	[KN]	[KN]	[g]
SFL204-20-17-EPB13	11.5	7.5	204
SFL205-25-17-EPB13	14.5	7.5	279
SFL206-30-19-EPB13	19.5	9.5	402
SFL207-35-20-EPB13	24.0	10.5	600
SFL208-40-21-EPB13	29.0	12.0	800

Part No.	Max. radial static compressive strength	Max. axial static tensile strength	Weight
Part No.	[KN]	[KN]	[g]
SFL204-20-17-EPB6	11.5	7.5	204
SFL205-25-17-EPB6	14.5	7.5	279
SFL206-30-19-EPB6	19.5	9.5	402

Part No.	Max. radial static compressive strength	Max. axial static tensile strength	Weight
Part No.	[KN]	[KN]	[g]
SFL204-20-17-EPB10	42.5	26.0	204
SFL205-25-17-EPB10	53.0	26.5	279
SFL206-30-19-EPB10	71.0	32.5	402
SFL207-35-20-EPB10	87.5	37.0	600
SFL208-40-21-EPB10	105.0	41.0	800
