Product Features

● High strength, dry operation
● Static load 420MPa,dynamic load 140MPa
● Working temperature -196/+200℃
● Resistant to dirt and dust
● Chemical resistance

General properties	Standard	Unit	CRH
Density	ISO1183	g/cm³	1.90
Max. water absorption	ISO62	%	0.1
Max. PV value	ITS026	N/mm²×m/s	1.5
Coefficient of friction	ITS025	µ	0.03-0.12
Long-term application temperature	ITS029	℃	+200
Short-term application temperature	ITS029	℃	+260
Lowest application temperature	ITS029	℃	-196
Max. Speed	ITS032	m/s	0.13
Compressive strength	ITS033	MPa	620
Max. static load	ITS027	MPa	420
Max. dynamic load	ITS028	MPa	140
Coefficient of thermal expansion	ISO11359	10^-6×K^-1	13
Color	-	-	Dark grey

Thickness=2.5mm

Thickness=5.0mm

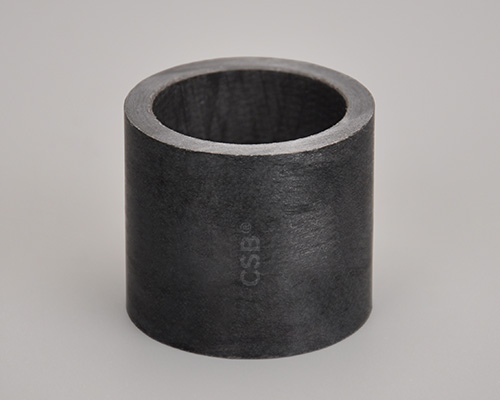

CRH Filament-wound bearings

Part no.:

d [mm]：

d-max. [mm]：

d-min. [mm]：

D [mm]：

d-max. [mm]：

d-min. [mm]：

L [mm]：

L-max. [mm]：

L-min. [mm]：

Max. shaft [mm]：

Min. shaft [mm]：

Max. housing [mm]：

Min. housing [mm]：

*Lead time [wks]：

Download CAD

Cart

Shopping

Dimensions

▊Material structure

Sliding layer: Continuous wound PTFE and high-strength fibers encapsulated in an internally lubricated, high-temperature and high-strength filled epoxy resin.

Backing: Continuous wound glass fiber encapsulated in a high-temperature and high-strength epoxy resin.

▊Typical features

Extreme load applications in oscillation and rotation

High temperature applications

Extremely Wear resistance

Strong corrosion resistance

Oil forbidden

▊CSB-FWB® installation method

FWB纤维缠绕轴承安装方式

▊Typical applications

Hydraulic cylinder pivots

Boom lifts

Cranes equipment

Construction machinery arm bushes

Port machinery

▊DURARUB®filament-wound bearings are suitable for high-load applications, these bearings can meet most of the possible chemical medium; Filament-wound bearings are developed for dry friction and high-load movement, but it is also available used in oil lubrication, grease lubrication or water environment; CSB recommends that the bearing be used in immersed water or oil, CRW and CRF bearings are very suitable.
▊ Find the resistance information from the right...

CSB® Bearing Material Chemical Resistance

Please select bearing material and medium...

CSB® bearing material chemical resistance data is a comparison test result of the CSB chemistry laboratory using laboratory specimens or similar chemicals at room temperature 23 ℃, without considering the impact of other temperatures and chemical medium mixtures on the chemical resistance of CSB® bearing materials ; Therefore, this data can only act as a reference. CSB® recommends that the chemical resistance of actual parts should be tested under application conditions and verify the suitability of the bearings.

DURARUB®CRH Filament-wound bearings 1464

Time 05-2025

Type PDF

No. CSB/CAT.070E

Size 166KB

1464

download

CSB-FWB®

DURARUB® Filament Wound Bearings Finder V2.1

view tools

DURARUB® Filament Wound Bearings Finder V2.1

▊DURARUB® Filament Wound Bearings Finder[V2.0] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations material data by entering parameters such as bearing load, speed, and temperature, and finally output material adaptation data.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the bearing must be tested again to verify whether it meets the actual use requirements.
▊DURARUB® Filament Wound Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.
