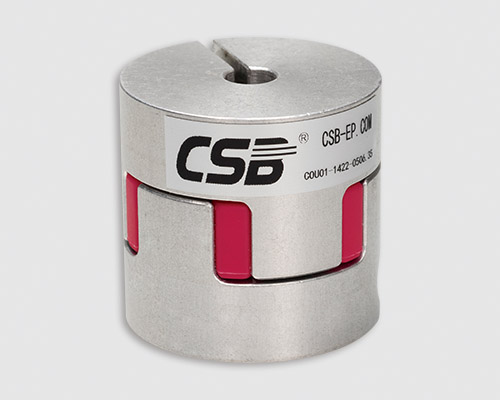

CSB® Flexible jaw couplings 3819
Polymer-tech SolutionsTM
● The coupling connects the drive shaft of the axis to the Motor, An elastic polymer insert in the centre of the coupling transfers the motor torque, This damping element compensates for radial and axial clearance.
● Standard versions from stock;
● Vibration dampening and easy fitting;
Small installation height between 6 and 12 mm;
Lightweight;
Numerous carriage options – also with pretension;
Maintenance-free, self lubricating;
Aluminum alloy material, Hard anodized surface of sliding; Maintenance-free linear slide guides providing virtually limitless design freedom; Lubrication-free and dirt-resistant...
Compact and low high design support;
Standard design support;
3 materials shaft: Hard anodized aluminum shaft, Hardchromed steel shaft, 304 Stainless steel shaft;
AS: Hard anodized aluminum shaft, the best shaft for LIN linear bearings; CS: Hard-chromed steel shaft, the effective-cost shaft; ES: 304 Stainless steel shaft, the best for chemical liquid; Shaft end processing service...
