Product Features

● Lead screw clamps for attachment to the position indicator and subsequent mounting on the lead screw

● Provides a mechanical brake to the lead screw

● Aluminum clamp with handle, anodized surface

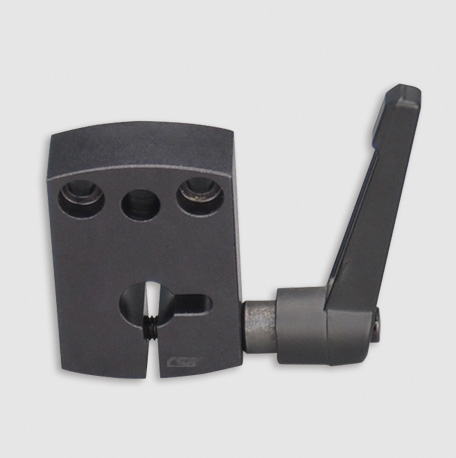

HK01

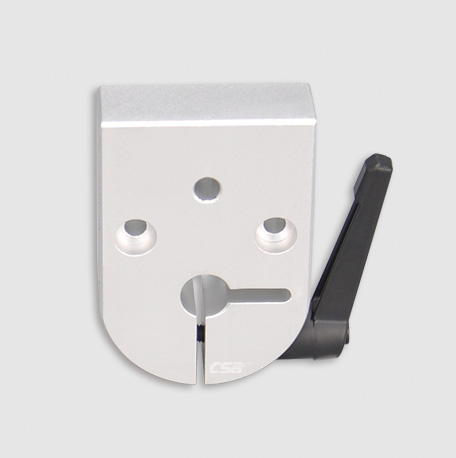

HK02

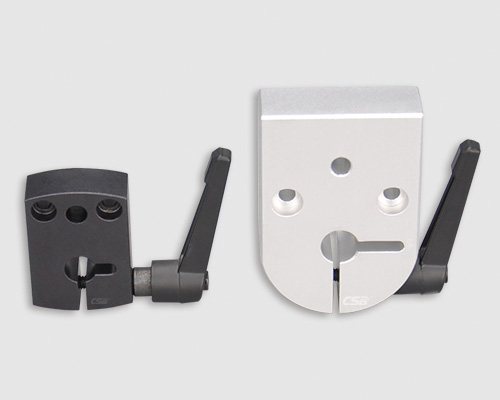

Lead screw clamp

Part no.:

d1 [mm]：

*Lead time [wks]：

Download CAD

Cart

Shopping

Dimensions

CSB® Lead screw clamp 920

Time 03-2024

Type PDF

No. CSB/CAT.064

Size 147KB

920

download
