● For loads up to 80N
● For precision requirements up to approx. 0.8mm
● At speeds up to max. 0.5m/s
● Ambient temperature: 0°C - 50°C
Polymer-tech SolutionsTM

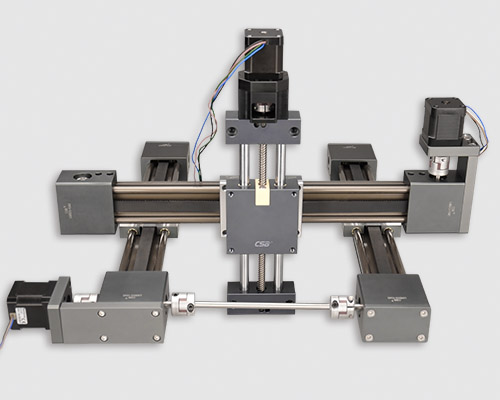

LMR linear robots allow you to automate manual work steps quickly and easily. The linear modules and linear robots use LIN linear liners and aluminum alloy guide rails with the hard anodized surface for a good friction pair, combined with stepper motors or servo motors to perform maintenance free operation; The robot can be equipped with a variety of tools (e.g., fixtures, suction cups, cameras, etc.) as needed, and the LMR linear robot is a modular system, so it is possible to configure the robot arm as needed at low cost, and to obtain a ready-to-use complete system.
● For loads up to 80N
● For precision requirements up to approx. 0.8mm
● At speeds up to max. 0.5m/s
● Ambient temperature: 0°C - 50°C
● For loads up to 10N
● For precision requirements up to approx. 1mm
● At speeds up to max. 0.5m/s
● Ambient temperature: 0°C - 50°C
● For loads up to 100N
● For precision requirements up to approx. 0.5mm
● At speeds up to max. 0.5m/s
● Ambient temperature: 0°C - 50°C
● MN2 liners for aluminum shafts
● Maintenance-free, dry-running
● Fast assembly and light weight
● Fitted standard liners EPB13
● Housing made of stainless steel 316Ti
● Good corrosion resistance
● For WR ES single and dual guide rails
● Fitted standard liners EPB13
● Maintenance-free, dry-running
● Fast assembly and light weight
The compact and easy assembly of the proximity switches; The plastic housing design makes the proximity switches, which can be used as limit, position or reference switches
The coupling connects the drive shaft of the axis to the Motor, An elastic polymer insert in the centre of the coupling transfers the motor torque, This damping element compensates for radial and axial clearance...
This motor cable directly exit from the housing, They are suitable for installation in an extra housing or for the machine equipment in cleaning the environment; Stepper motor driver is based on PID current control...
● Fast positioning of small loads
● Quiet operation and flat design
● Drive shaft on one or both sides
● Linear carriages available in different lengths
Small installation height between 6 and 12 mm;
Lightweight;
Numerous carriage options – also with pretension;
Maintenance-free, self lubricating;
The dimensions are the same as the ball bearing guides；Made of hard anodized surface of aluminum alloy；Lightweight design; Resistant dust; Quiet operation...
Standard anti-wear carriages with clearance adjustment；Very suitable for high speed applications, the speed up to 10m/s；Smooth moving, Driving force is about 10% of sliding carriages...
Aluminum alloy material, Hard anodized surface of sliding; Maintenance-free linear slide guides providing virtually limitless design freedom; Lubrication-free and dirt-resistant...
Aluminum alloy material, Hard anodized surface of sliding; Maintenance-free linear slide guides providing virtually limitless design freedom; Lubrication-free and dirt-resistant...
Standard design;
Various materials for shaft and lead screw;
Maintenance-free and optionally corrosion resistant;
Temperature resistant up to +60 ℃;
