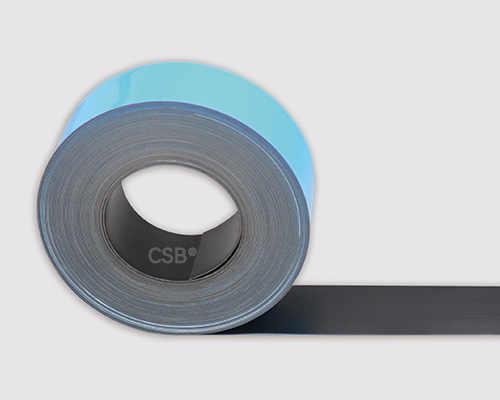

Polymer-tech SolutionsTM
● Low coefficients of friction
● Available underwater
● UV aging resistance
● Easy to cut
● Continuous working temperature: -20/+80℃
▊Technical data
| Material | Dry friction coefficient [u] | Max. static load [Mpa] | Max. dynamic load [Mpa] | Max. PV [N/mm2xm/s] | Max. Speed [m/s] | Operation temperature* [℃] | ||
| Continuous | Intermittent | Long-term | Short-term | |||||
| TRIBOTAPER®81 | 0.05-0.15 | 15 | 5 | 0.25 | 0.3 | 0.5 | -20/+80 | -50/+100 |
*Operation temperature of standard tape with adhesive back
Please contact us for the operation temperature of the tape without adhesive back
| Medium | TRIBOTAPE® 81 Chemical resistance |
| Alcohol | Resistant |
| Hydrocarbons | Resistant |
| Greases. oils | Resistant |
| Fuels | Conditionally resistant |
| Diluted acids | Resistant |
| Strong acids | Conditionally resistant |
| Diluted alkalis | Resistant |
| Strong alkalis | Conditionally resistant |
● Continuous working temperature: -40/+110℃
● Maintenance-free dry operation
● Low friction coefficient
● Suitable for working in humid environment
● Continuous working temperature: -40/+110℃
● Maintenance-free, self-lubricated
● Suitable for operation in dusty environment
● Suitable for working in humid environment
● Continuous working temperature: -50/+90℃
● Maintenance-free dry operation
● Small wear off amount against various shaft materials
● Lower friction
● Continuous working temperature: -100/+80℃
● Maintenance-free, self-lubricated
● Low friction, anti-wear
● Impact resistance, low noise
● Continuous working temperature: -40/+90℃
● Maintenance-free, self-lubricated
● Suitable for most application
● Suitable for medium and high load operation
● Continuous working temperature: -40/+110℃
● Maintenance-free dry operation
● Low friction coefficient
● Suitable for working in humid environment
● Continuous working temperature: -40/+110℃
● Maintenance-free, self-lubricated
● Suitable for operation in dusty environment
● Suitable for working in humid environment
● Continuous working temperature: -50/+90℃
● Maintenance-free, self-lubricated
● Low friction coefficient
● Long service time
● Continuous working temperature: -50/+90℃
● Maintenance-free dry operation
● Small wear off amount against various shaft materials
● Lower friction
● Continuous working temperature: -100/+250℃
● Maintenance-free, self-lubricated
● Good wear resistance with long service life
● Good chemical resistance
● Continuous working temperature: -40/+80℃
● Maintenance-free, self-lubricated
● Low friction coefficient
● FDA grade
● Continuous working temperature: -100/+250℃
● Suitable for high load and lovo speed operation
● High load capacity at higher temperature
● Good chemical resistance
● Continuous working temperature: -40/+80℃
● Maintenance-free, self-lubricated
● Special lubricant and wear resistant
● Low friction coefficient
● Continuous working temperature: -100/+80℃
● Maintenance-free, self-lubricated
● Low friction, anti-wear
● Impact resistance, low noise
● Continuous working temperature: -40/+90℃
● Maintenance-free, self-lubricated
● Suitable for most application
● Suitable for medium and high load operation
