Product Features

● Continuous working temperature: -40/+80℃

● Maintenance-free, self-lubricated

● Low friction coefﬁcient

● Good wear resistant

● FDA grade

Material properties	Standard	Unit	CSB-EPB6
General properties
Color	-	-	White
Density	ISO1183	g/cm³	1.45
Max. moisture absorption, 50%RH	ISO62	%	0.3
Max. water absorption	ISO62	%	1.2
Coefficient of sliding friction(steel)	ITS025	µ	0.05-0.18
Max. PV value	ITS026	N/mm²×m/s	0.30
Mechanical properties
Flexural modulus	ISO178	MPa	2300
Flexural strength	ISO178	MPa	60
Max. static load	ITS027	MPa	35
Max. dynamic load	ITS028	MPa	14
Shore hardness	ISO868	D	74
Physical and thermal properties
Long-term application temperature	ITS029	℃	+80
Short-term application temperature	ITS029	℃	+120
Lowest application temperature	ITS029	℃	-40
Thermal conductivity	ISO22007	W/m/K	0.20
Coefficient of thermal expansion	ISO11359	K^-1×10^-5	10
Flammability	UL94	Class	HB
Electrical properties
Volume resistance	IEC60093	Ω·cm	>10¹³
Surface resistance	IEC60093	Ω	>10¹²

*ITS：CSB company's internal test standards.

**Test temperatures are 23℃ unless otherwise stated.

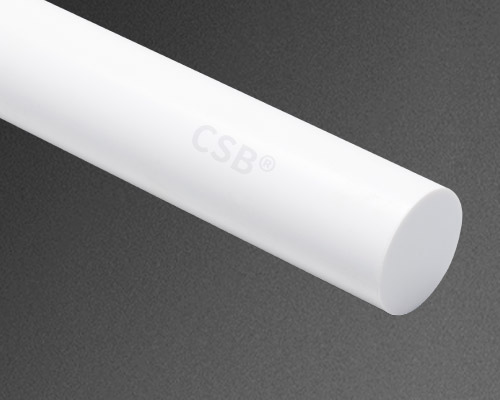

EPB6 Self-lubricating plastic rods

Part no.:

Diameter [mm]：

Length [mm]：

*Lead time [wks]：

Download CAD

Cart

Shopping

Dimensions

Medium	EPB6 bearings resistance
Alcohol	Resistant
Hydrocarbons	Resistant
Greases. oils	Resistant
Fuels	Resistant
Diluted acids	Conditionally resistant
Strong acids	Not resistant
Diluted alkalis	Resistant
Strong alkalis	Conditionally resistant

CSB® Bearing Material Chemical Resistance

Please select bearing material and medium...

CSB® bearing material chemical resistance data is a comparison test result of the CSB chemistry laboratory using laboratory specimens or similar chemicals at room temperature 23 ℃, without considering the impact of other temperatures and chemical medium mixtures on the chemical resistance of CSB® bearing materials ; Therefore, this data can only act as a reference. CSB® recommends that the chemical resistance of actual parts should be tested under application conditions and verify the suitability of the bearings.
