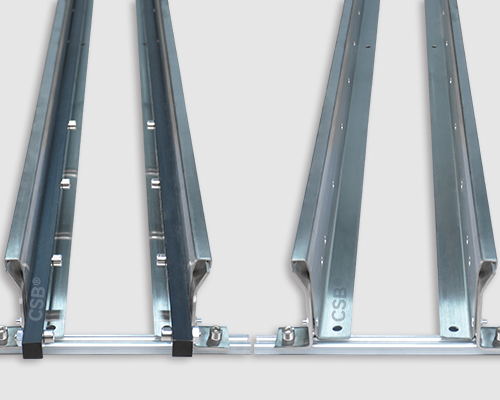

Steel guide troughs

Product Features

● very stable and rugged for heavy machinery

● Easy installation, fixed directly on the ground or the C-profile

● Two piece design, adjustable to the width according the cable chains

● Available in galvanised steel and stainless steel

● Available with plastic glide bar in guide trough



Steel guide troughs
Part no.:
Cable chain:
B [mm]:
d1 [mm]:
A1 [mm]:
A2 [mm]:
□ H1 [mm]:
H2 [mm]:
HRa [mm]:
*Lead time [wks]:
Dimensions

Steel guide troughs

Part No.

Trough side part

Clamping bracket

Part No.

Quantity
[pcs/set]

Weight
[kg/set]

Part No.

Quantity
[pcs/set]

Weight
[kg/set]

GT035070.2000.GSSP035070.2000.GS23.75CL035070.GS40.12
GT050100.2000.GSSP050100.2000.GS24.95CL050100.GS40.16
GT054130.2000.GSSP054130.2000.GS25.90CL054130.GS40.20
GT064130.2000.GSSP064130.2000.GS25.90CL064130.GS40.20
GT084170.2000.GSSP084170.2000.GS27.65CL084170.GS40.25
GT108220.2000.GSSP108220.2000.GS211.45CL108220.GS40.31


Part No.

Glide bar

C-profile

Part No.

Quantity
[pcs/set]

Weight
[kg/set]

Part No.

Quantity
[pcs/set]

GT035070.2000.GSGB020.200020.75CB.HD.000.GS2
GT050100.2000.GSGB020.200020.75CB.HD.000.GS2
GT054130.2000.GSGB020.200020.75CB.HD.000.GS2
GT064130.2000.GSGB030.200021.70CB.HD.000.GS2
GT084170.2000.GSGB030.200021.70CB.HD.000.GS2
GT108220.2000.GSGB030.200021.70CB.HD.000.GS2

*CB.HD.000.GS:“000”= Bi+125

*The guide trough length also available according to the installation requirement

Three layer cable clamp

● Can be integrated with C03 series connectors and C-profiles

● A compact modular design of easy installation, less space, cost-effective

Double layer cable clamp

● Can be integrated with C03 series connectors and C-profiles

● A compact modular design of easy installation, less space, cost-effective

Single layer cable clamp

● Can be integrated with C03 series connectors and C-profiles

● A compact modular design of easy installation, less space, cost-effective

Installation screw and nut

Part No.

Clamping bracket
Per section

Glide bar
Per section

C-profile
Per section

GT035070.2000.GS

  Countersunk-head screw

  M6×14, 4pcs

  Hexagon nut

  M6, 4pcs

  Hexagon-head screw

  M10×35, 22pcs

  Hexagon nut

  M10, 22pcs

  Hexagon-head screw

  M10×16, 2pcs

  T-nut

  M10, 2pcs

GT050100.2000.GS
GT054130.2000.GS
GT064130.2000.GS

  Countersunk-head screw

  M6×14, 4pcs

  Hexagon nut

  M6, 4pcs

  Hexagon-head screw

  M10×45, 22pcs

  Hexagon nut

  M10, 22pcs

  Hexagon-head screw

  M10×16, 2pcs

  T-nut

  M10, 2pcs

GT084170.2000.GS
GT108220.2000.GS
